71

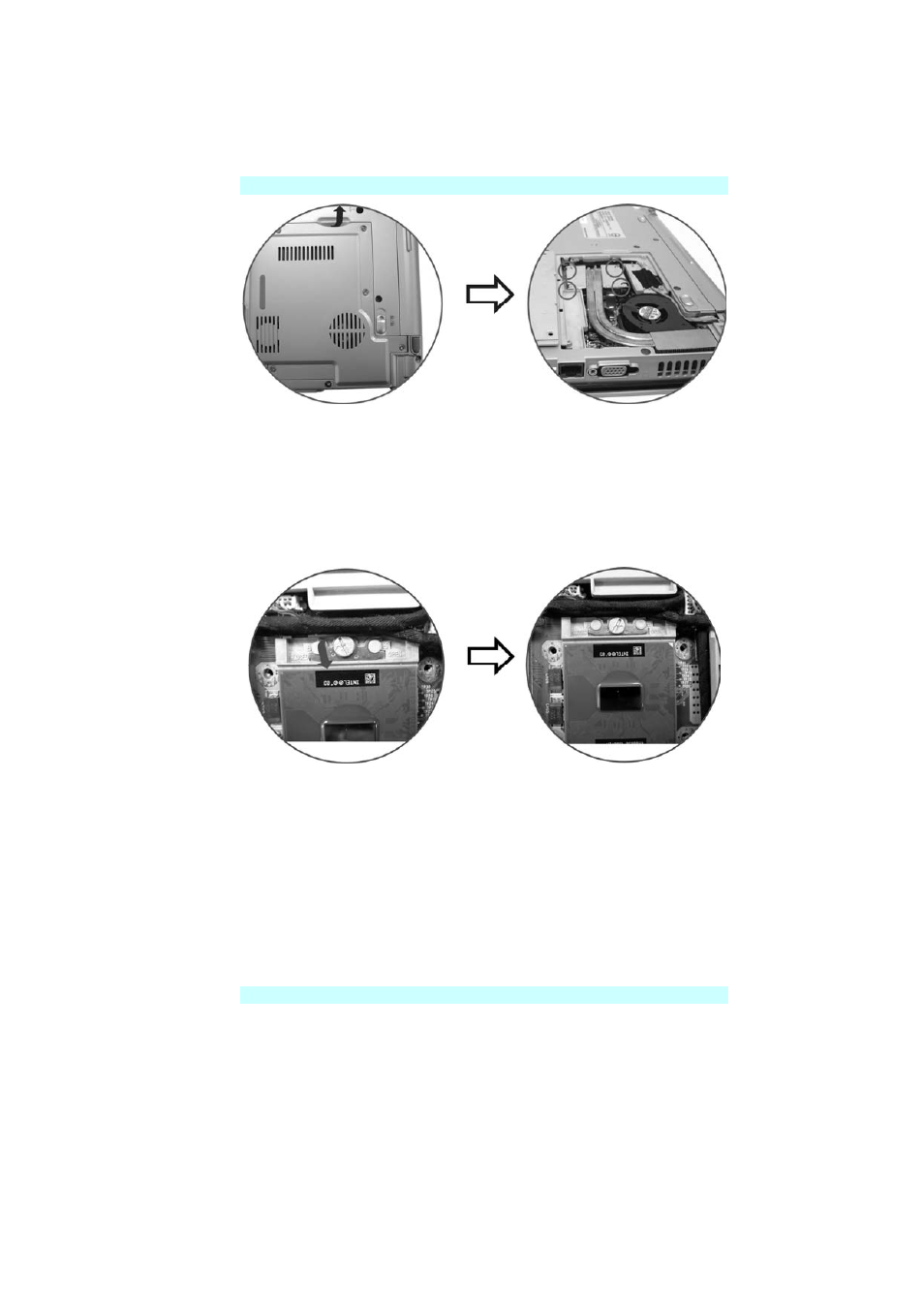

¾ ¾ Turn off the computer and disconnect the AC adapter and all
peripherals. From the rear side of your notebook, locate the CPU
compartment and unscrew the 5 screws that is attached to the
CPU compartment door
¾ ¾ Lift up the compartment door by using your index finger to lift
the cover from the latch.
¾ ¾ Remove the 4 screws that are attached to the heatsink on top of
the CPU.
¾ ¾ Use a screw to turn the screw that is attached to the CPU in
counterclockwise direction as shown on the illustration.
¾ ¾ After the screw is loosen you can lift up the CPU to finish the
procedures.
