Instruction / Installation Sheet

Recessed Low Voltage Media Plate

with 20 Amp Duplex Receptacle

Part # 45-0032-WH CONTINUED

Installation Instructions:

Page 2 of 3

1 /1 /13

888.223.7977

770.662.8205

www.DataCommElectronics.com

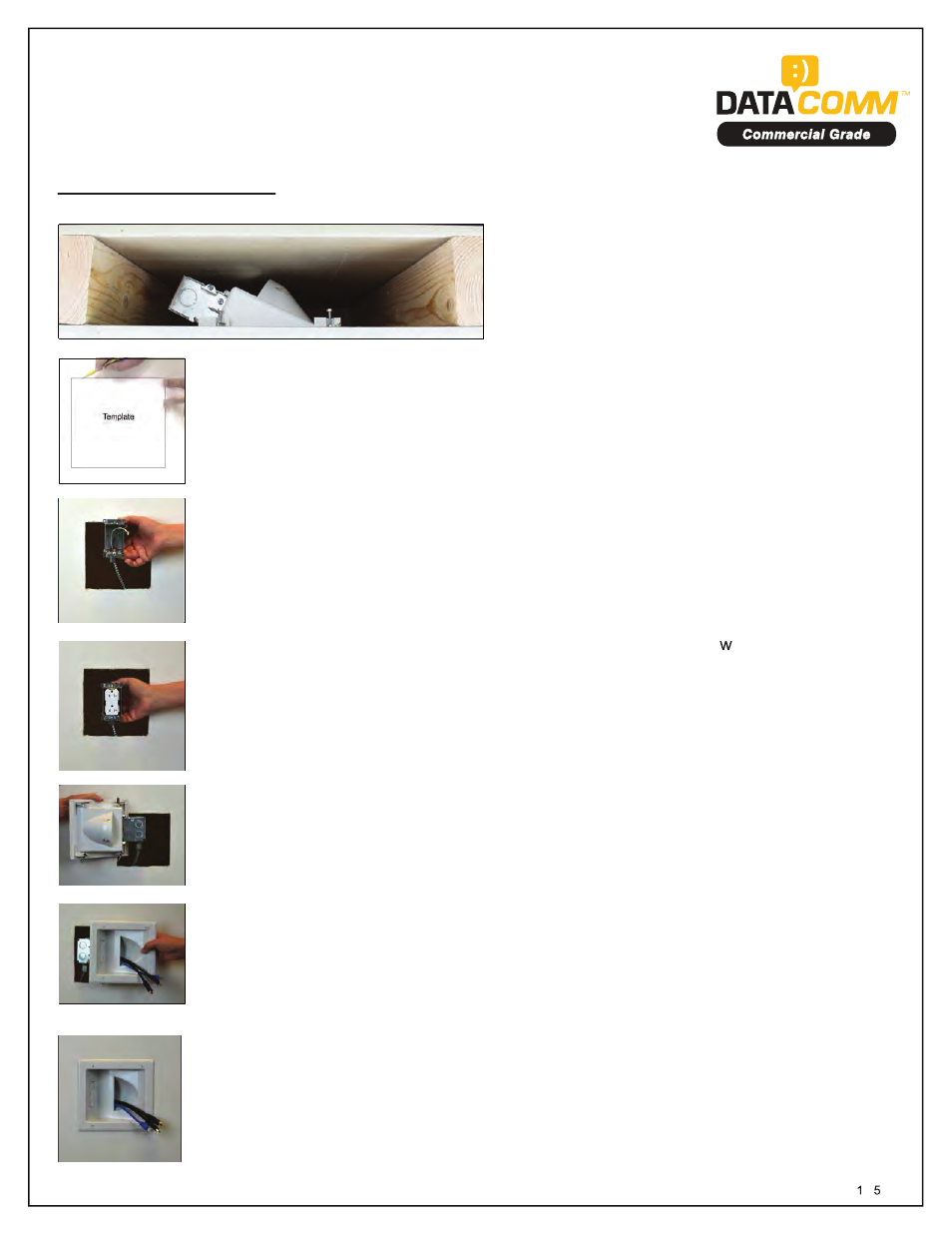

Figure 1:

Top view - shows needed space between the

drywall and the studs. Receptacle side of the Media

Plate should be 3” from the stud but no more than 5”

(review picture carefully).

Figure 2:

Cut out the supplied template on page 3 of this instruction sheet. Place the template on

the wall in the desired install location. Using your pen or pencial, trace the template on the

wall. Using a drywall saw or utility knife, cut a hole in the drywall the size of the template.

See Figure 1 before tracing your opening. Remember, this wall plate is designed to be

installed between the studs. It cannot be installed on top of a stud.

Figure 3:

Run the source of power to the included steel electrical box. Be sure to follow all local

electrical codes.

Figure 4:

Connect the suplied 20 Amp Duplex Receptacle to a piece of 12/2 / ground UL

approved electrical building wire that you have pulled from a power source. Strip off

approximately 3 inches of the outer jacket of the wire. Be careful not to cut the jacket of

the inner wires. Connect the hot line (black) wire to the brass colored terminal screw and

neutral (white) wire to the silver colored terminal screw. Be sure to connect the grounding

(green) or bare grounding wire to the green colored terminal screw. Once you have wired

the 20 Amp Duplex Receptacle, screw it into the Steel Electrical Box until the receptacle

is firmly secured.

Figure 5:

Use the four provided screws to secure the Steel Electrical Box and Receptacle to the

mounting studs on the backside of the Recessed Low Voltage Media Plate.

Figure 6:

Important: Before installing the Media Plate into the template opening, make sure to pull

your low voltage cables through the low voltage cable opening.

After low voltage pass through: Starting with the receptacle side of the Media Plate

slowly slide it into the opening. Swing the opposite side of the plate into position until the

entire Media Plate is flush with the wall. Now screw down the screws with wings; these

wings fasten tightly against the back of the drywall.

Figure 7:

Your new Recessed Low Voltage Media Plate with 20 Amp Duplex Receptacle is now

installed and ready for the TV mount to be installed. Install your TV mount bracket per the

TV bracket manufacturer’s instructions.

Fig. 3

Fig. 4

Fig. 5

Fig. 6

Fig. 7
