Sometimes, the LEDs flash either of the colors during boot, POST, or other diagnostic tests. This is
normal; it does not indicate a problem unless the LEDs do not indicate a healthy state after all boot
processes and diagnostic tests are complete.
Brocade 6505 LEDs
The Brocade 6505 has the following LEDs:
• One system status LED (upper) on the left side.
• One power status LED (lower) on the left side.
• Two Ethernet port LEDs (one amber, one green).
• One bicolor (green and amber) port status LED for each port on the switch. These LEDs are
arrayed above each pair of Fibre Channel ports.
• One power supply and fan assembly LED above the AC power switch on each power supply on the
non-port side of the switch.
LED locations
The following figure shows the LEd locations on the port side of the Brocade 6505. The port status
LEDs for the FC ports are arranged left and right to correspond to the upper and lower ports
respectively in each pair. Refer to
Port side of the Brocade 6505 on page 15 for the locations of the FC
ports.

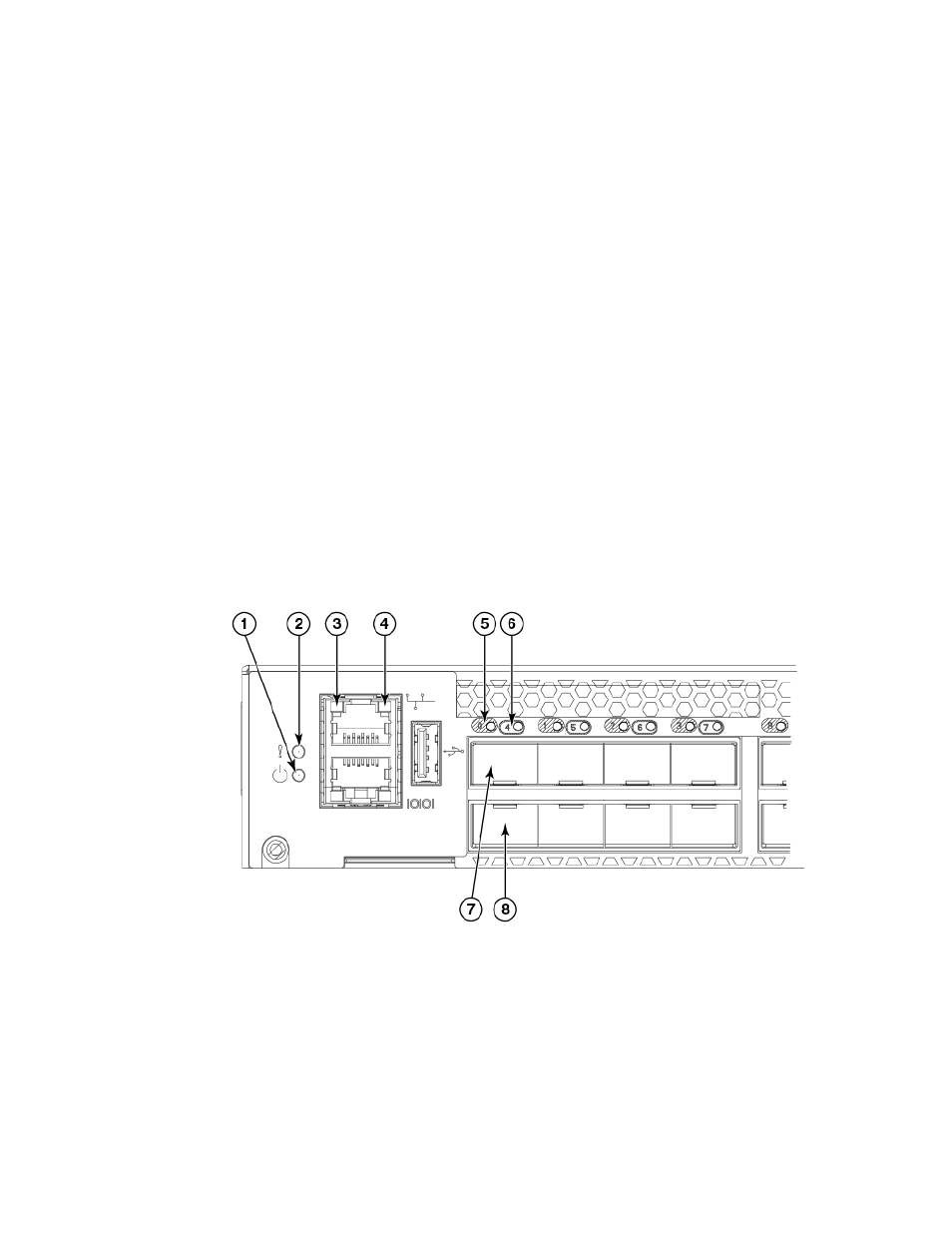

FIGURE 6 LEDs on the port side of Brocade 6505
1. System power LED (green)
2. System status LED green/amber)
3. Ethernet port activity LED (amber)
4. Ethernet port speed LED (green)
5. FC port status LED (port 0)
6. FC port status LED (port 4)
7. FC port 0
8. FC port 4
