Universal Two-Post Rack Kit Installation Procedure

9 of 12

53-1002943-01

“Attaching rear brackets to the rack”

“Attaching rear brackets to the switch”

Attaching front brackets to the switch

Complete the following steps to attach the front brackets to the switch.

1. Position the right front bracket with the flat side against the right side of the switch as shown in

Figure 6

.

2. Insert four 8-32 x 5/16-in. flathead screws through the top and bottom holes of the vertically aligned series of

holes in the bracket and then into the pair of holes on the side of the switch.

3. Repeat

step 1

and

step 2

to attach the left front bracket to the left side of the switch.

4. Tighten all 8-32 x 5/16-in. screws to a torque of 15 in-lbs. (17 cm-kgs).

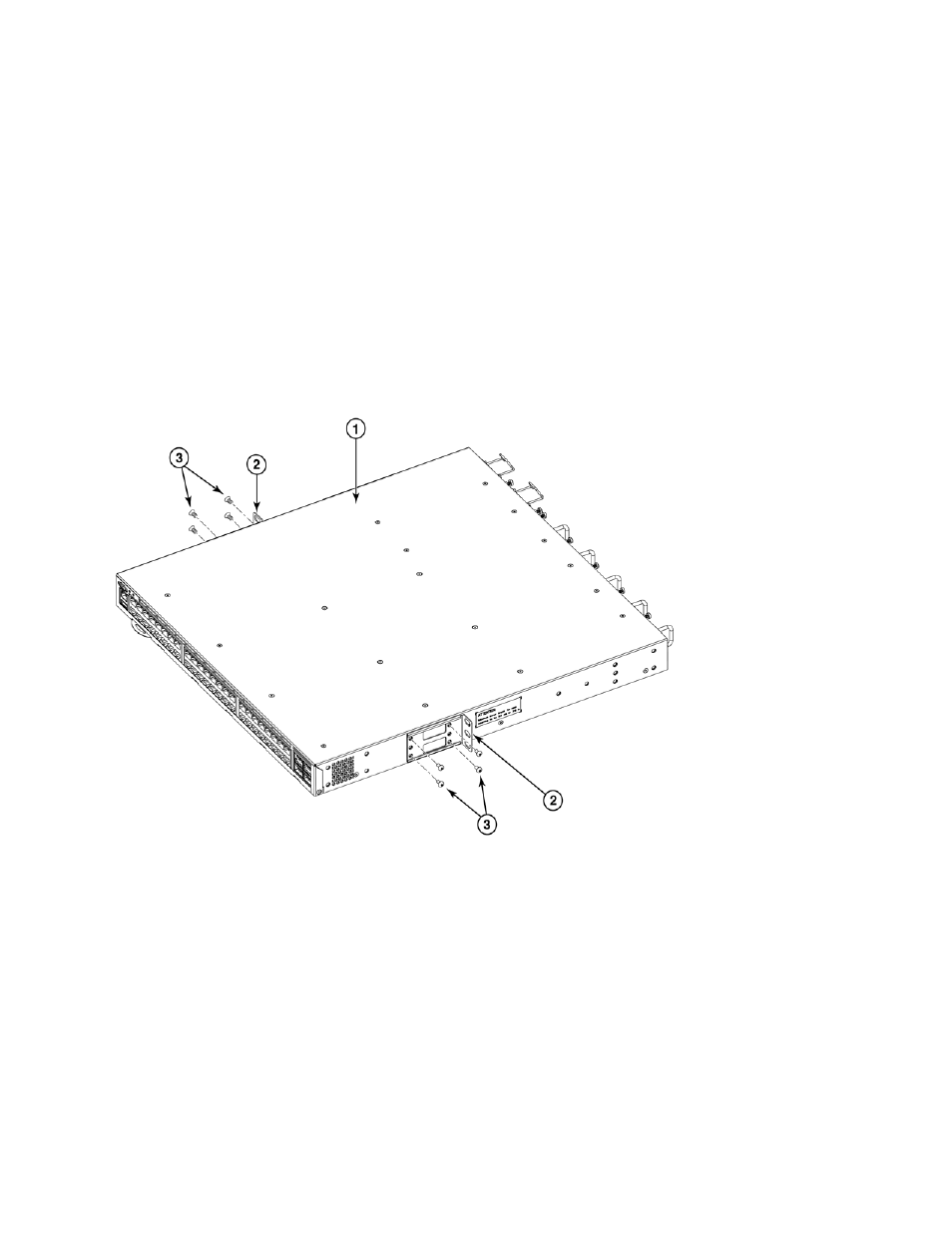

FIGURE 6

Attaching the front brackets

1

Switch

3

Screws, 8-32 x 5/16-in., flathead Phillips

2

Front brackets, right and left
