Attaching rear brackets to the switch
Complete the following steps to attach the rear brackets to the switch.
1. Align the right rear bracket to the right rear of the switch and using four 8-32 x 5/16-in. panhead screws, attach
the bracket to the switch as shown in Figure 9 . Be sure to insert the screws through the upper and lower slots in
the bracket.
2. Align the left rear bracket to the left rear of the switch and using four 8-32 x 5/16-in. panhead screws, attach
the bracket to the switch. Again, use the upper and lower slots in the bracket.
3. Tighten all the 8-32 x 5/16-in. screws to a torque of 15 in-lbs. (17 cm-kgs).

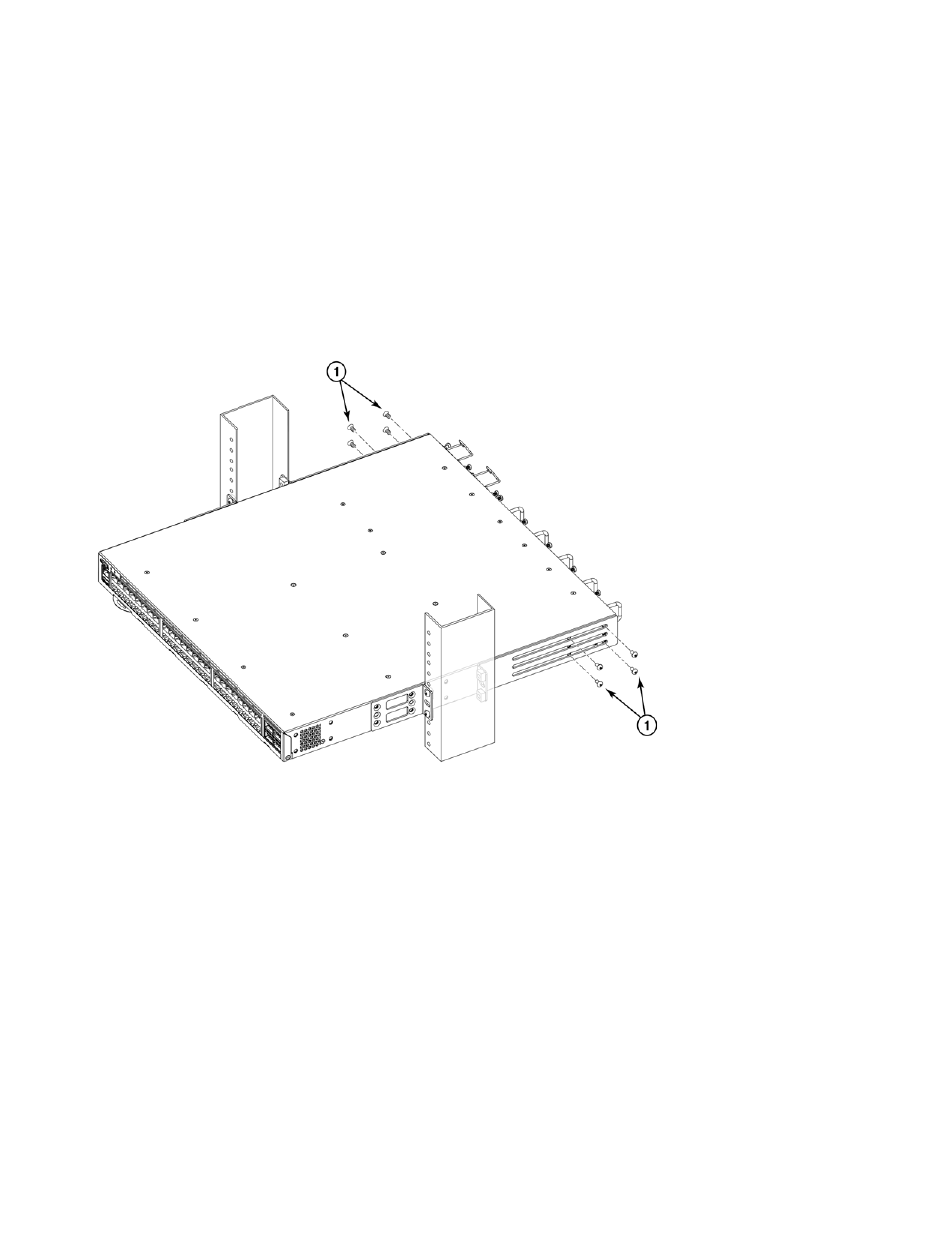

FIGURE 9 Attaching the rear bracket to the switch
1 Screws, 8-32 x 5/16-in., panhead Phillips
