Attaching rear brackets to the rack
Complete the following steps to attach the rear brackets to the rack.
1. Select the proper length bracket for your post width. If your posts are three to five inches wide, use the brackets
marked 3-5 INCH. If your posts are five to six inches wide, use the brackets marked 5-6 INCH.
2. Position the right rear bracket in the right rear of the switch as shown in Figure 8 . Whether you are using the 3-5
inch or 5-6 inch bracket, the rear end of the bracket will be flush with the back of the switch.
3. Attach the brackets to the right rack upright using two 10-32 x 5/8-in. screws and two retainer nuts.
4. Repeat step 2 and step 3 to attach the left rear bracket to the left rack upright.
5. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lbs. (29 cm-kgs).

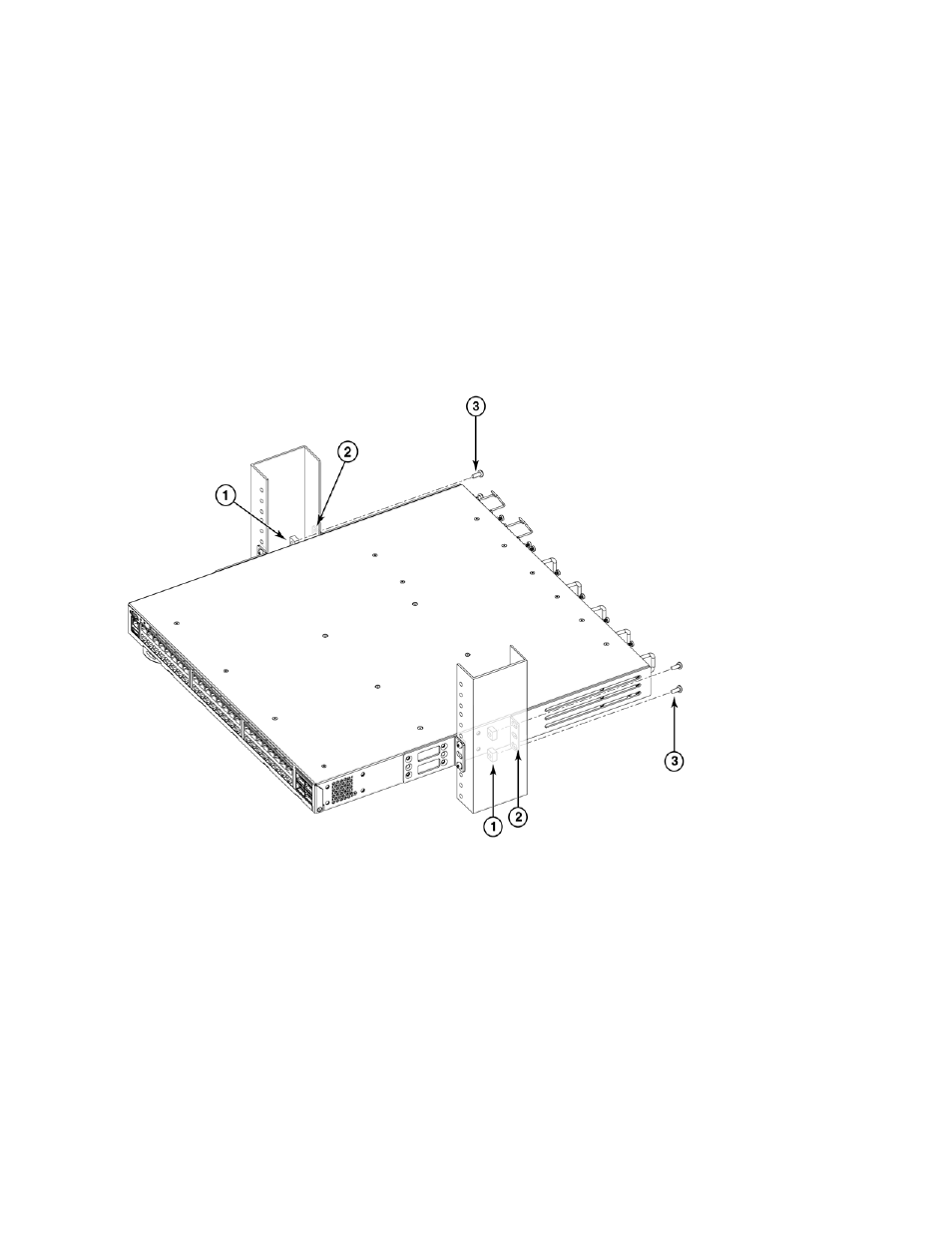

FIGURE 8 Attaching the rear brackets to a rack
1 Retainer nuts, 10-32 3 Screws, 10-32 x 5/8-in., panhead Phillips
2 Rear brackets, right (left side similar)
