4 of 12

Universal Two-Post Rack Kit Installation Procedure

53-1002943-01

Tool requirements and parts list

The following items are required to install a switch using the universal two-post rack kit:

Clamps or other means of temporarily supporting the switch in the rack.

Phillips #2 torque screwdriver

ATTENTION

Use the screws specified for use with the switch. Longer screws can damage the switch.

Ensure that the items listed and illustrated in

Figure 1

are included in the kit.

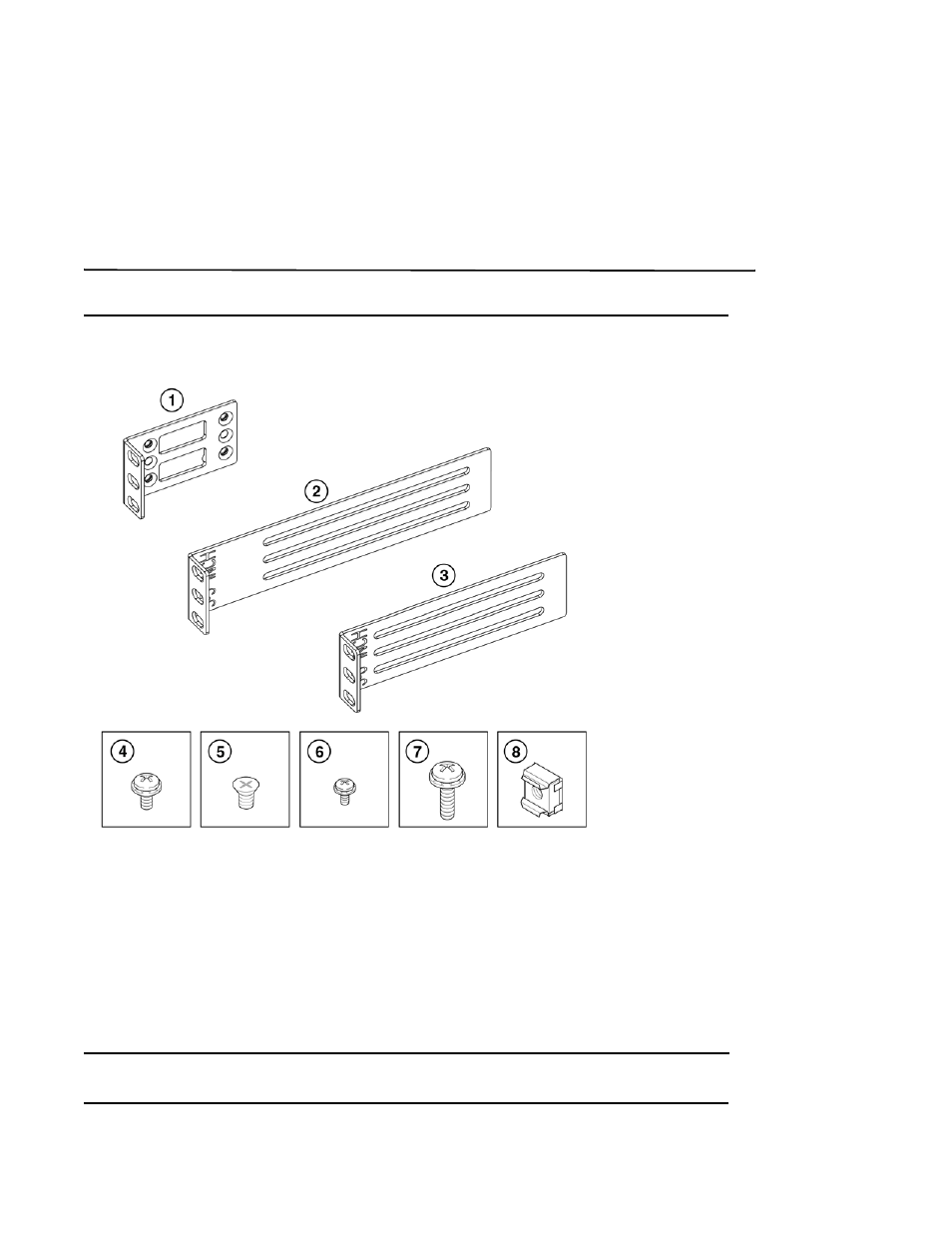

FIGURE 1

Items in the universal two-post rack kit

Installation procedure for flush mounting

NOTE

The illustrations for this procedure show a two-post rack with narrow posts (3- to 5-inch) as an example.

1

Front brackets (2)

5

Screw, 8-32 x 5/16-in., flathead Phillips (16)

2

Rear brackets, 3-5 inch post (2)

6

Screw, 6-32 x 1/4-in., panhead Phillips (8)

3

Rear brackets, 5-6 inch post (2)

7

Screw, 10-32 x 5/8-in., panhead Phillips (8)

4

Screw, 8-32 x 5/16-in., panhead Phillips (8)

8

Retainer nut, 10-32 (8)
