Brocade VDX 8770-4 Two-Post Flush and Mid-Mount Rack Kit Installation Procedure 9 of 10
Publication Number: 53-1002670-01
Unpacking and installing the flush mount rack hardware
1. Unpack the rack kit.
2. Align the holes in the saddle with the holes on the mounting posts and attach the saddle using six #10-32 pan
head screws that were provided in the kit. The saddle attaches to the rear of the posts. Refer to Figure 7 .
ATTENTION
Screws are inserted from the rear of the rack.

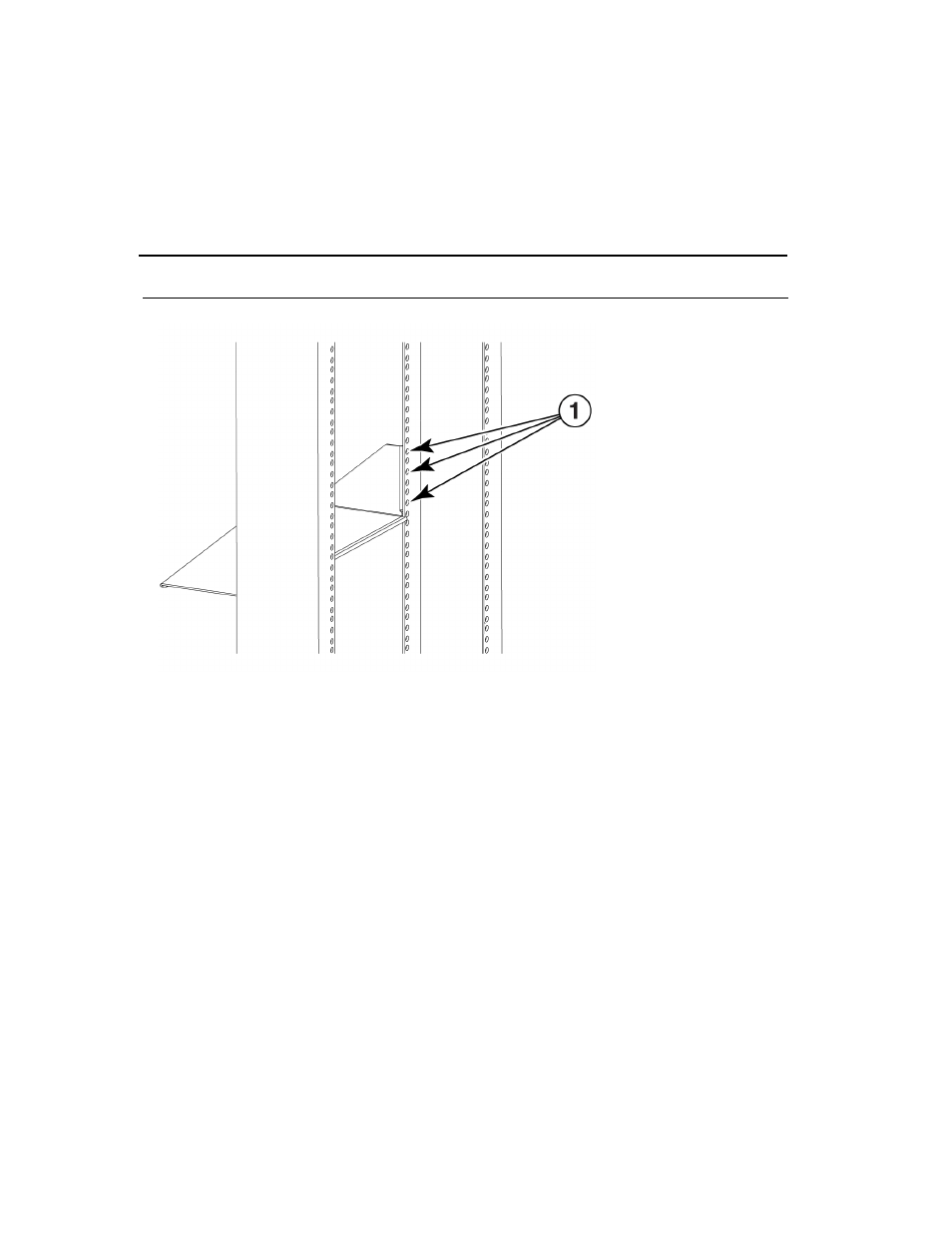

FIGURE 7 Saddle installed in the rack (screws inserted from the rear of the rack)
3. Maneuver the lift with the switch in front of the saddle and adjust the height to match the saddle.
4. Slide the switch onto the saddle and into the rack. Refer to Figure 8 .
1 Screw locations for mounting saddle (both sides similar) - screw must be inserted from the rear of the rack
