Figure 8 – Brocade VDX 8770-4 Two-Post Flush and Mid-Mount Rack Kit Installation Procedure User Manual
Page 10
10 of 10
Brocade VDX 8770-4 Two-Post Flush and Mid-Mount Rack Kit Installation Procedure
Publication Number: 53-1002670-01
FIGURE 8

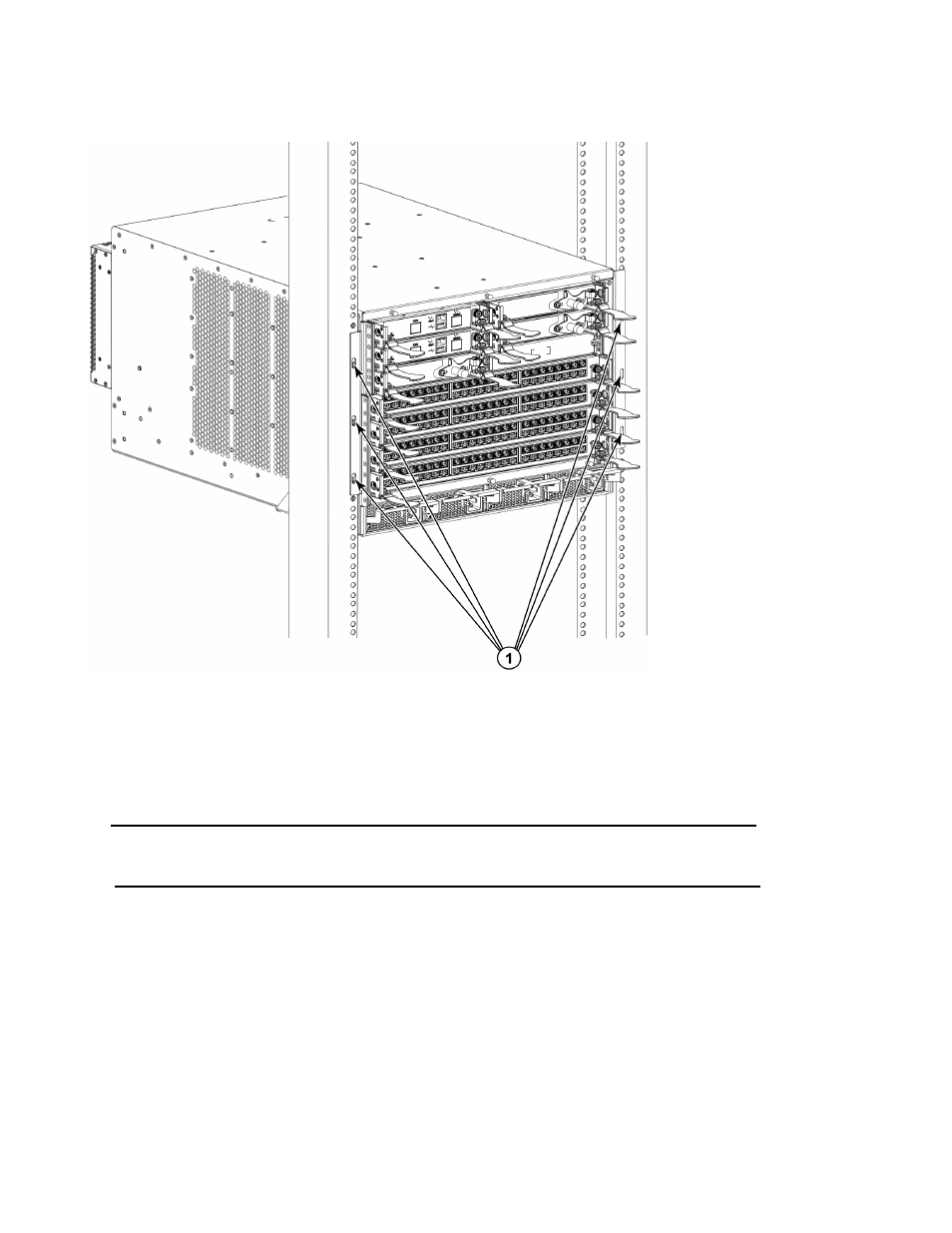

VDX 8770-4 flush installed in a rack
5. Secure the switch to the rack using six 10-32 screws with square-cone washers that were supplied with the
switch, three screws for each mounting bracket attached to the switch. Tighten the screws to 32 in-lb (36.86
cm-kg)
NOTE
Screws, clip nuts, and retainer nuts for mounting the switch to the equipment rack are located in the switch
hardware accessory kit.
1
Screw locations for mounting switch
