Brocade VDX 8770-4 Two-Post Flush and Mid-Mount Rack Kit Installation Procedure - Manual (Page 7)

Brocade VDX 8770-4 Two-Post Flush and Mid-Mount Rack Kit Installation Procedure 7 of 10
Publication Number: 53-1002670-01
CAUTION
Use safe lifting practices when moving the product. (C015)
6. If applicable, lock the wheels of the lift.
7. Gently slide the switch onto the saddle, ensuring that it remains supported during the transfer.
8. Secure the switch to the rack using six 10-32 screws with square-cone washers, three screws for each mounting
bracket attached to the switch. See Figure 5 . Tighten the screws to 32 in-lb (36.86 cm-kg)
NOTE
Screws, clip nuts, and retainer nuts for mounting the switch to the equipment rack are located in the switch
hardware accessory kit.

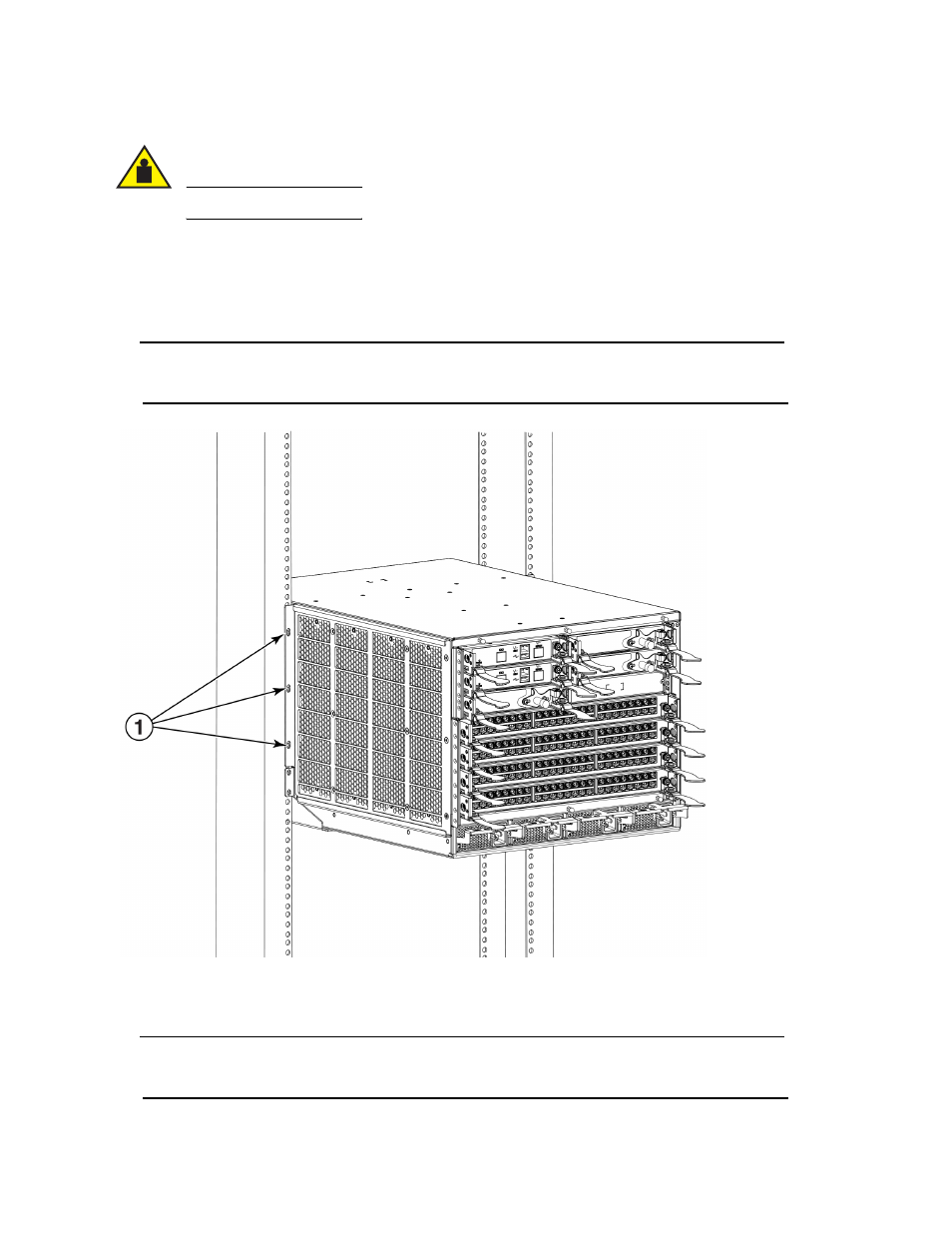

FIGURE 5 VDX 8770-4 installed in the rack with the mid-mount saddle
NOTE
For rails with round holes, use the clip nuts on the rack rails for securing 10-32 screws. For rails with square
holes, use the retainer nuts (see
Figure 1 on page 4 ). Also refer to Figure 3 on page 6 .
1 Screw locations (opposite side similar)
