6 of 10 Brocade VDX 8770-4 Two-Post Flush and Mid-Mount Rack Kit Installation Procedure
Publication Number: 53-1002670-01

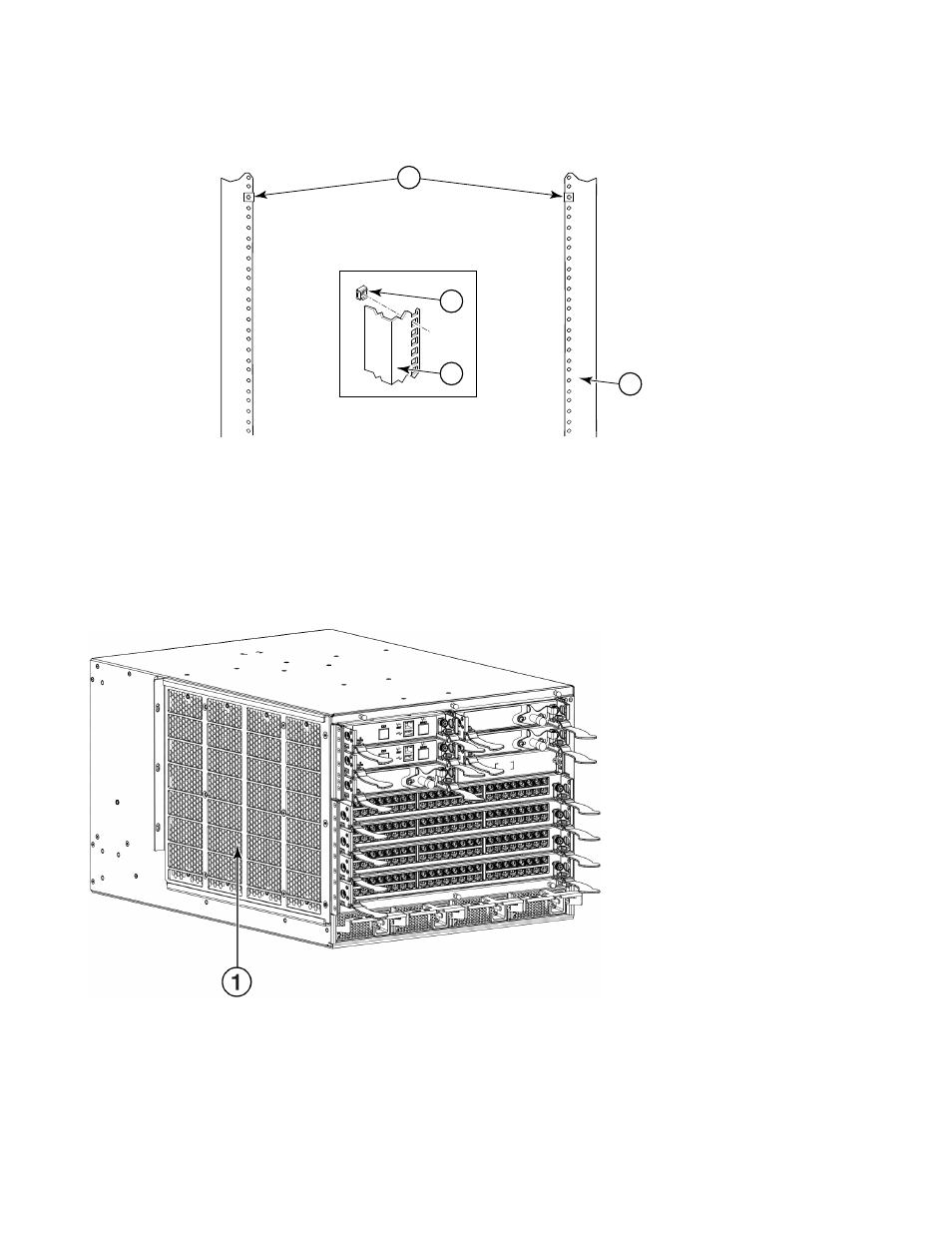

FIGURE 3 Using clip nuts and retainer nuts to secure screws to rack rails
4. Remove any existing rack-mount brackets from the switch, and install the new Telco mid-mount brackets from
the rack kit. See Figure 4 below.
FIGURE 4 Telco mid-mount brackets installed on the VDX 8770-4
5. Adjust the lift to raise the switch to the correct level.
1 Clip nuts (for rails with round holes) 3 Rail
2 Retainer nuts (for rails with square holes)
1 Left mid-mount mounting bracket (right bracket similar)
1
2
3
3
