Brocade VDX 8770-8 Four-Post Flush and Recessed Mount Rack Kit Installation Procedure
Publication Number: 53-1002667-01

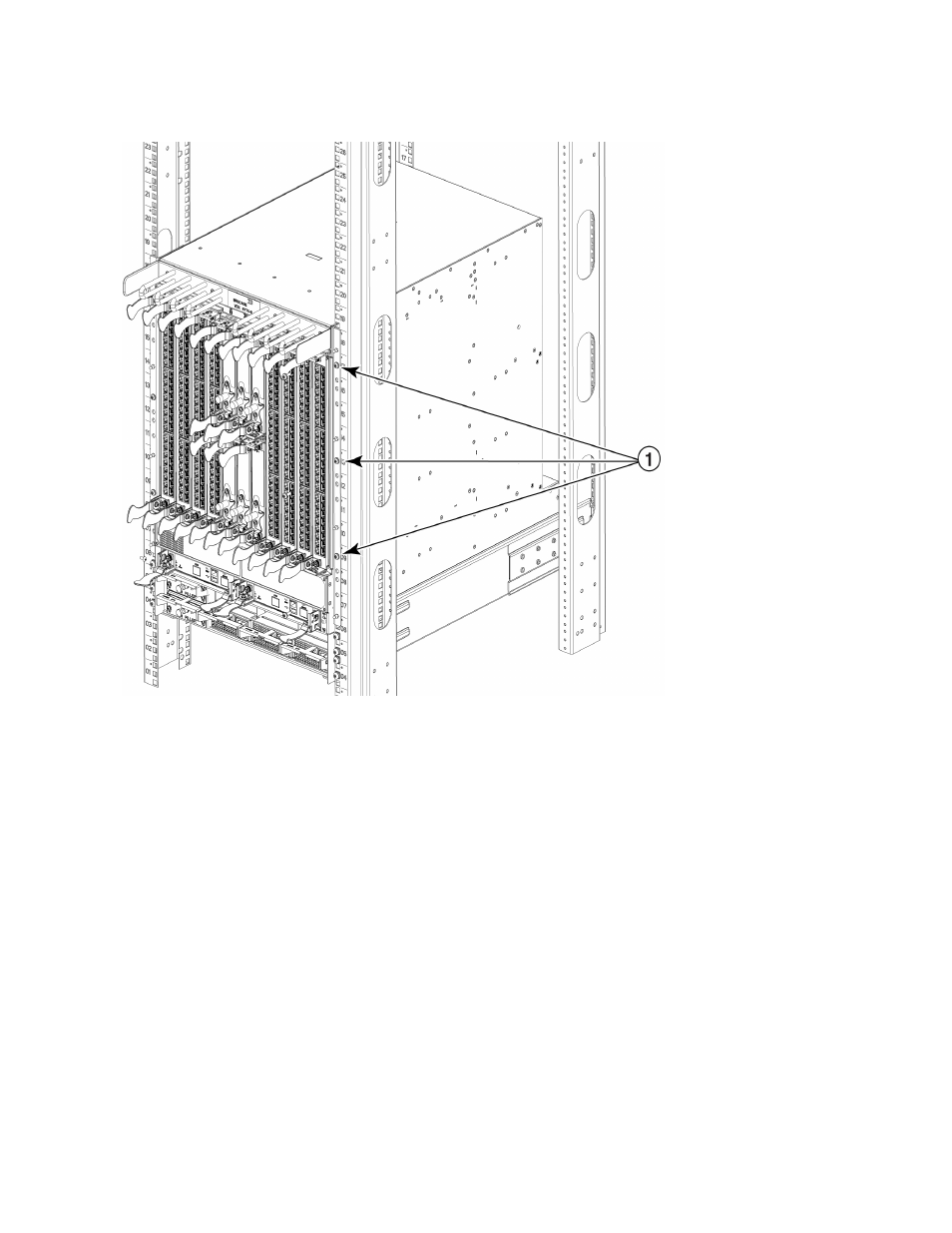

FIGURE 4
VDX 8770-8 flush installed in a four-post rack
4. Secure the switch to the equipment rack with six 10-32 screws, three screws on each side. Tighten the screws to
a torque of 80 in-lb (92 cm-kg). Use the retainer or clip nuts from the hardware package that accompanies the
switch.
1
Screw locations
