Brocade VDX 8770-8 Four-Post Flush and Recessed Mount Rack Kit Installation Procedure
Publication Number: 53-1002667-01

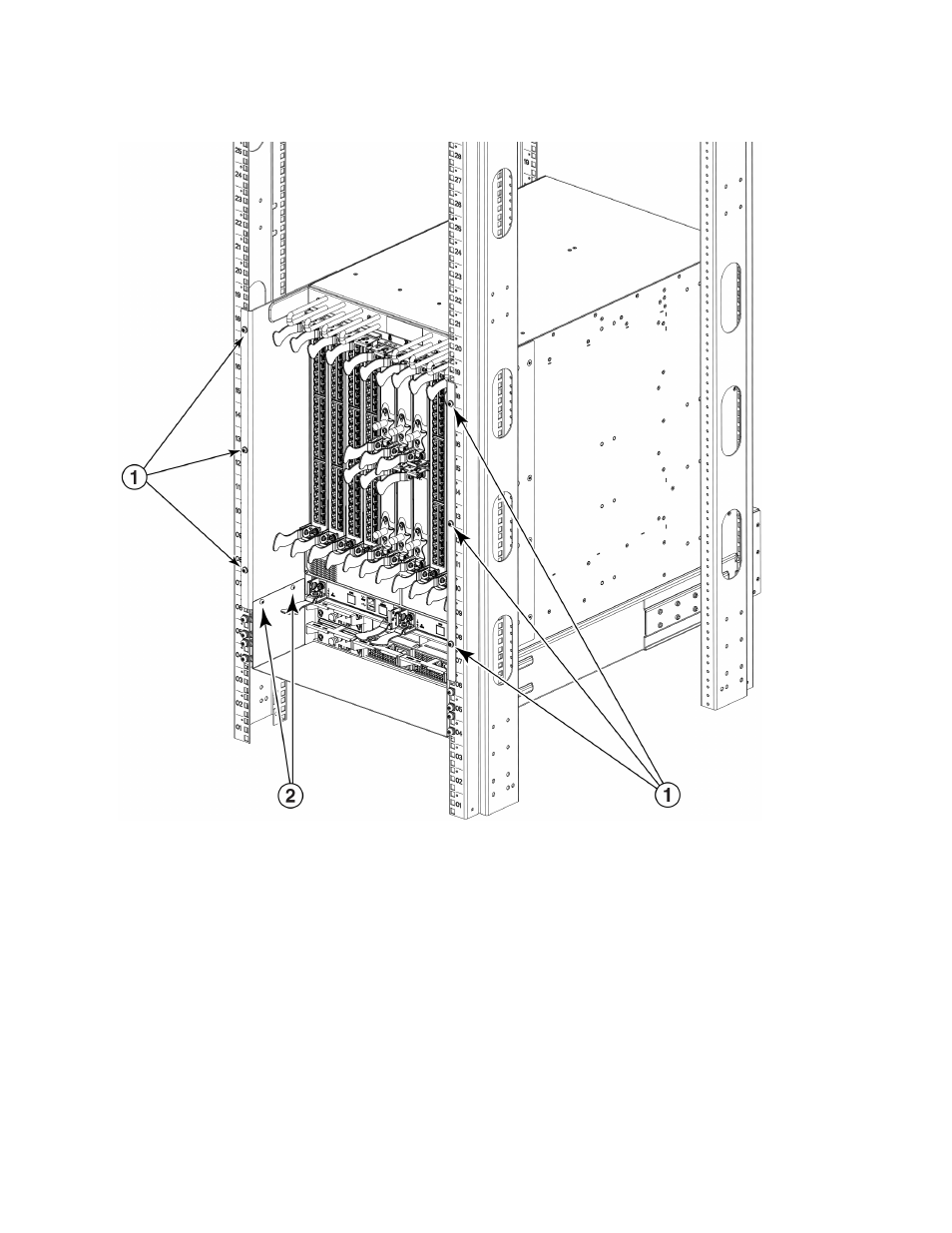

FIGURE 6
VDX 8770-8 installed in a four-post rack in a recessed configuration
5. Secure the switch to the equipment rack with six 10-32 screws, three screws on each side. Tighten the screws to
a torque of 80 in-lb (92 cm-kg). Use the retainer or clip nuts from the hardware package that accompanies the
switch.
6. Attach the U-shaped air block to the recessed rack ears using the 8-32 x 3/8 screws, two for each side. Refer to
.
1
Screw locations for mounting the switch
2
Screw locations for attaching the air block
