Brocade VDX 8770-8 Four-Post Flush and Recessed Mount Rack Kit Installation Procedure User Manual
Page 5
Brocade VDX 8770-8 Four-Post Flush and Recessed Mount Rack Kit Installation Procedure
5 of 10
Publication Number: 53-1002667-01

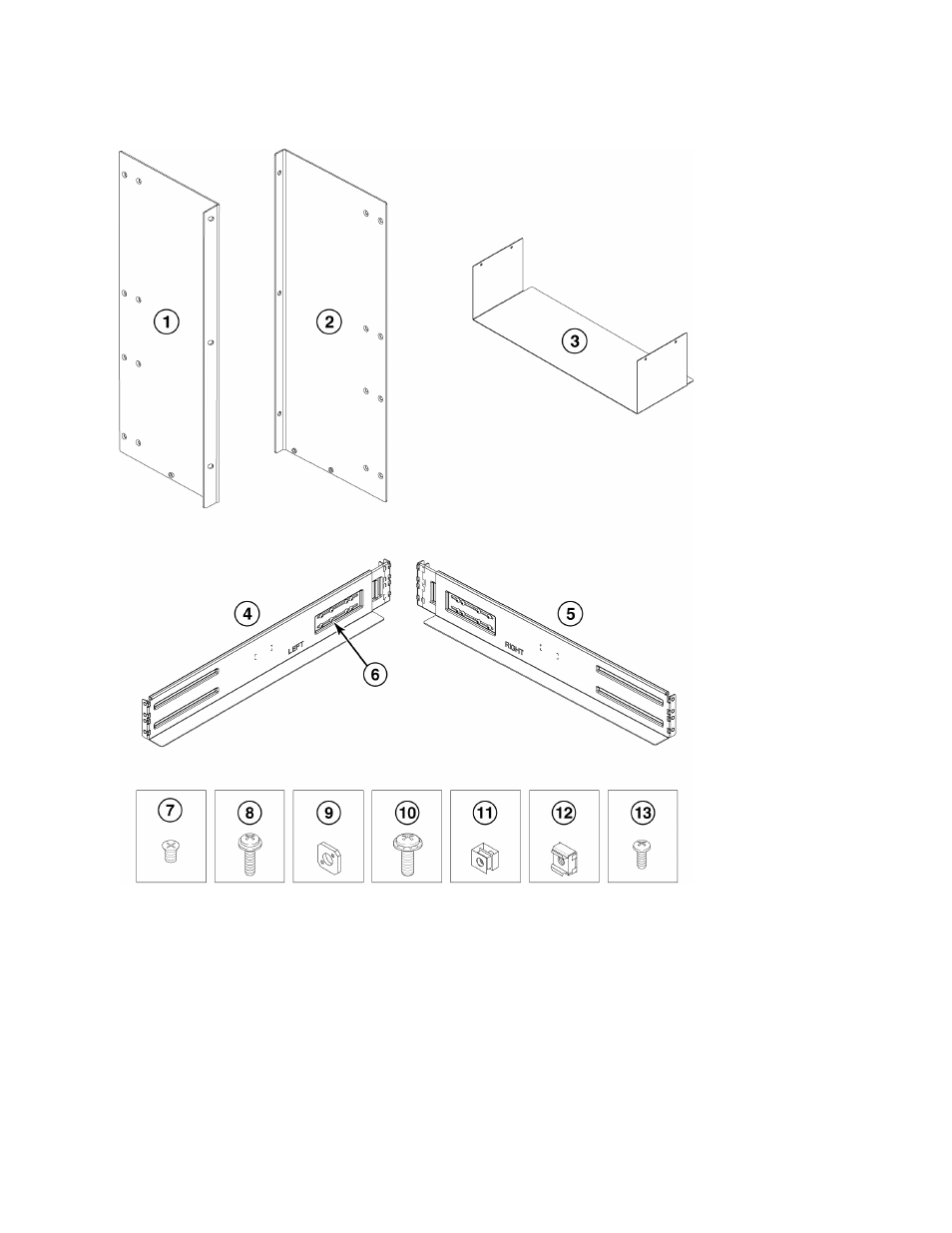

FIGURE 1
Brocade VDX 8770-8 four post rail kit parts
1
Left recessed rack ear
8
10-32 x .63 in.(1.60 cm) Phillips screw with square cone washer (8)
2
Right recessed rack ear
9
Alignment washer (16)
3
Air block
10 M6 x 1.0 x 12 Phillips screw with square cone washer (16)
4
Left rail
11 Clip nuts (8)
5
Right rail
12 Retainer nuts (8)
6
Adjusting screw locations
13 8-32 x 3/8 in. (.95 cm) Phillips screw with patchlock (4)
7
10-32 x .31 in. (.79 cm) Phillips screw (16)
