Fixed Rack Mount Kit Installation Procedure
11 of 12
53-1001274-06
Attaching the rear brackets to the front brackets
Complete the following steps to attach the rear brackets to the front brackets.
1. Position the right rear bracket inside the right front bracket, as shown in
.
2. Attach the brackets using four 6-32 x 1/4-in. screws.
3. Repeat
and
to attach the left rear bracket to the left front bracket.
4. Adjust the brackets to the rack depth and tighten all the 6-32 x 1/4-in. screws to a torque of 9 in-lbs (10 cm-kgs).

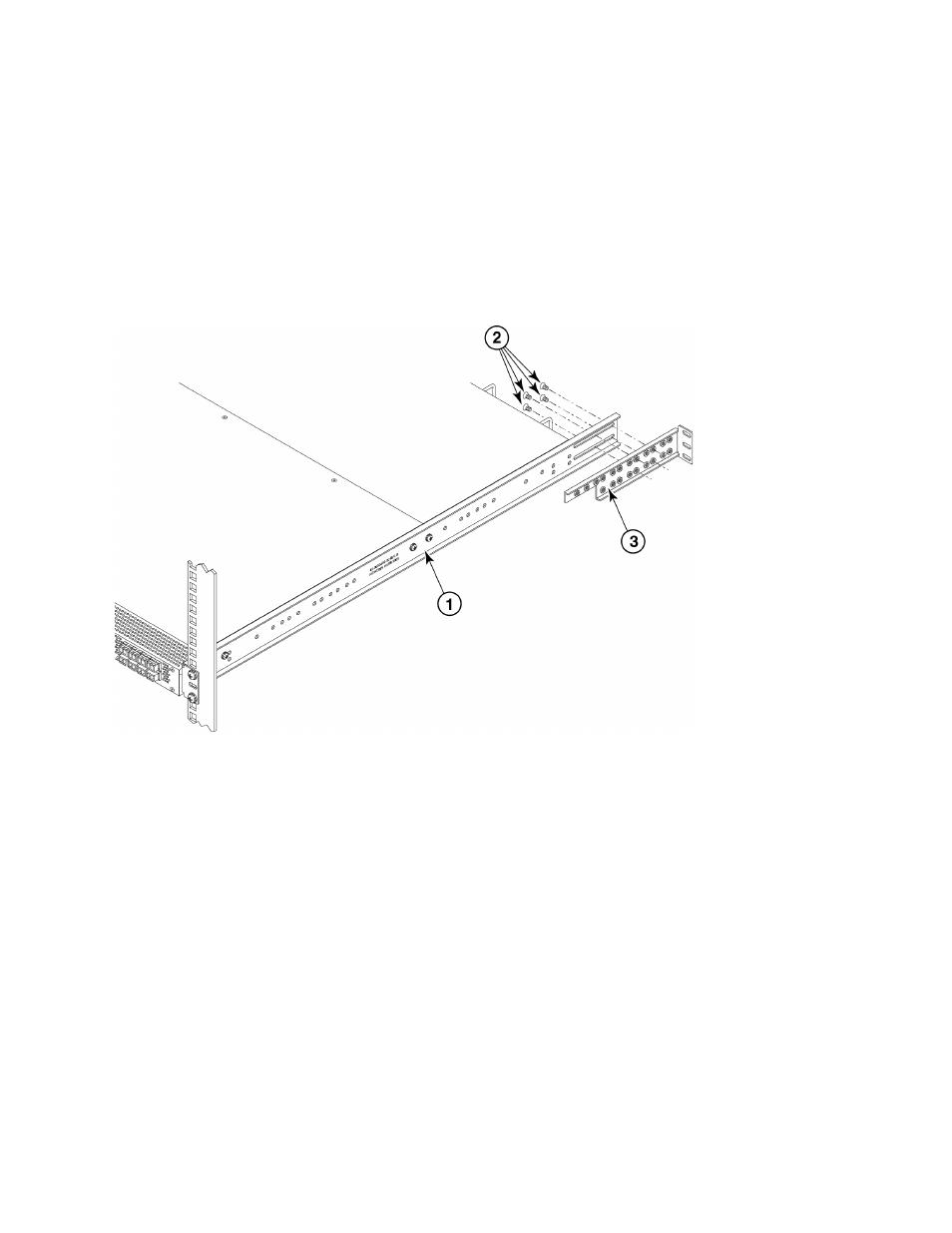

FIGURE 4
Attaching the rear brackets to the front brackets
1
Bracket, front right
3
Bracket, rear right
2
Screw, 6-32 x 1/4-in., flathead Phillips
