Installing the switch in the rack
Complete the following steps to install the switch in the rack.
1. Position the switch in the rack, as shown in
, providing temporary support under the switch until the rail
kit is secured to the rack.
2. Attach the right front bracket to the right front rack post using two 10-32 x 5/8-in. screws and two retainer nuts.
3. Attach the left front bracket to the left front rack post using two 10-32 x 5/8-in. screws and two retainer nuts.
4. Tighten all the 10-32 x 5/8-in. screws to a torque of 25 in-lbs (29 cm-kgs)

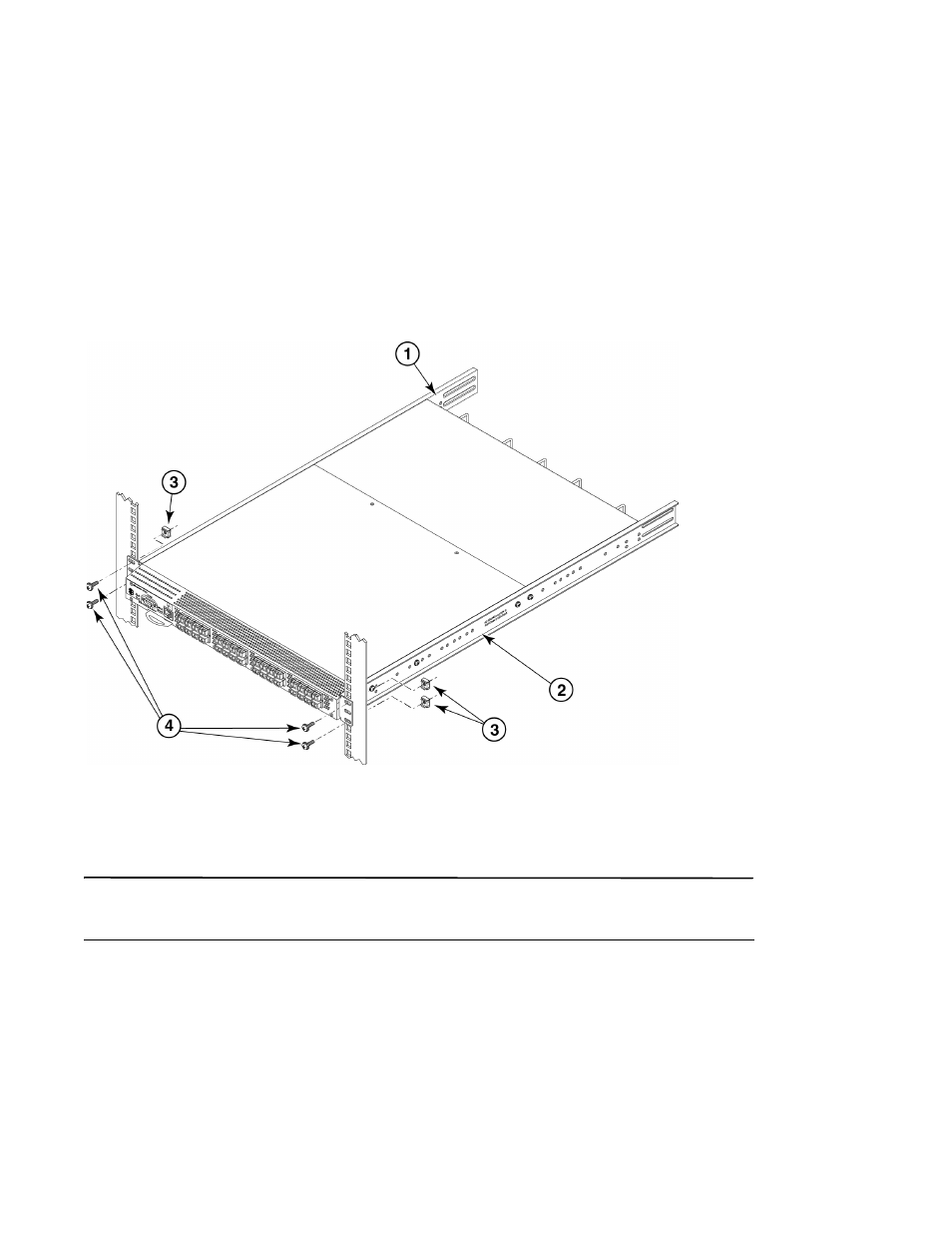

FIGURE 3
Positioning the switch in the rack
NOTE
The figure above is shown with a recessed mounting configuration on the left and a flush mounting configuration on
the right. You can select either mounting option.
1
Bracket, front left
3
Retainer nut, 10-32
2
Bracket, front right
4
Screw, 10-32 x 5/8-in., panhead Phillips
