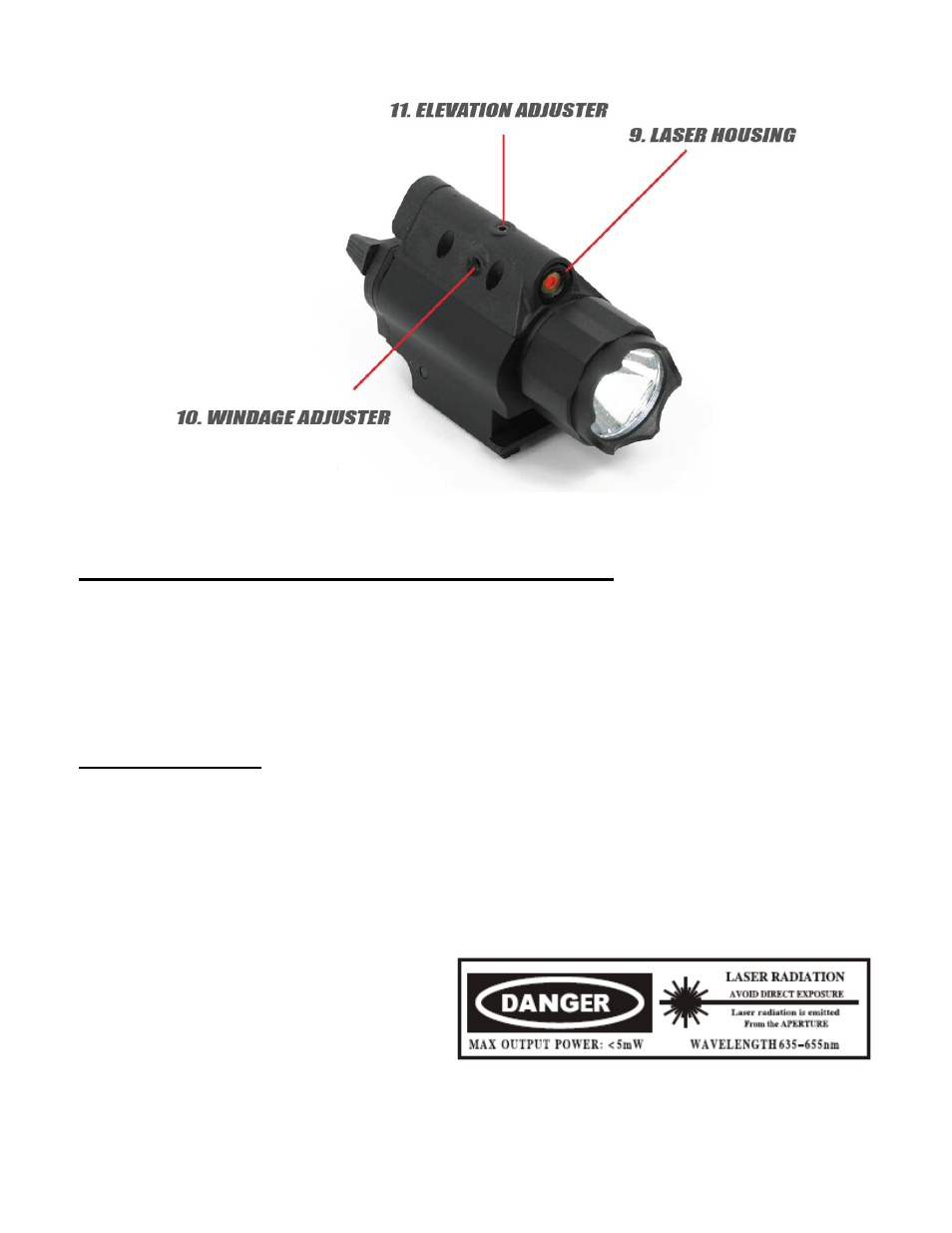

Laser Windage and Elevation Adjustments :
To adjust the windage of the Laser, insert the provided Allen wrench into the head of the Windage
Adjuster (10). Turn the Windage Adjuster (10) clockwise to adjust left and counterclockwise to
adjust right. To adjust the elevation, insert the provided Allen wrench into the head of the
Elevation Adjuster (11). Turn the Elevation Adjuster (11) clockwise to adjust down and
counterclockwise to adjust up.
Specifications:
Flashlight – 3 watt LED
Flashlight Power output - 120 lumens
Battery type - CR123A Lithium (requires 2) included
Laser Maximum output power: <5mW
Wavelength: 635-655nm
Length – 3.37 inches
Weight – 4 ounces
Bezel diameter – 1 inch
Height – 1.9 inches
Body width – 1.44 inches
Standard On/Off switch
3 position selector switch
