DX4BQ “ROGUE” & DZ4BQ “ZOMBIE”
FOUR RETICLE REFLEX OPTIC WITH LOCKING QUICK RELEASE MOUNT
Congratulations on your purchase of this NcSTAR Four Reticle Reflex Optic with the Locking
Quick Release Mount. This Reflex Sight is a compact Optical system, packed with many features. It
has a wide field of view to acquire your targets quicker, unlimited eye relief, four very unique Reticles
to choose from, an Auto-Locking Quick Release Mount, and seven brightness levels for any of the
four reticles.
This Optic is backed by our NcSTAR Lifetime Limited Warranty. We trust that you will receive
many years of enjoyment and service from your Optic.
CAUTION: BE SURE THAT YOUR FIREARM IS UNLOADED AND IS ALWAYS POINTED
IN A SAFE DIRECTION. ALWAYS PRACTICE SAFE AND PROPER FIREARM
HANDLING PROCEDURES AT ALL TIMES.
NOTE: IF YOU ARE UNFAMILIAR WITH THE PROCESS OF MOUNTING AN OPTIC, IT
MAY BE NECESSARY TO EMPLOY THE SERVICE OF A QUALIFIED GUNSMITH.
PLEASE FOLLOW ALL OF THE DIRECTIONS IN THIS MANUAL CAREFULLY.

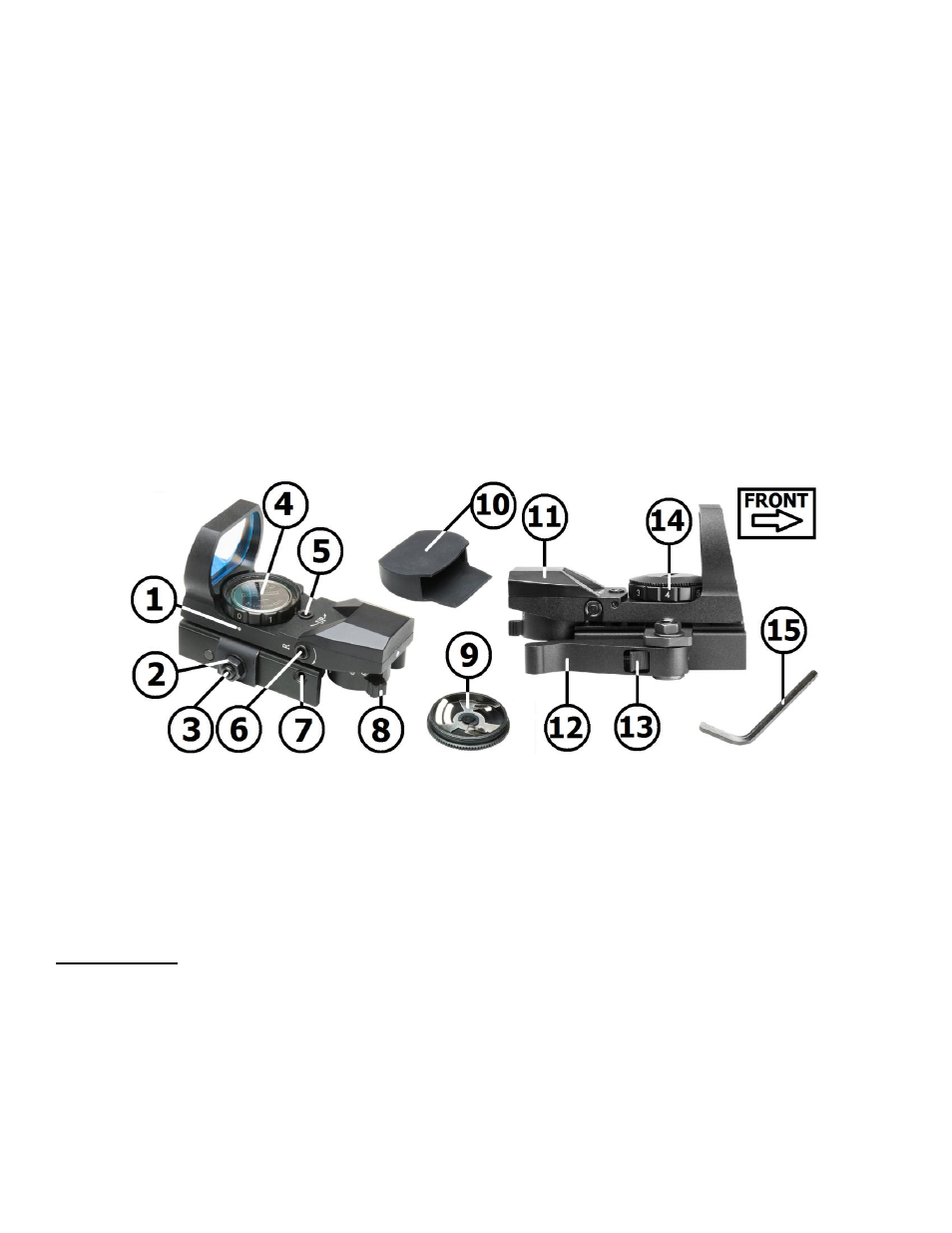

1. Indicator Mark for Rheostat
2. Rail Tension Lock Nut
3. Rail Tension Adjustment Set Screw
4. Battery – CR2032 3V
5. Elevation Adjustment Screw
6. Windage Adjustment Screw
7. Elevation & Windage Lock Set Screw
8. Reticle Selector Switch
9. Battery Cap
10. Rubber Lens Cover
11. Rear LED Reticle Housing
12. Quick Release Lever
13. Locking Latch
14. Rheostat
15. Allen Wrench
FEATURES:
Tubeless design with a Wide Field of view 24mm X 34mm Lens, to quickly acquire your target!
You can select from any of the Four Unique Reticles included with the optic.
Unlimited eye relief for flexible mounting, you can mount it anywhere on your optics rail.
LED Reticles (Light Emitting Diode) is 100% safe for the eyes.
Fully Adjustable for Elevation & Windage, to get your shots on target!
Seven brightness settings for the Reticles for use in all lighting conditions.
Adjustable Locking Quick Release Mount will mount onto most Weaver and Picatinny type rails.
Durable Black anodized aluminum construction.
