Users Manual
37
Fault Relay
NO / NC relay contacts
used to report a failure to an
external monitoring system;
used mainly to trigger a failure
indication on a hard-wired
monitoring device; handles
up to 0.5 Amps at 24 V AC or
DC. Pin 4 normally open, Pin
5 swing blade, Pin 6 normally
closed.
Power LED
Glows when amplifier
power is On.
Primary Analog Input
XLR female
pin 1 chassis, pin 2 +,
pin 3 -.
Looping Analog Output
XLR female
pin 1 chassis, pin 2 +,
pin 3 -.
Signal LED
Flickers when an audi sig-
nal of at least -30 dBu is
present at the primary
analog audio input.
Overdrive LED
Flashes red when the
Primary Analog Input
preamplifier is being
overdriven.
Input Pad & LED Indicator
On / Off 10 dB pad for
Primary Analog Input;
allows input signals of
up to +24 dBu
when inserted.
Secondary Analog Input
Phoenix connector;
pin 1 +, pin 2 -,
pin 3 chassis.
Primary & Secondary
Ethernet Inputs
RJ-45 female
When both are con-
nected, changeover to
Secondary is automatic
if Primary fails. Yellow
LED flashes when the
connector is active, glows
steadily when data is
streaming. Green LEDs
glow when connected but
inactive, turn Orange to
indicate a faulty
connection.
Push Button Volume Controls
Also function as a manual
Standby/On control.
Mute Buttons
Turn loudspeaker
muting On & Off.
Thermal LED
Lights to indicate that an
over-temperature sensor has
shut down the amplifier.
Protect LED
Lights to indicate
that protection
limiting is engaged.

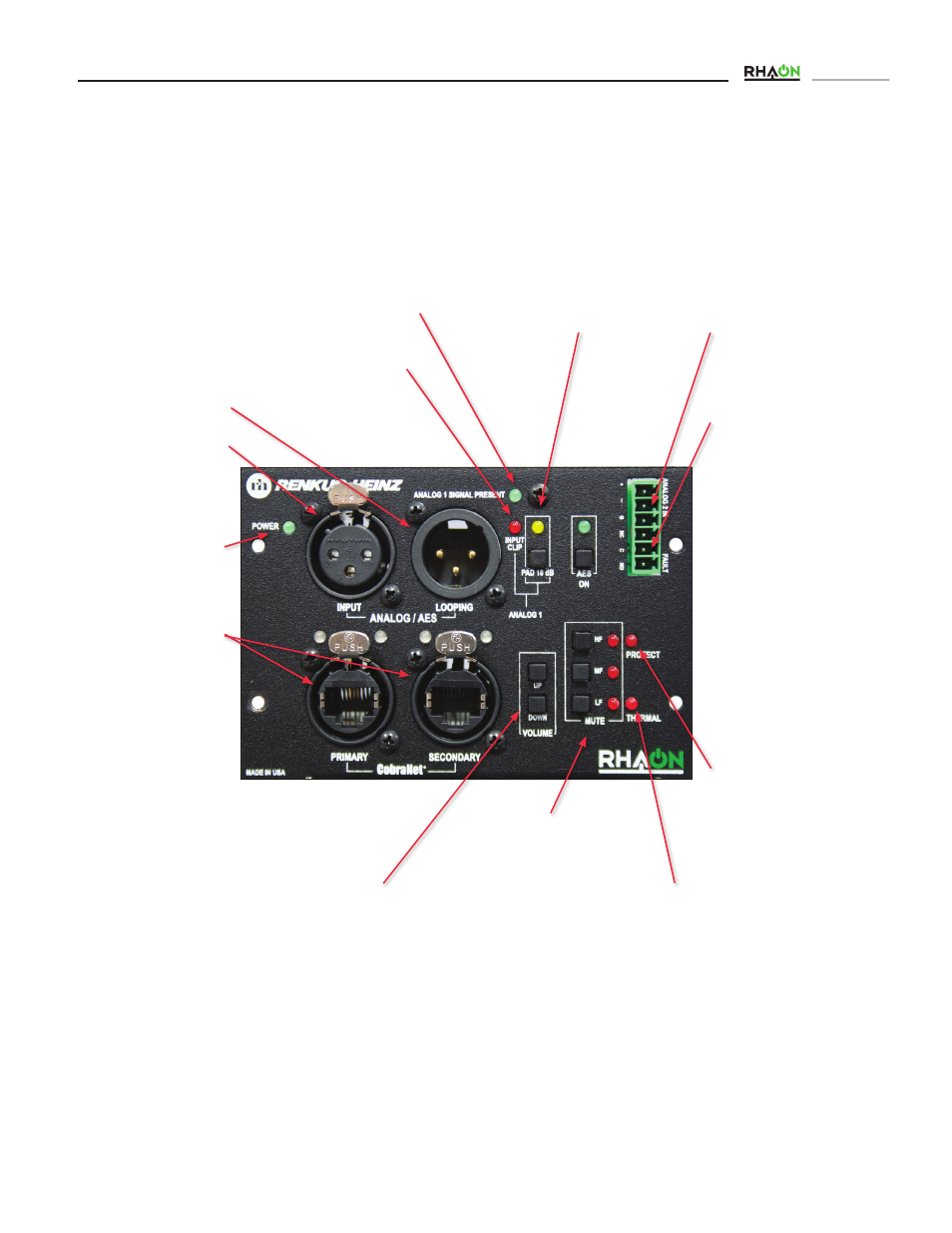

Appendix III: RHAON Hardware Inputs, Outputs & Indicators, Dimensions
The RHAON input panel shown on the previous page is for a PF2-500R module; input panels for the PF1-200R and PF1-500R have the same
controls in different layouts. The PM3-R RHAON module also has the same controls and indicators as the PF2-500R, but in a different layout
(see below).
NOTE:
1. To prevent inadvertent operation the Mute, Volume Up & Volume Down, Input Pad and AES/EBU push buttons need to be pressed and
held down for several seconds before they activate.
2. To toggle between On and Standby manually, hold both the Up & Down Volume push buttons down for approximately 3 seconds.
