ELECTRICAL INSTALLATION
 WARNINGS:
 The electrical installation must be carried out in accordance with the
current national electrical regulations and installed by a competent
person.
 In the interests of electrical safety a 30 mA residual current device
(R.C.D.) should be installed in the supply circuit. This may be part of a
consumer unit or a separate unit. For submersible pump installations
this device MUST be installed.

Before starting work on the electrical installation ensure the power
supply is isolated.

This appliance must be earthed.
 The motor and wiring must not be exposed to water.

Do not allow the supply cord to contact hot surfaces, including the
motor shell, pump body or pipework. The cord should be safely
routed and secured by cable clips.
Earthing
This appliance must be earthed via the supply cord.
Electrical Connection
The pressure control module provided with the submersible range is supplied loose for
remote mounting. This must be permanently connected to the fixed wiring and is provided
with a set of terminals located in the control module which allow the connection of a flexible
supply cord. Means for disconnection must be incorporated in the fixed wiring according to
the wiring rules.

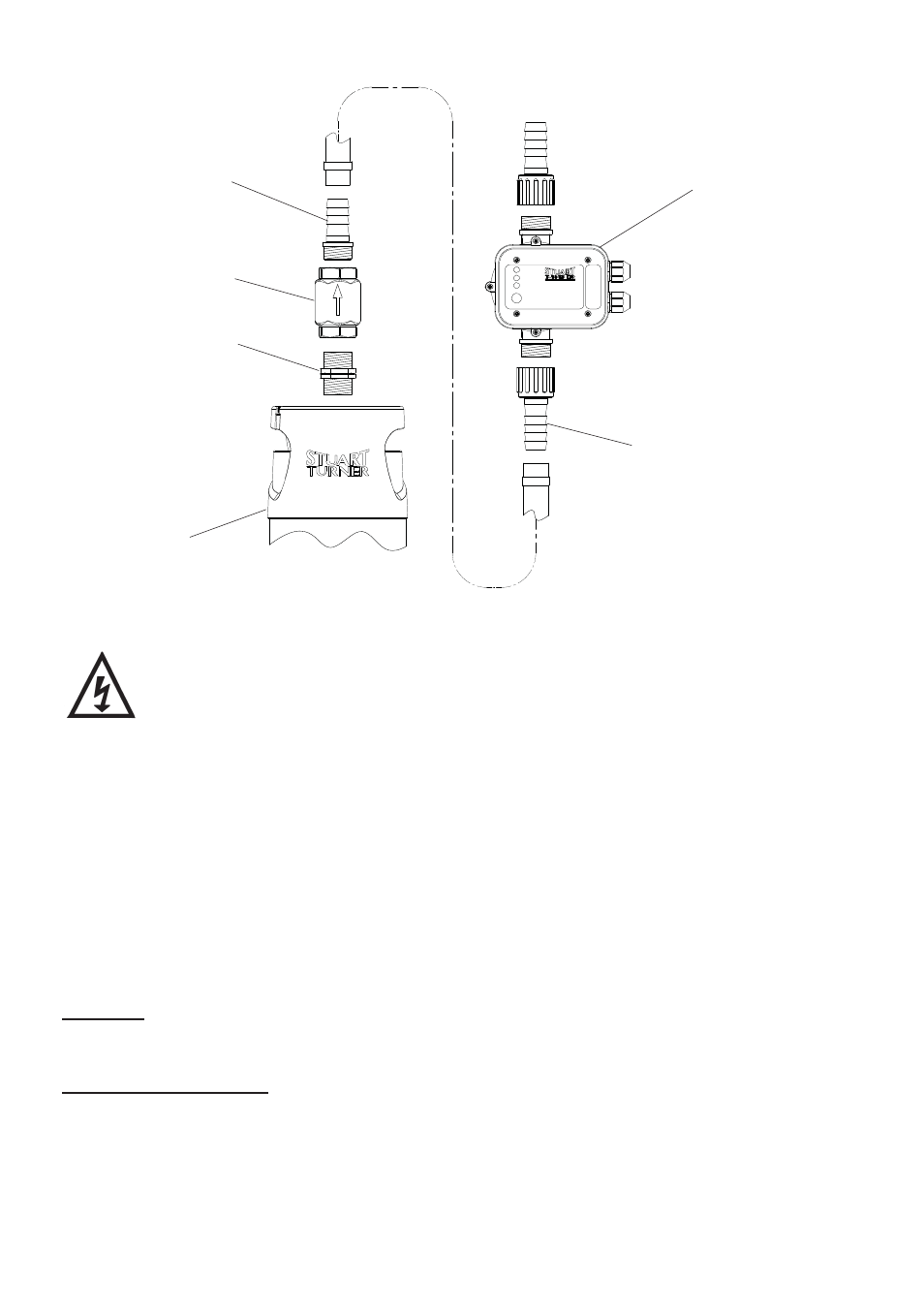

Fig. 2
Hose adaptor
(with pump)
Non-return valve
(note direction arrow)
G 1 nipple
Diver pump
Hose adaptor
(with control module)
Control module
