- 13 -
Cont ...
7.11 Flow Switch Circuit Test:
1. First confirm visually that the flow switch reed clamp has not been dislodged
during handling or installation. The clamp must be fully located within its flow
switch body groove as shown.
2. To carry out the following test you will need to obtain a magnet, a typical fridge
magnet is suitable.
3. Ensure the power supply is switched on.
4. Position the magnet directly in front of the reed clamp as shown. If pump
does not start, then slowly move the magnet up and down to a position
that exceeds the extent of the reed clamp. The pump should instantaneously
start at some point during this extent of movement. If this does not happen,
this indicates a possible fault with the reed switch or the P.C.B which is
located within the terminal box. These should be checked electrically.
Consult Stuart Turner for further instructions.
7.12 Environment Protection: Your appliance contains valuable materials which can
be recovered or recycled.
At the end of the products’ useful life, please leave it at an appropriate local civic
waste collection point.

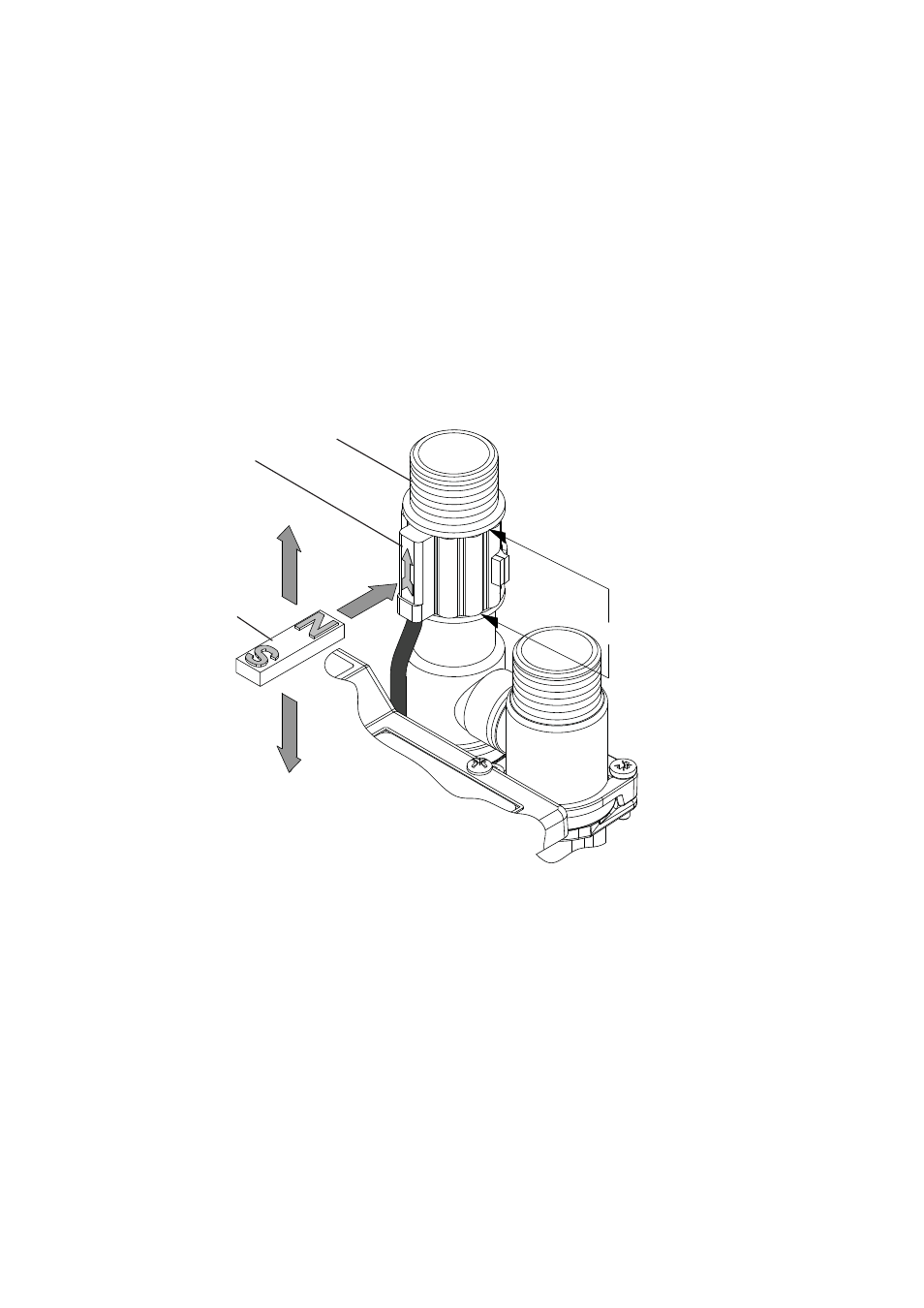

Fig. 5
Groove
Body
Reed Clamp
Magnet
