- 10 -

Cont ...

4.24

Supply Cord Replacement:

The supply cord and internal wiring within the terminal box are
routed and secured to ensure compliance with the electrical
standard EN 60335-1. It is essential that prior to any disturbance
of this internal wiring, all cable routing and securing details are
carefully noted to ensure re-assembly to the same factory pattern
is always maintained.

If the supply cord is to be changed or is damaged, it must be replaced with a

special cord assembly available from Stuart Turner or one of their approved

repairers.

On disassembly note the cord retention and routing system. Re-assemble to the

same

pattern.

For information on cable connection consult the wiring diagram and cable gland

fitting

instructions.

4.25

Cable Gland Fitting Instructions:

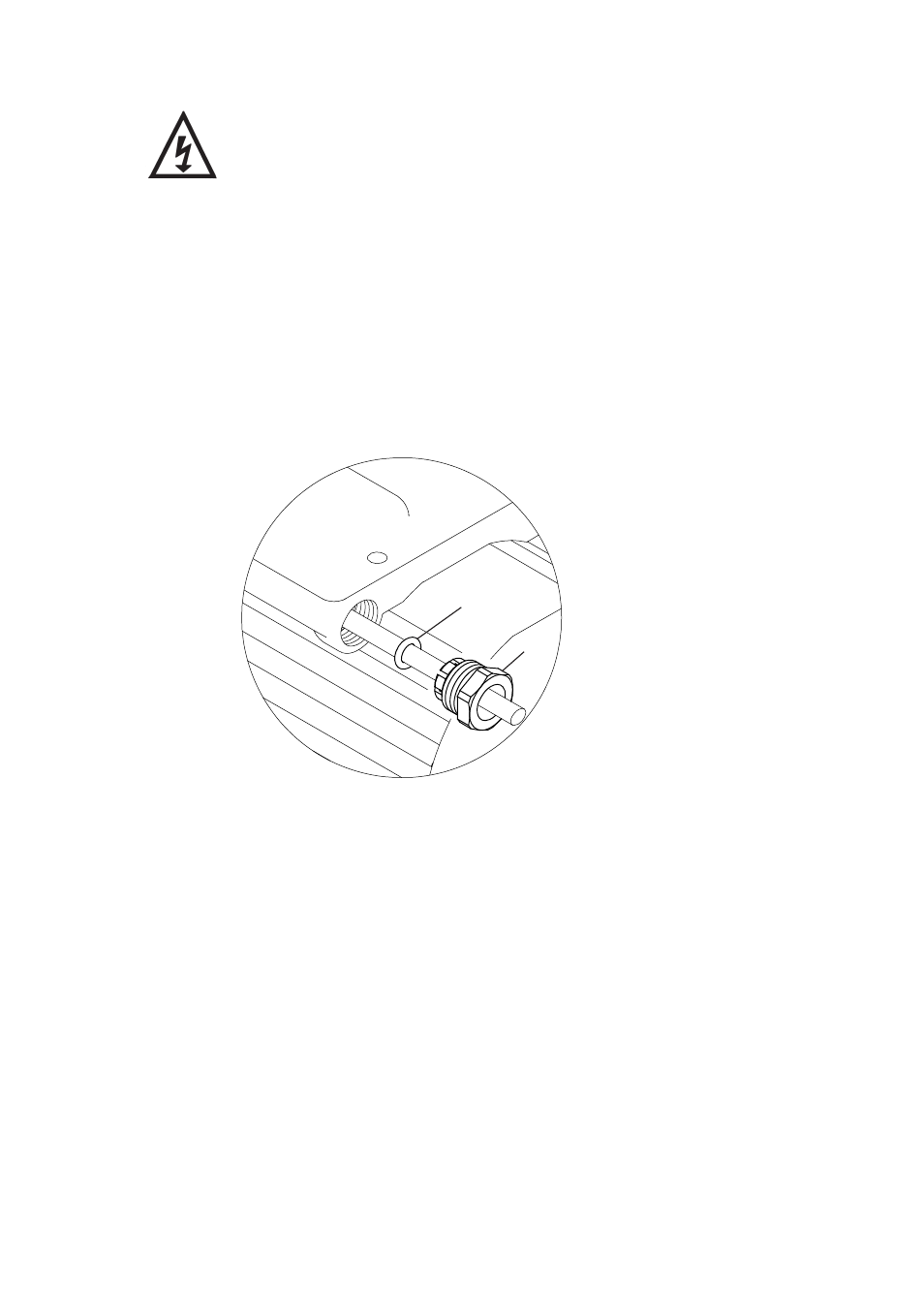

To enable correct assembly of the cable gland the ‘O’-ring (Fig. 6 item 1) must

be placed over the cable before the clamping insert (Fig. 6 item 2) can

be

tightened.

Note: Cable diameter range:- 6.5 mm to 9.5 mm.

4.26

Supply Cord Extension:

The pumps are fitted with a supply cord to the following specification:-

All models . . . . . . . . . . . . . . . . . HO5VV-F3 G 0.75 mm² - 6 Amp rated cable.

If the supply cord is to be extended, a cord of the same specification should be

used. Any connections or junction boxes used should be specifically suited for

the application and installed in accordance with the manufacturers instructions.

Fig. 6

2

1
