- 3 -

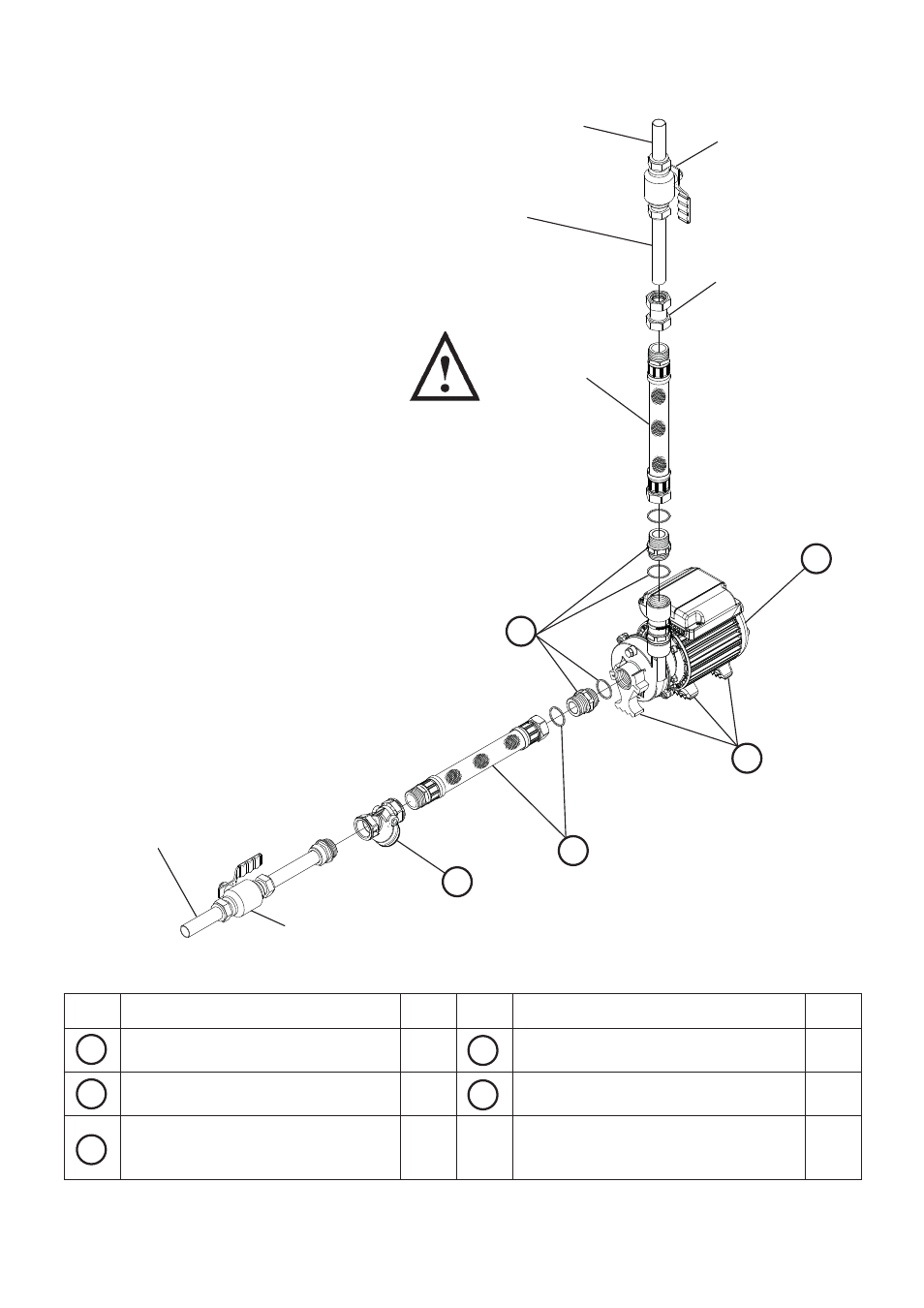

CHECKLIST

Your product may vary slightly from the picture above.

Item Description

Qty Item Description

Qty

Pump

1

Anti-vibration feet

3

Hose & sealing washer

2

Inline strainer

1

Inlet/outlet connectors &
gaskets

2

A

D

C

B

E

Fig. 1

28 mm copper
inlet pipework
(suction).

28 mm isolating valve
(non restrictive) and
fittings

(not supplied)

must be fitted to allow
easy pump service.

28 mm copper outlet pipework (discharge).

Short 28 mm copper pipe
tails to connect between
isolating valve and flexible
pipes.

28 mm isolating valve
(non restrictive) and
fittings

(not supplied)

to allow easy pump
service.

28 mm - G 1 connector
(not supplied) must
be fitted

28 mm flexible
pipes. These
hoses are fitted
with G 1 female
connector suitable

for connection to a G 1 (1 “ BSP)
adaptor or fitting.

A

D

C

B

E

IMPORTANT: With the pump
removed from its packaging check
for any damage prior to installation.
If any damage is found contact Stuart
Turner Ltd within 24 hours of receipt.
