- 6 -

Cont ...

2.25

Preferred pump location: The preferred pump location is at floor level next to

the hot water cylinder or a level that is below the secondary tapping that feeds

the pump. This will ensure the pump has access to an air free water supply

which is important for trouble free operation (Figs. 4 & 5).

Pump location is also dependent on limitations of the static inlet and outlet heads

of the installation. For guidance on limitations and recommended location,

consult the following relevant section for hot or cold water installation.

2.26

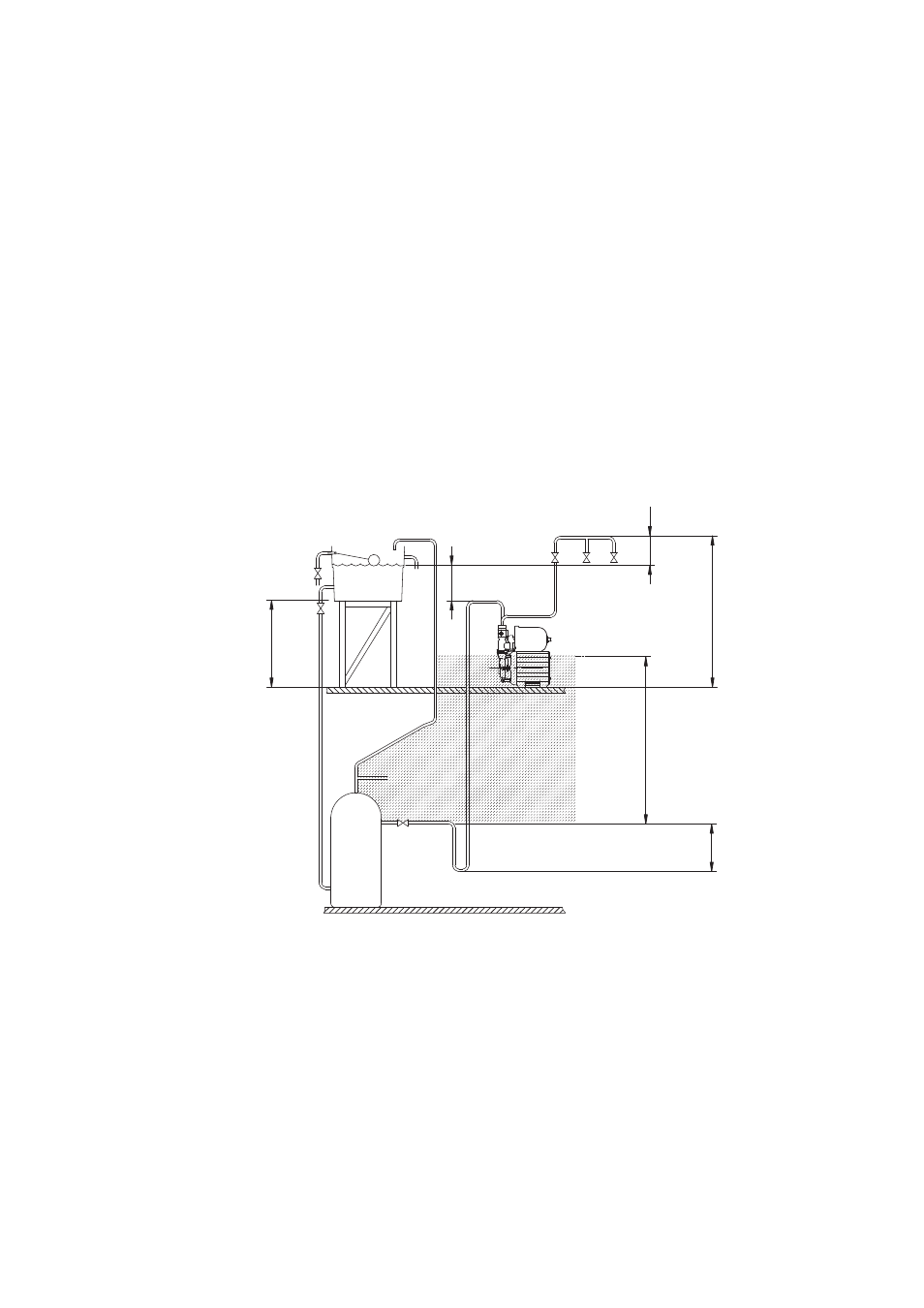

Non-preferred pump location: If it is not possible to locate the pump in the

preferred area due to site limitations and it is necessary to position the unit in the

loft, or in a position above the secondary tapping that feeds the pump, then there

is an increased risk of air locks. This risk must be eliminated.

The following measure is a suggestion that may overcome the problem:

A “U” bend or downward loop in the supply pipe to the pump of 350 mm depth

before rising to the pump should ensure the cylinder vents its air up the

expansion pipe, not up the pump feed (Fig. 3).

Max. inlet head

12

m (

8

m U2.0 bar)

Min. inlet head

0.5

m

Negative

head

Least preferred area

200

mm

min

350

mm

min

Max. outlet head

12

m

(8

m U2.0 bar)

Fig. 3
