DATA ACCUMULATOR FEATURES

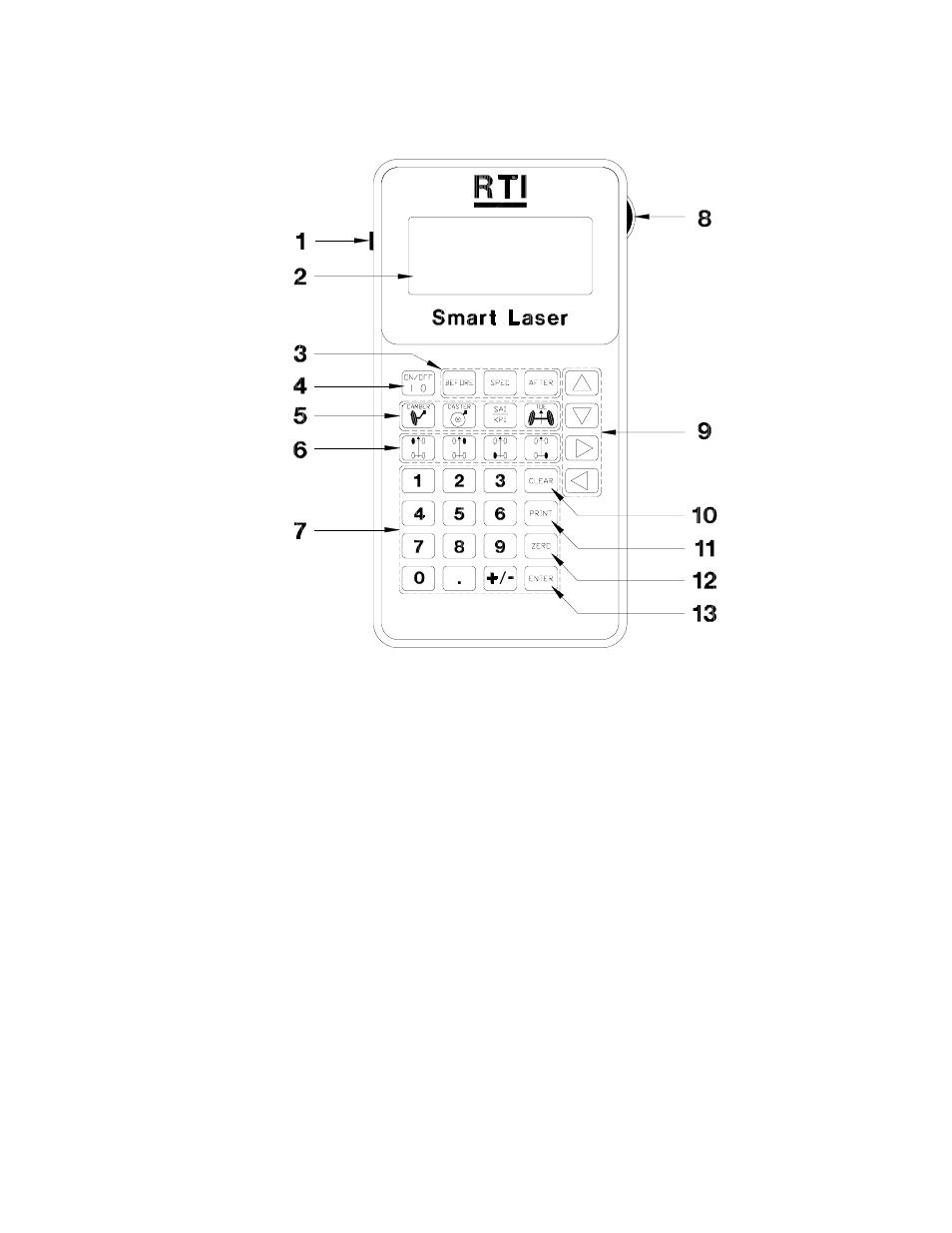

Features of the Data Accumulator are shown below.
1
AC Adapter Receptacle
2
LCD Graphic Display
3
Category - Before, Spec, or After
4
Power Switch - press to toggle unit on and off
5
Parameter - Camber, Caster, SAI, and Toe
6
Wheel Designation - Left Front, Right Front, Left Rear, Right Rear
7
Numeric Keypad
8
Contrast Control for LCD Graphic Display
9
Arrow Keys - Up, Down, Right, Left
10
Clear Key - Clears LCD Display
11
Print Key - Prints accumulated data on Printer
12
Zero Key - Zeros the LCD Display during Caster and SAI measurements
13
Enter Key - Records data displayed on LCD Display for later printing
