PRINTER CONNECTION

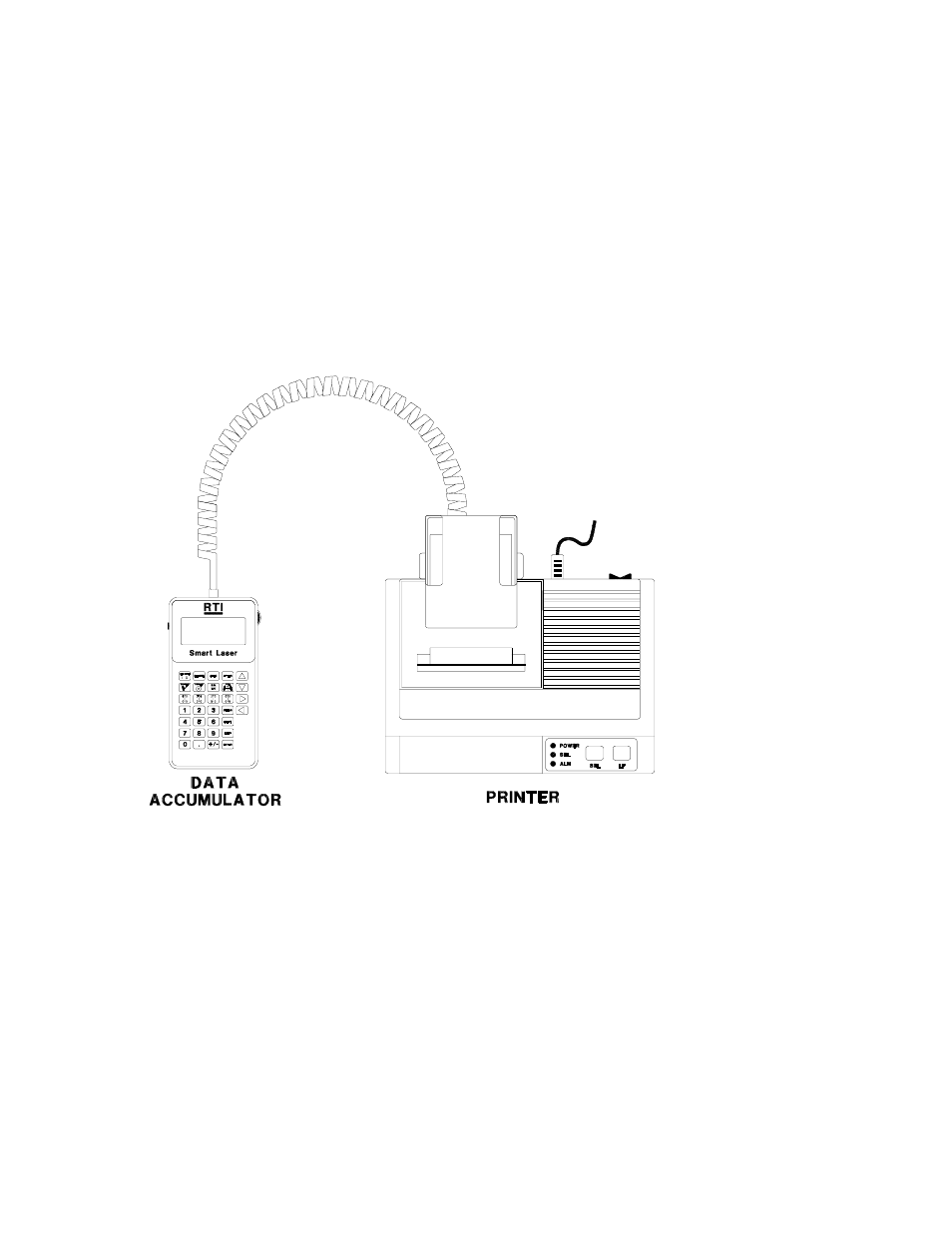

Connection of the Data Accumulator to the Printer is shown below. This configuration is used to
transfer data from the Data Accumulator to the Printer. A printout can then be made for the shop’s
record and the customer if desired. Refer to the Printer Instruction Manual packed separately for
printer operation and maintenance.
