- 13 -
NOTE: This step is important to ensure proper filter seal. Make sure the O-ring is sealed level in the
groove in the housing.
NOTE: If the O-ring appears damaged or crimped, replace it at this time.
6. Insert a new Filter Cartridge into the housing making sure that it slips down over the sump standpipe.
Be certain that the 25 micron filter is installed in the left housing, and the 5 micron filter is installed
in the right housing.
7. Screw housing onto the cap and hand tighten. DO NOT OVER TIGHTEN.
REPLACE PUMP IMPELLER - If loss of pump performance is noticed due to pump being run dry, wear
or damage from foreign objects, replace impeller.
NOTE: Unit has two pumps. One is located at the rear of the unit, the other is located behind the panel
of the Recycling Center.
1. Disconnect power.

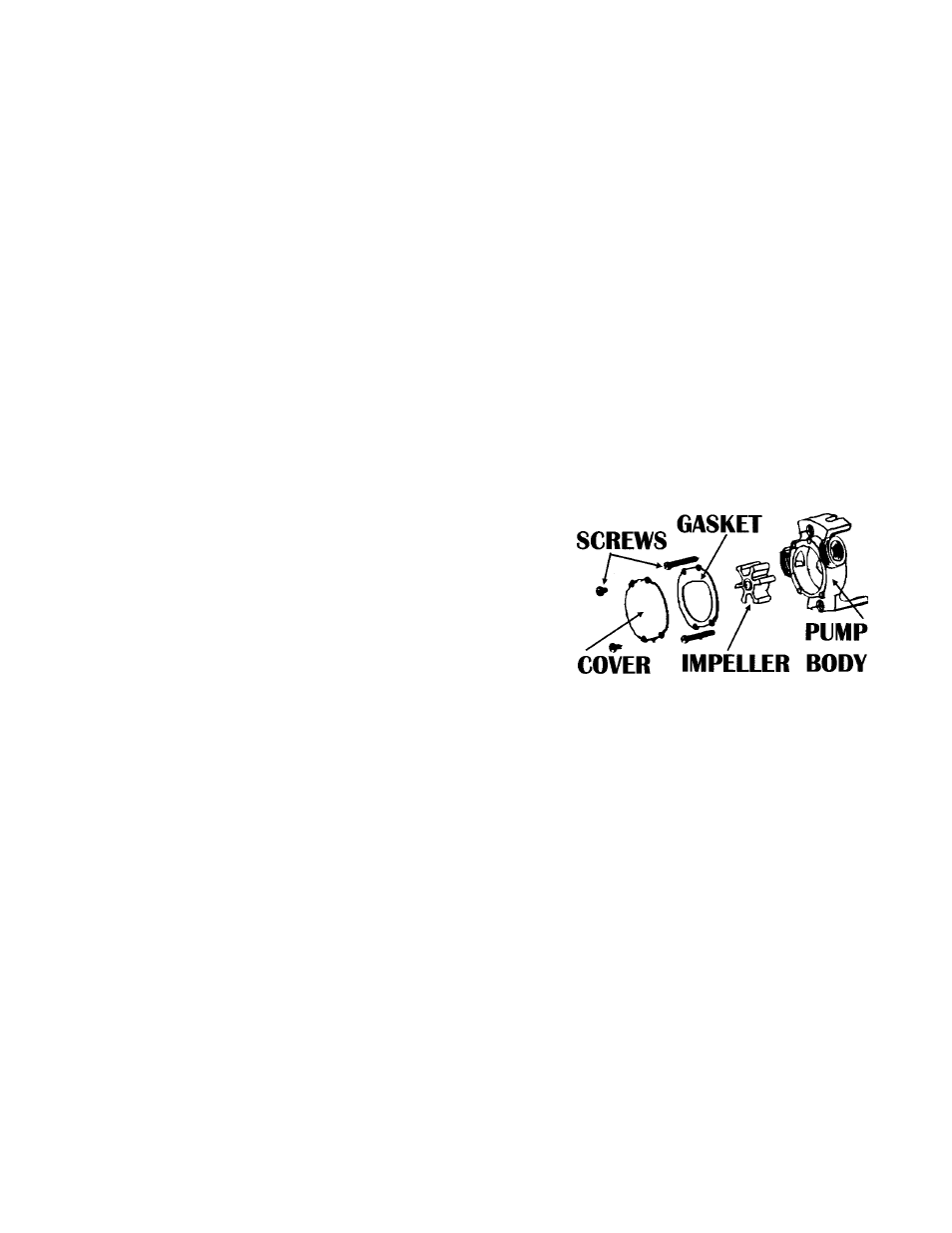

2. Remove cover plate from the pump head (held in place
with four Phillips Head screws).
3. Remove old impeller.
4. Lubricate the new impeller with petroleum jelly.
5. Push the impeller onto the motor shaft and at the same
time twist in a clockwise direction. This will bend the
blades in the direction for proper operation.
6. Replace the cover using a new gasket, tightening all screws evenly and snugly. Do not over tighten.
WARRANTY
When operated in strict accordance with these instructions, this unit is warranted for one (1) year from
date of shipment against defects in material and workmanship to the original purchaser. A dated proof
of purchase is required. All warranty claims are FOB factory, York, PA. Liability under this warranty
is expressly limited to the repair or replacement (at RTI's option) of the products or parts thereof and is
in lieu of any other warranties, either express or implied. This warranty does not apply to parts broken
due to accident, misapplication, abuse, tampering, or alteration. If this warranty does not apply, the
purchaser shall bear all costs for labor, material and transportation.
TECHNICAL SERVICE HOTLINE: 800-468-2321 (ext. 259)
