MAHLE RTI BFX-1 - Manual (Page 8)

IMPORTANT: Test drive vehicle after service to verify proper
brake system performance.
Page 7
ON ON
OFF OFF OFF
ON
PRESSURE
EMPTY
FULL
USED TANK
NEW TANK
ON
OFF
ON
ON
OFF
ON
OFF
OFF
VACUUM BLEEDER
BFX 1
EMPTY
MASTER
CYLINDER
FILL
MASTER
CYLINDER
EXCHANGE
BRAKE
FLUID
Exchange continued
10. Turn on FILL MASTER CYLINDER switch. Verify that fluid is flowing through the Fill
Hose into the Master Cylinder and that the pressure stops and holds at approximately
12 psi as shown on the BFX Pressure Gauge.
Note: If pressure does not remain constant as indicated on Pressure Gauge, check
master cylinder adapter for leaks and tighten.
11. Verify hose and
battery cable
clearance, then raise
vehicle.
12. Connect Bleeder
Hoses to the bleeder
valves located on
each wheel cylinder.
Match color code on
each bleeder line to
the graphic located

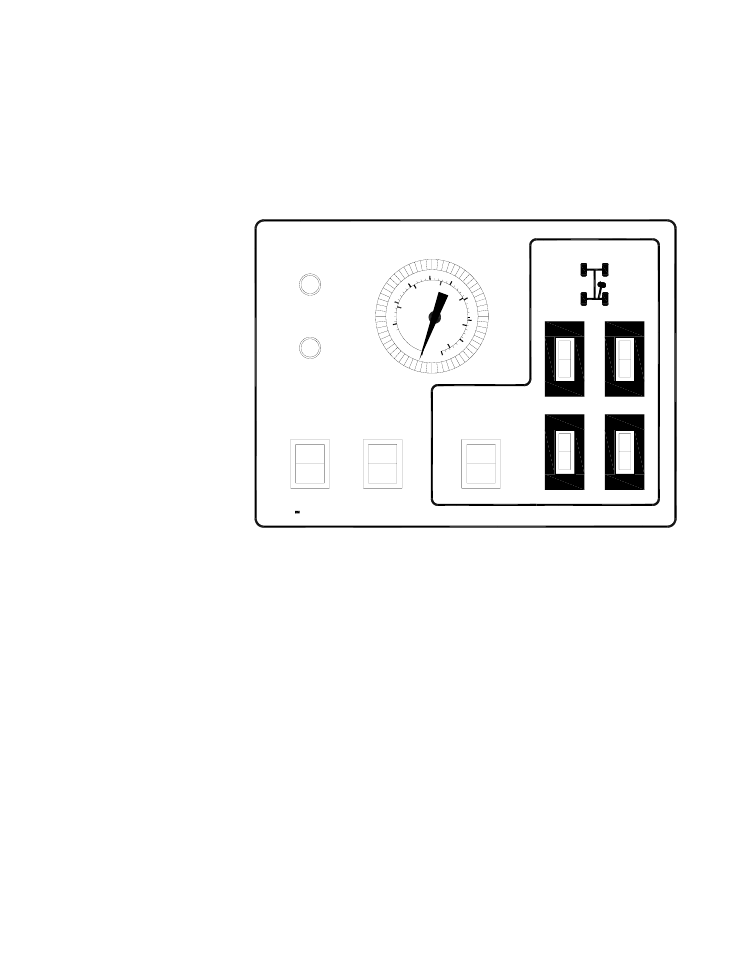

on the BFX Control
Panel.
13. Turn off FILL
MASTER
CYLINDER switch.
14. Turn on EXCHANGE
BRAKE FLUID switch.
15. Using the four VACUUM BLEEDER switches, vacuum each wheel bleeder. Always
follow the OEM recommend service for the correct sequence. Select appropriate
switch and turn on. Loosen corresponding bleeder until adequate flow is observed.
16. Monitor flow and color of fluid in Bleeder Hose and turn off VACUUM BLEEDER switch
when fluid becomes clear or the desired amount of fluid has been exchanged.
Warning: Monitor both the NEW TANK EMPTY and USED TANK FULL Indicator Lights.
If either illuminates during service, immediately turn all switches off, add new
or remove used fluid as needed and continue with procedure.
Note: The appearance of air bubbles in the Bleeder Hoses is due to air being pulled
around the thread of the bleeders. This is a common occurrence and does not
indicate a malfunction with the process.
