IMPORTANT: Test drive vehicle after service to verify proper
brake system performance.
Page 10
ON ON
OFF OFF OFF
ON
PRESSURE
EMPTY
FULL USED TANK
NEW TANK
ON
OFF
ON
ON
OFF
ON
OFF
OFF
VACUUM BLEEDER
BFX 1
EMPTY MASTER CYLINDER
FILL MASTER CYLINDER
EXCHANGE BRAKE FLUID
X 4
1
2
5 (x4)
3
4
6
7 8
9
11
12 13 14
10
16
18
19
15
17

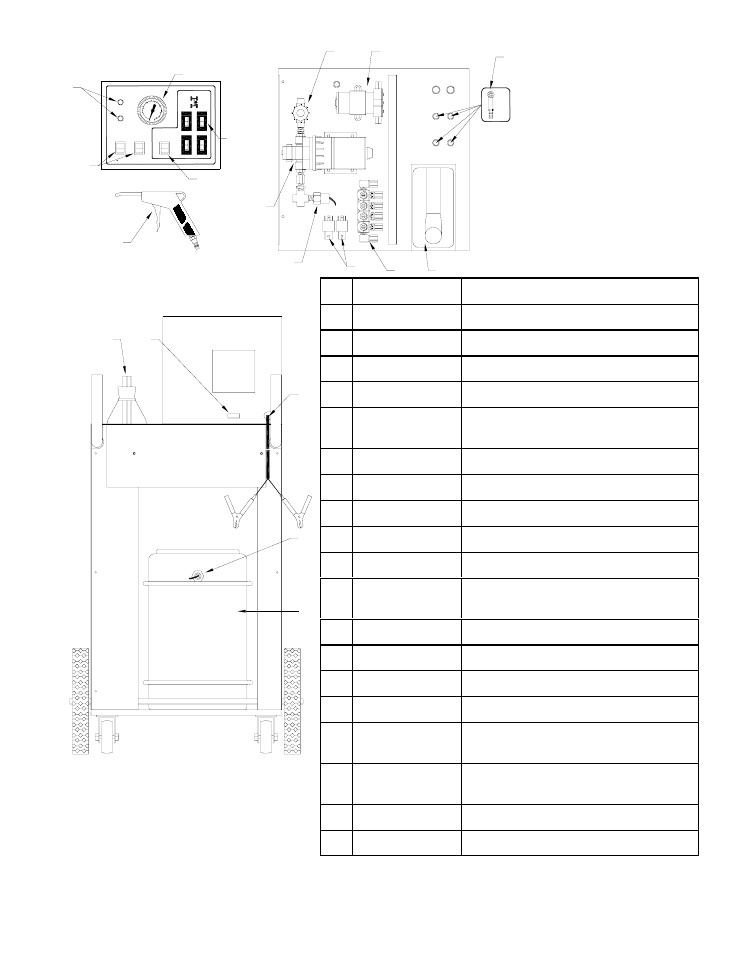

Parts Identification
Part No. Description
1 025-80358-00 Indicator Light Red 12VDC
2 325-80016-00 Pressure Gauge Assy (BFX-1)
3 024-80076-00 Switch Rocker SPDT (On-On)
4 024-80075-00 Switch Rocker DPDT (On-On)
5 024-80066-00 Rocker Switch SPDT
(On-On)Visi-Red
6 325-80027-00 Wand/Gun Assy (BFX)
7 026-80358-00 Sight Glass 1/4 FPT (Nylon)
8 325-80030-00 Vacuum Pump w/terminals Assy
9 325-80029-00 Supply Pump w/terminals Assy
10 023-80344-00 Adapter Brake Nipple x 3/16 Barb
11 325-80031-00 Press Switch 9-12 psi SPST
EPDM 1/4 MPT w/Terminals
12 024-80091-00 Relay 40 Amp SPDT 12VDC
13 025-80361-00 Manifold 4 Valve 12VDC 1/4FPT
14 325-80005-00 New Tank Assy (BFX-1)
15 024-80099-00 Float Switch Assy (New Tank)
16 360-81763-00
025-80342-10 Fuse Holder ATO Panel Mount
Fuse 10 Amp ATO Fast Blow
17 320-80005-00 Cord Power 14/2 SPT3 Battery
Clamps 12FT
18 325-80022-00 Float Switch Assy (Used Tank)
19 325-80004-00 Used Tank Assy (BFX-1)
