2.3 Retrevng Informaton about the Target
MX100s/MW100s and Settng the Number of
Channels and the Montor Interval
Before carrying out the procedure below, register the target MX100s in advance
according to the instructions given in section 2.2, “Registering MX100s/MW100s.”
Procedure
1. Click the Get Info. button in the Info column in the MX100/MW100 unit list area.
When the retrieval of the information is complete, the MX100/MW100 machine
name appears in the Machine Name column.

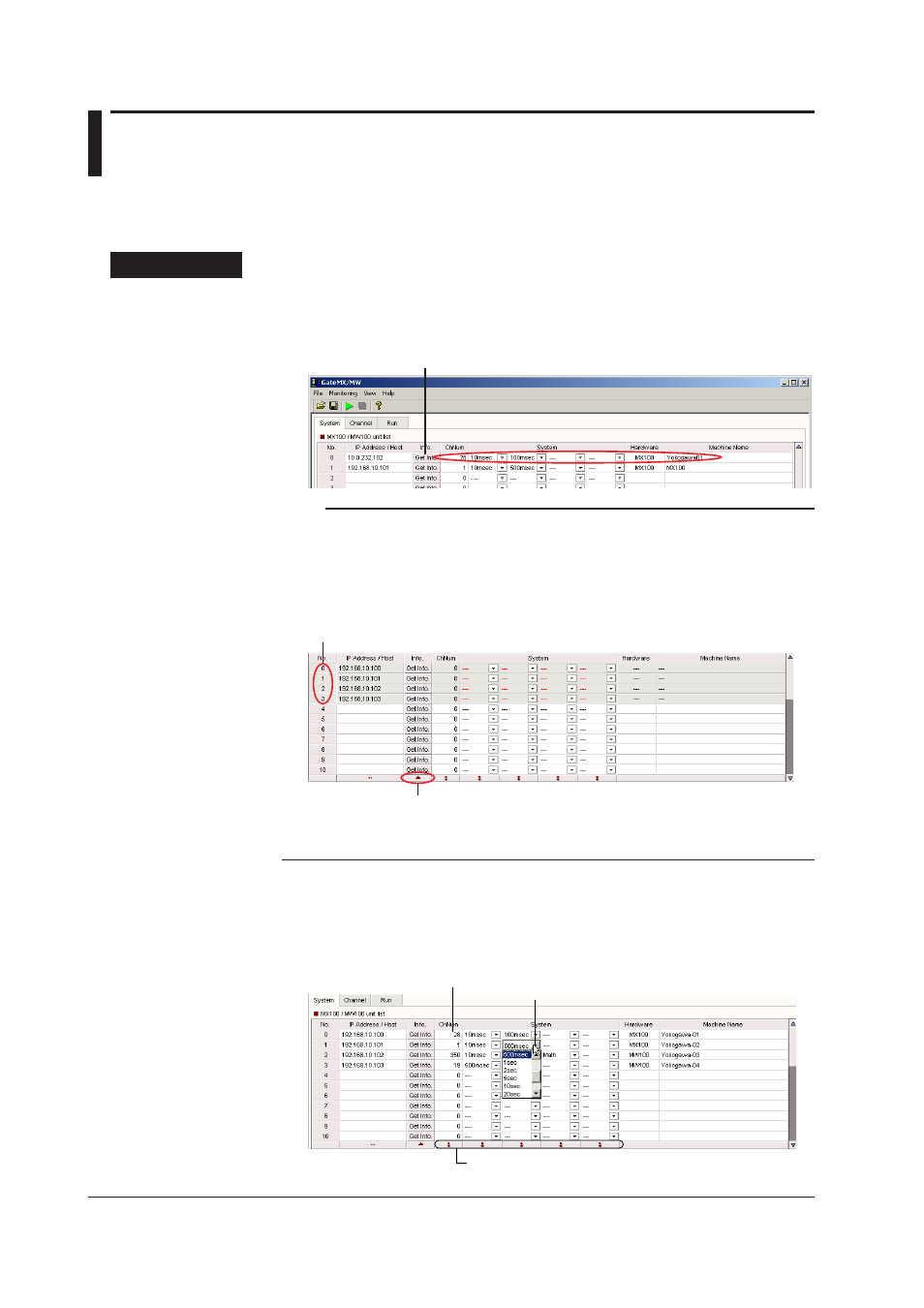

Click
Note
• If the MX100/MW100 from which you are attempting to retrieve information is already
connected by another user or if the MX100/MW100 does not exist on the network, the
information cannot be retrieved. The number of the channel is displayed as 0 and the
system, hardware, and machine name do not appear.
• As shown in the figure below, you can select multiple numbers in the No. column and click
the button below the Info. column to retrieve information of multiple registered units.
2. Click
1. Select
• The information is retrieved again from the registered MX100/MW100 when data monitoring
is started.
2. To change the number of channels after information is retrieved, click in the Num.
of Ch. column and enter the number. If you wish to change the monitor interval
settings, click the button in the System column to display the list and select a
monitor interval. When the number of channels is changed, the display in the
Channel tab will be modified.
Click here to enter the value
Click here to select from the list
Copy the settings of the first channel
in the selected range to all other channels in the range
