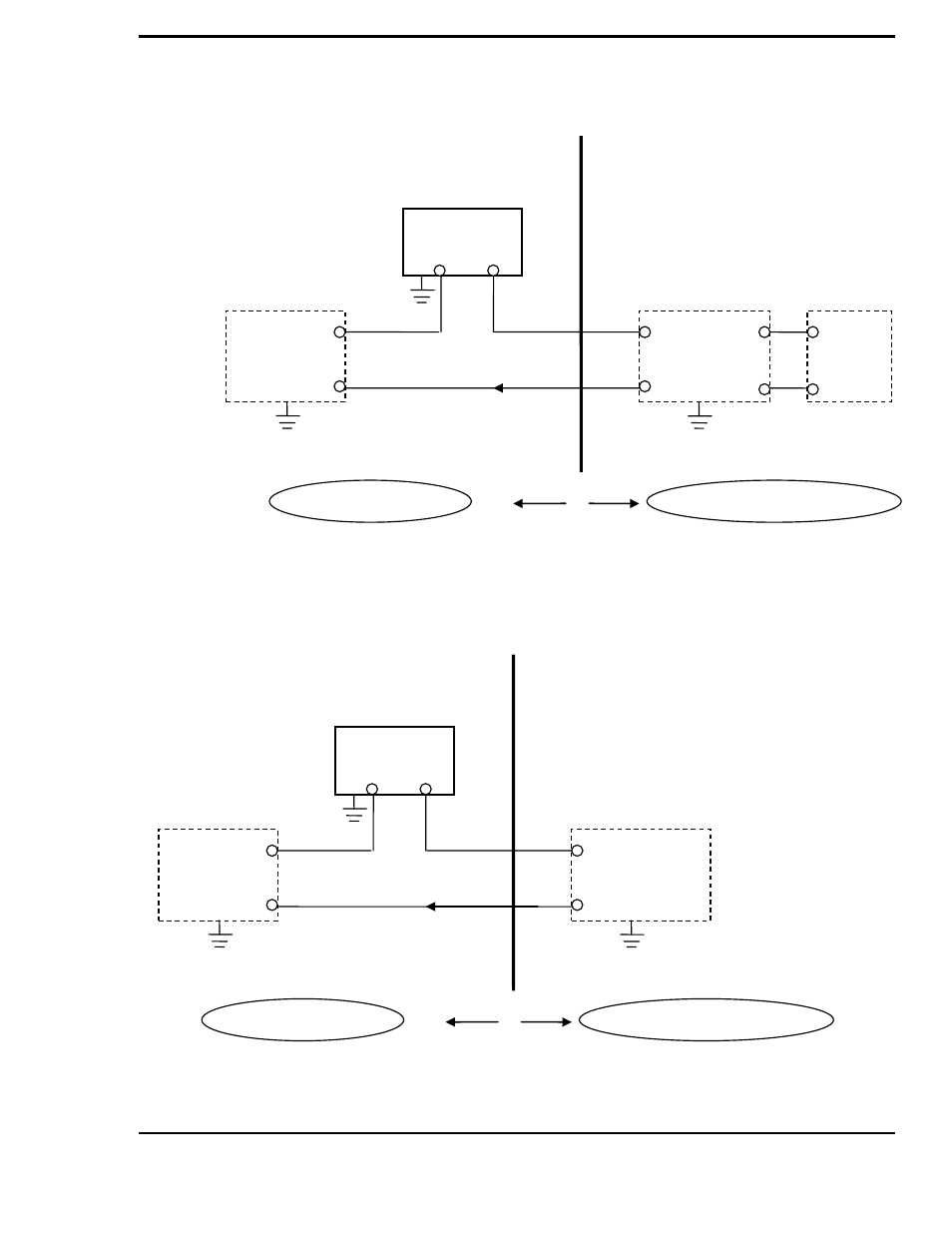

MLX Loop
Indicator
- +
+
2- Wire
Transmitter
-
+
FM Certified
Equipment
(non-incendive)
Non-Hazardous Area Hazardous Area
4-20mA
Group IIC, Zone 2 T4
Class I, II, III, Division 2
Groups A - D, F, G
[Non-incendive]
MLX Loop
Indicator
- +
+
2- Wire
Transmitter
-
+ +
Safety Barrier
- -
Non-Hazardous Area Hazardous Area
4-20mA
+
General
Purpose
Equipment
-
Group IIC, Zone 0
Class I, II, III, Division1 & 2
Groups A - G
[Intrinsically safe]
