ENGLISH

ENGLISH

Thank you for purchasing this Price Pfi ster product. All Price Pfi ster products
are carefully engineered, and factory tested to provide long trouble-free use
under normal conditions. This product is easy to install using basic tools and
our easy to follow illustrated instructions.

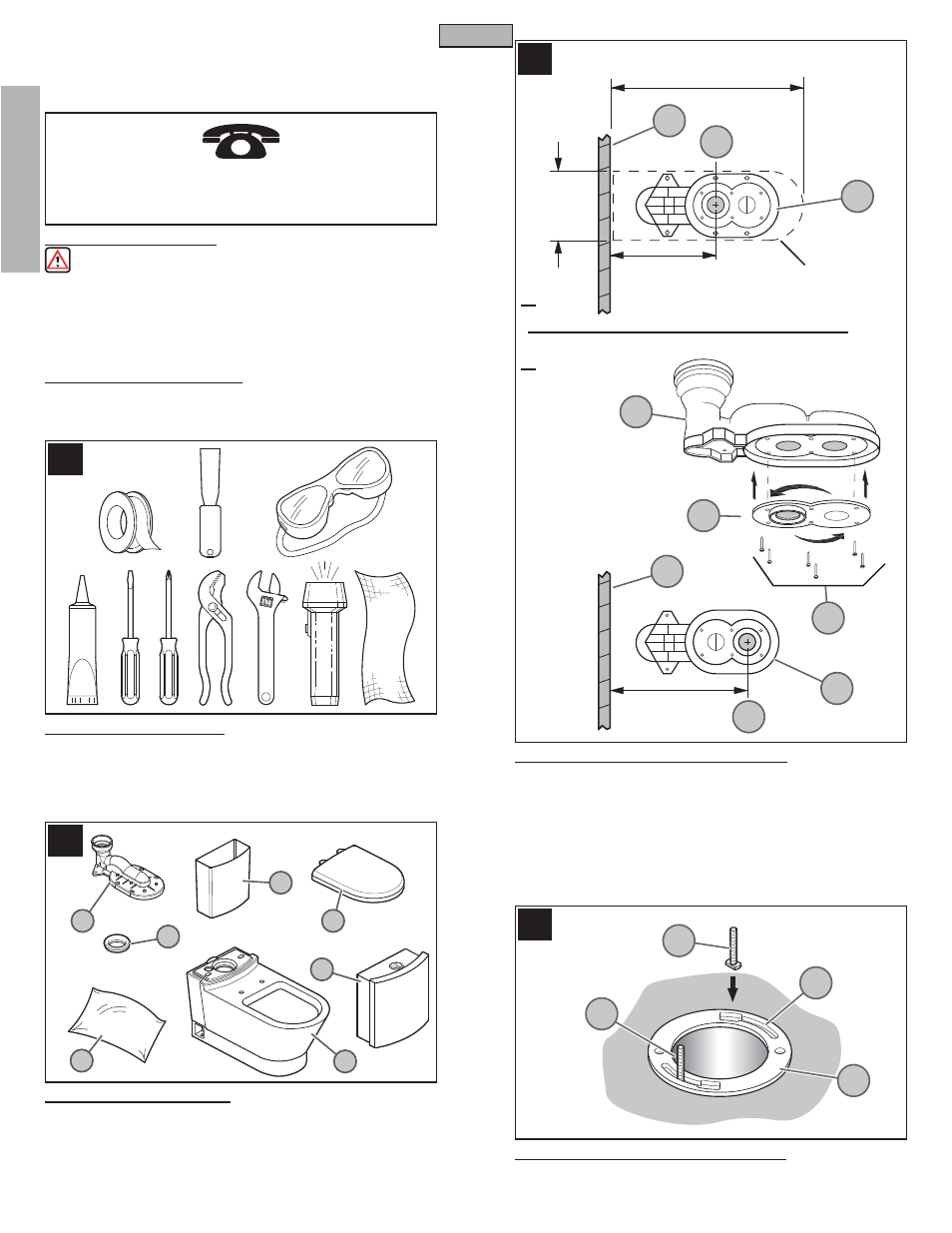

3 TOOLS RECOMMENDED

• FTFE Plumber’s Tape

• Spatula

• Safety Goggles

• Sealant

• Slotted screwdriver

• Phillips Screwdriver

• Pliers

• Adjustable wrench

• Flashlight

• Cloth
Your installation may require other additional tools.

4 CONTENTS OF THE BOX

A Seat Cover

B Outlet Connector

C Wax Ring

D Toilet Bowl

E Toilet Tank

F Toilet Cover

G Installation Kit: {Supply Valve, Flange, Hose, Rubber Gasket, [Tee Bolts (2), Nuts (2),
Washers (2)], [Brass Bolts (2), Brass Nuts (2)], [Toilet Screws (2), Washer (2) Plastic
Washer (2), Decorative Cap (2) Anchors (2)], [Optional Screws (2), Optional Anchors
(2), Optional Washers (2)]}

5 OUTLET CONNECTOR PREPARATION

Verify Waste Outlet Hole is either 12” (305 mm) (5A) or 16” (405 mm) (5B) from the
fi nished wall (5C). Toilet Mounting Dimensions are 10.04” X 22.78” (255 X 579 mm).
A. Outlet Connector (5D) comes assembled to accommodate a 12” (305 mm) Outlet
Hole (5A).
B. To accommodate a 16” (405 mm) Outlet Hole (5B), remove Mounting Plate (5E)
from the bottom of Outlet Connector (5D) by removing Mounting Screws (5F). Rotate
Mounting Plate (5E) 180º and replace onto Outlet Connector (5D). Secure by screwing
Mounting Screws (5F) as shown.

1 BEFORE PROCEEDING

WARNING: This product comes complete for installation. Read all the instructions

completely before proceeding. Price Pfi ster recommends calling a professional if you
are uncertain about installing this product!
This product should be installed in accordance with all local and state plumbing and
building codes. This product is heavy and fragile; use extreme care with all parts!

2 SHUT OFF WATER SUPPLY

Locate main water supply inlets and shut off the water supply valves. These are usually
found near the water meter. If you are replacing an existing toilet, remove the old toilet
and wax ring from the fl oor and clean the fl oor surface thoroughly.

For more information about the installation or care and warranty information,
please contact your local Black & Decker HHI representative in your country
or visit www.pricepfi ster.com/international

6 WASTE OUTLET HOLE PREPARATION

Place and align Tee Bolts (6A) into Flange Groves (6B) located on the Floor Flange
(6C) of Waste Outlet Hole as shown.

12”

305 mm

10.04”

255 mm

22.78”

579 mm

Mounting

Dimensions

16”

405 mm
