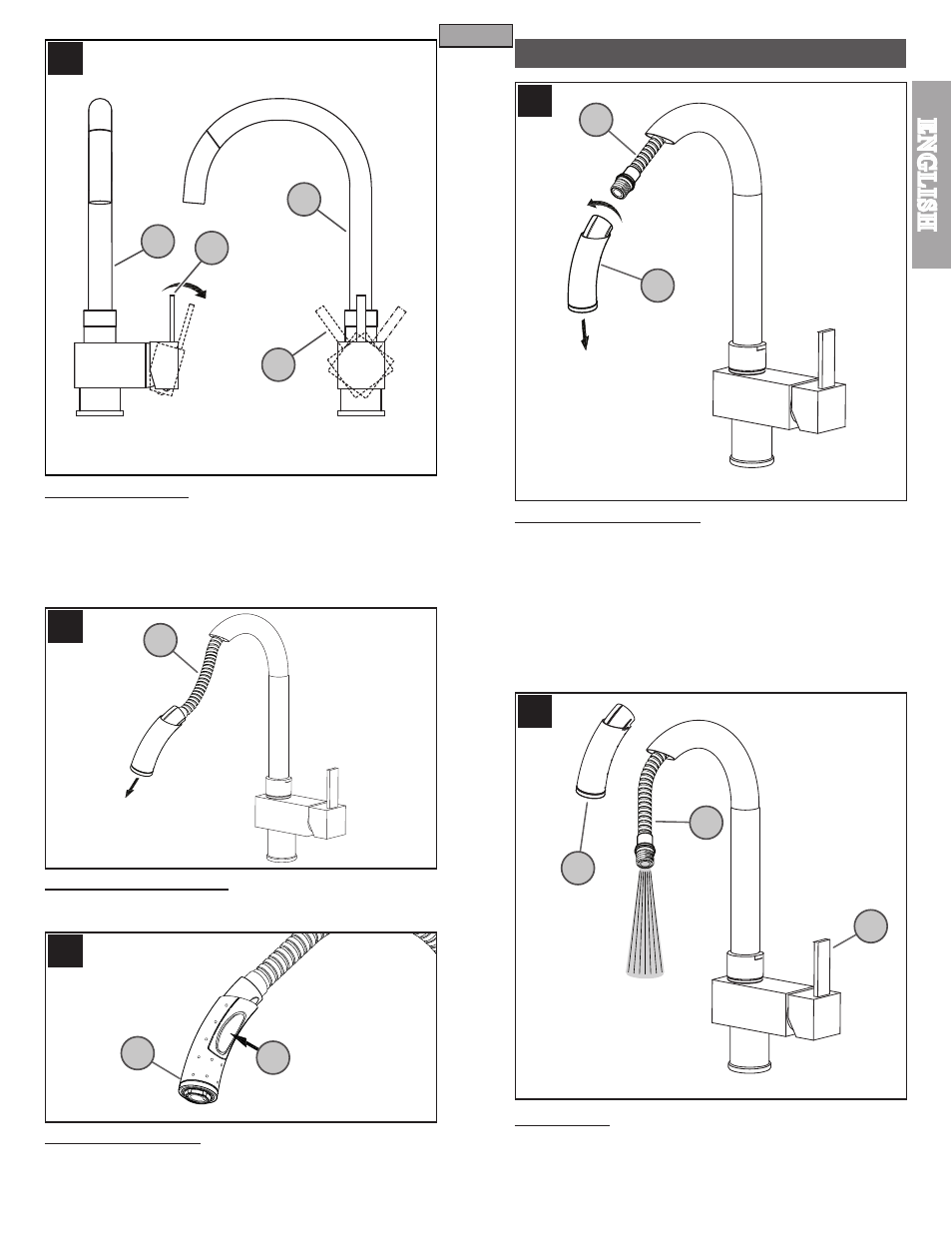

17 VALVE FUNCTION
By rotating the Lever Handle (17A) away from the Faucet Body (17B), the valve will be
activated allowing water to flow. The water flow will increase by continuing to rotate the
Lever Handle (17A). By rotating the Lever Handle away from you, the water temperature
will decrease to cold flow only. By rotating the Lever Handle towards you, the water
temperature will increase to hot flow only.
Note: Flush faucet before turning on valve (see step 21).
18 PULL-OUT OPERATION
The Pull-Out Hose (18A) can be pulled forward to spray water in any direction.
19 SPRAY OPERATION
To activate the spray mode, simply press the toggle button (19A) located on back of the
spray head (19B) while the faucet is in operation.
The faucet will always turn on in regular stream mode.
20 SPRAY HEAD REMOVAL
To prevent damage to the internal parts of your faucet from debris that may have collected
in the water lines, it will be necessary to flush the faucet. Flushing requires the removal
of the spray Head (20A). To remove the Spray Head (20A), hold Pull-Out Hose (20B)
and turn the Spray Head (20A) counterclockwise.
21 FLUSHING
Lift the Valve Lever Handle (21A) up to the full on position. Run water for one minute.
Repeat in hot and cold positions. Reassemble the Spray Head (21B) to the Pull-Out
Hose (21C) by turning Spray Head (21B) clockwise.
Caution: do not over tighten spray head / pull-out hose.
