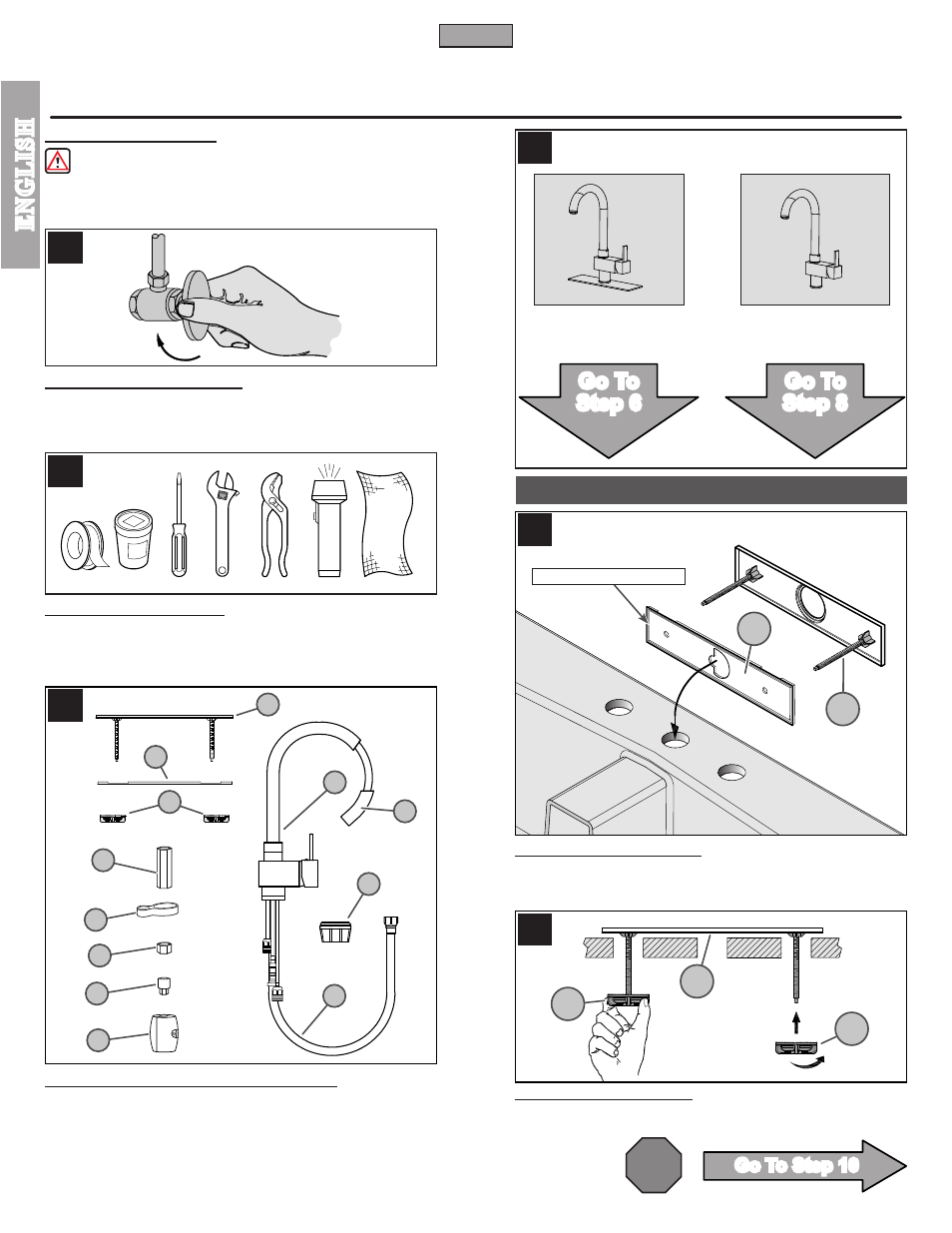

3 HOLE INSTALLATION

Thank you for purchasing this Price Pfister product. All Price Pfister products are carefully engineered, and factory tested to

provide long trouble-free use under normal conditions. This product is easy to install using basic tools and our easy to follow

illustrated instructions. If you have any questions regarding this product, call 1-900-Pfaucet (1-900-932-9239).

1 BEFORE PROCEEDING

WARNING: Read all the instructions completely before proceeding. Price Pfister

recommends calling a professional if you are uncertain about installing this product!

This product should be installed in accordance with all local and state plumbing and

building codes.

2 SHUT OFF WATER SUPPLY

Locate water supply inlets and shut off the water supply valves. These are usually found

under the sink or near the water meter. If you are replacing an existing faucet, remove

the old faucet from the sink and clean the sink surface thoroughly.

3 TOOLS RECOMMENDED

• PTFE Plumber's Tape • Plumber's putty

• Flathead screwdriver

• Adjustable wrench

• Pliers

• Flashlight

• Cloth

Your installation may require new supply lines and / or shut-off valves or other additional

tools.

4 CHECKING THE CONTENTS OF THE BOX

Upon opening the box, check to ensure that all of the following items are included:

A Faucet Body

B Spray Head

C Pull-Out Hose

D Locknut (Long)

E Hose Guide

F Locknut (Short)

G Adaptor Nut

H Weight

J PVC Washer

K Deckplate

L Putty Plate

M Wingnut (2x)

If any of these items are missing, please contact Price Pfister Consumer Services

at 1-900-Pfaucet (1-900-932-9239).

STOP

Go To Step 10

These instructions cover two different

installations

Go To

Step 8

Option 2:

1 Hole With Single Post

Installation

Go To

Step 6

Option 1:

3 Hole With Deckplate

Installation

6 INSTALLING DECKPLATE

Ensure that Plastic Putty Plate (

6A) is pressed on to Deckplate (6B). Place a bead

of plumber’s putty in the bottom groove along the outer edge of the Putty Plate (

6A).

Install Deckplate (

6B) over the three holes in your sink.

7 SECURING DECKPLATE

From underneath sink, hand tighten Wing Nuts (

7A). Caution: do not over-tighten wing

nuts. Remove any excess putty from around the outside edge of Putty Plate (

7B).

BOTTOM GROOVE
