6

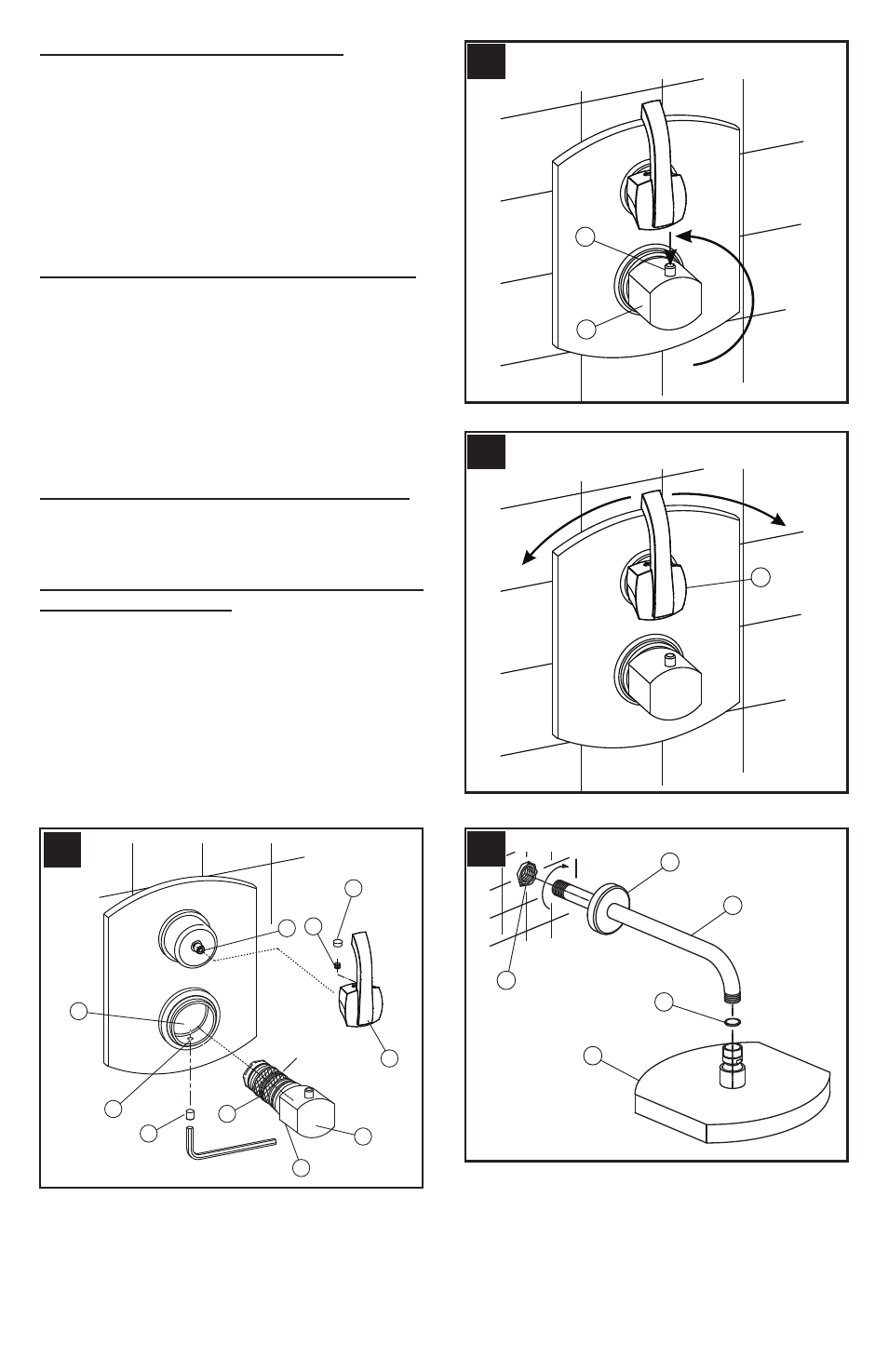

10 HANDLE ATTACHMENTS (Fig.H)

Lubricate the O-Rings (1) on Knob Assembly (2) using

provided Grease. Insert Knob Assembly (2) into Cartridge

Housing (3) aligning the Cartridge Hole (4) with Valve Hole

(5). Secure Knob Assembly (2) using Set Screw (6).
With Diverter Stem (7) set at midpoint position (Center-

Closed Position), place Lever Handle (8) onto Diverter

Stem (7) and secure with Set Screw (9) (do not over

tighten). Install Decorative Cap (10). To remove handles,

reverse steps.
11 TEMPERATURE KNOB FUNCTION (Fig.J)

By rotating Temperature Knob (1) clockwise, the water

temperature will decrease to fully cold. The water

temperature can be increased by rotating Temperature

Knob (1) counterclockwise.
The Temperature Knob (1) is regulated for the water

temperature not to to exceed 100°F (38°C) to prevent burns.

To increase the water temperature, press Button (2) and

rotate the Temperature Knob (1) in the counterclockwise

direction.
12 DIVERTER CONTROL FUNCTION (Fig.K)

Diverter Valve is closed at midpoint position. Water can be

opened by turning the Lever (1) clockwise for shower and

counter clockwise for tub.
13 SHOWER ARM AND SHOWER HEAD

INSTALLATION (Fig.L)

Insert the end of Shower Arm (1) through the Shower

Flange (2). Apply PTFE plumber's tape to both ends of

Shower Arm (1) according to manufacturer's instructions.

Screw the long end of Shower Arm (1) into pipe (3) elbow

inside the wall. Slide Shower Flange (2) tight to the wall.

Screw the shower head (4) to the Shower Arm (1), placing

the Washer (5) in between.

GREASE

4

6

3

1

5

2

8

10

7

9

H

HOT

COLD

1

2

J

1

TO TUB

OFF

TO SHOWER

K

5

2

3

1

4

L
