Dual RTD Option (platinum)

F 2 _ _ – 2 _ _ _ – _ _ _ _ (100

RTD, curve selectable)

F 2 _ _ – 3 _ _ _ - _ _ _ _ (500

RTD, curve selectable)

F 2 _ _ – 4 _ _ _ - _ _ _ _ (1000

RTD, curve selectable)

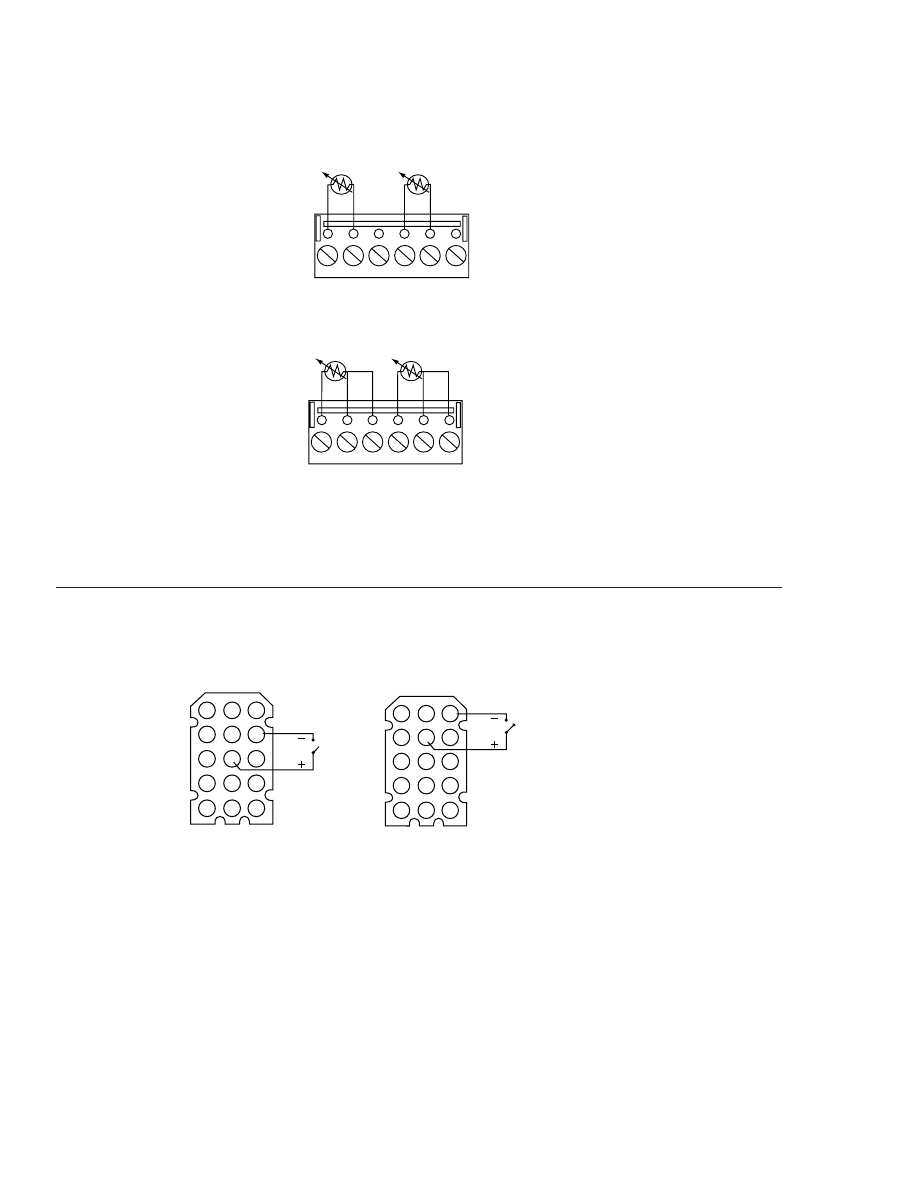

Figure 10a — 2-wire RTD.

Figure 10b — 3-wire RTD: (will function as a 2-wire RTD).

Note: If your chosen software application does not require two sensor inputs, it is not necessary to wire Input 2. For

specific information, consult the application guide for the application you are using.

Event Inputs 1 and 2

Note: The following illustration is a view of the back of the controller, not of the mating connector.

F 2 _ _ - _ _ _ _ - _ _ _ _

Figure 10c — Switched DC (two per unit, non-isolated).

Note: Not all software applications require event inputs 1 and 2. For specific information consult the application

guide for the application you are using.

1

2

3

4

5

6

7

8

11

9

10

11

12

15

13

14

15

Event Input 2

1

2

3

4

5

6

7

8

8

9

10

11

12

12

13

14

15

Event Input 1

1

S1

S2

S3

2

3

4

5

6

Input 1 Wiring

Input 2 Wiring

S1

S2

S3

1

S1

S2

S1

S2

2

3

4

5

6

Input 1 Wiring

Input 2 Wiring
