Proface APL3000B - Node Box PC - Manual (Page 20)

20
Power Connector
The following parts are used in the power
connector (plug).
When PL is mounted vertically, a right-angle
power connector is recommended.Use the
following right-angle power connectors.
1. Wiring power cords with a spring-type
power connector
• When the FG terminal is connected, be
sure the wire is grounded. Not
grounding the PL unit will result in
excessive noise. Use your country’s
applicable standard for grounding.
Power Cord Specifications
Use copper conductors only.
Wiring
When connecting the power code, use the
following items when performing wiring.
(Items are made by Phoenix Contact.)

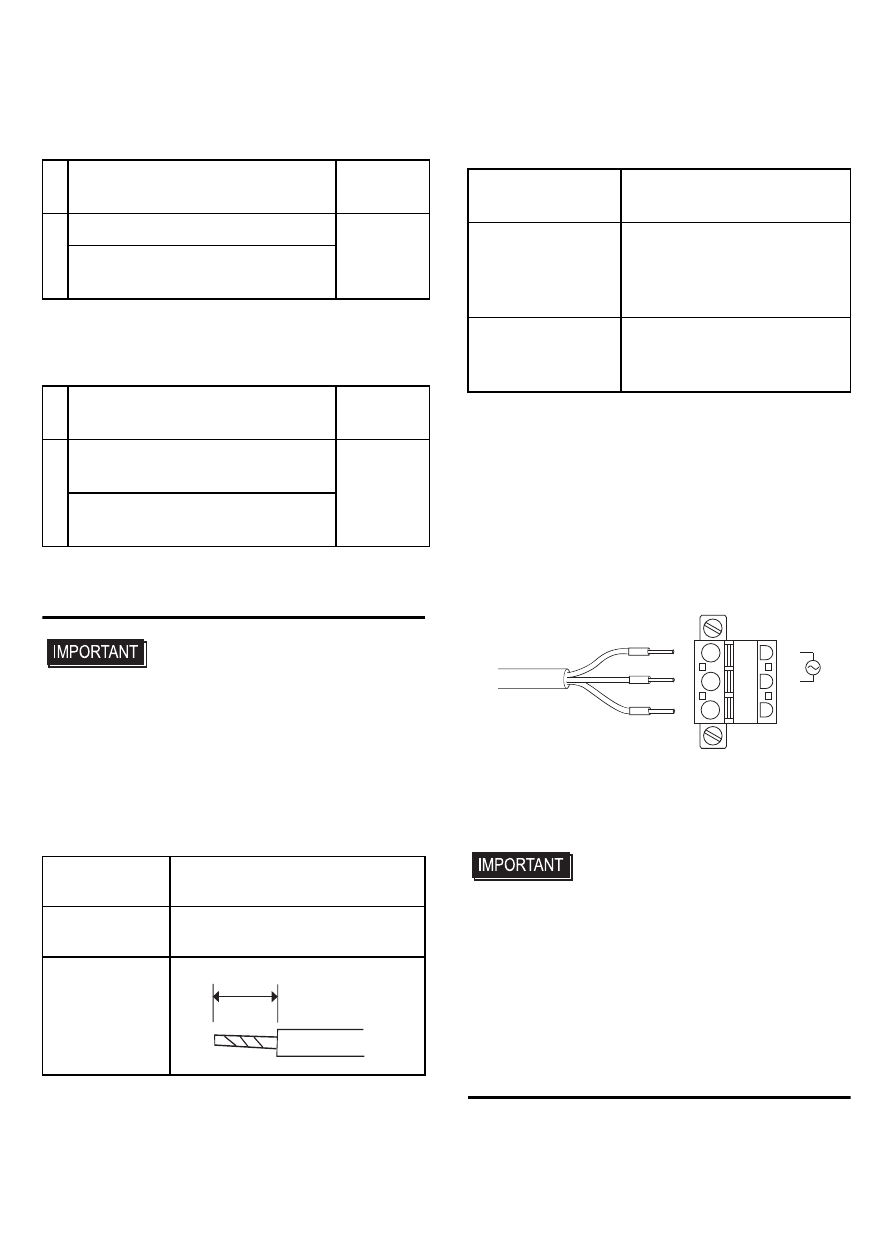

Connecting the Power Cord
(1) Confirm that the power is not supplied to
the PL unit.
(2) Push the Opening button with a small slot
screw driver to open the desired pin hole.
(3) Insert each pin terminal into its each
hole. Release the Opening button to
clamp the pin place.
(4) After inserting all three pins, insert the
Power Plug into the Power Connector at PL.
Fix the plug with two minus screws.
• Confirm that all wires are connected
correctly.
• The torque required to tighten these
screws is 0.5 to 0.6 N
•m.
• To prevent the possibility of a terminal
short, use a pin terminal that has an
insulating sleeve.
2. Power Supply Cautions
• Input and Output signal lines must be sepa-
rated from the power control cables for
operational circuits.
Accompanying
Power Connector
Shape
AC typ
e CA7-ACCNL-01 of Pro-face
Straight
Spring
FKC 2,5/3-STF-5,08 of
Phoenix Contact
Optional
Power Connector
Shape
AC typ
e
CA7-ACCNLR-01 of
Pro-face
Right-
angle
Spring
FKCVR 2,5/3-STF-5,08 of
Phoenix Contact
Power Cord
Diameter 0.75 to 2.5mm 2
(18 - 12 AWG)
Conductor
Type
Simple or Stranded Wire
*1
*1 If the Conductor’s end (individual) wires are
not twisted correctly, the end wires may either
short against each other, or against an
electrode.
Conductor
Length
10mm [0.39in]
Recommended
Driver
SZS 0.6x3.5 (1205053)
Recommended
Pin Terminals
AI 0.75-10GY(3201288)
AI 1-10RD (3200182)
AI 1.5-10BK (3200195)
AI 2.5-12BU (3200962)
Recommended
Pin Terminal
Crimp Tool
CRIMPFOX ZA3
(1201882)
L
N
FG
Opening Button
Black
White
Green/Yellow
AC power supply cable
