SaltDogg 92420A, -30A Series Under Tailgate Spreader (with Serial No. 8000) User Manual
Page 4

4
TM
1
3
5
7
4
6
2
Weld this bar to
truck frame
Weld these
rods together
at final assembly.

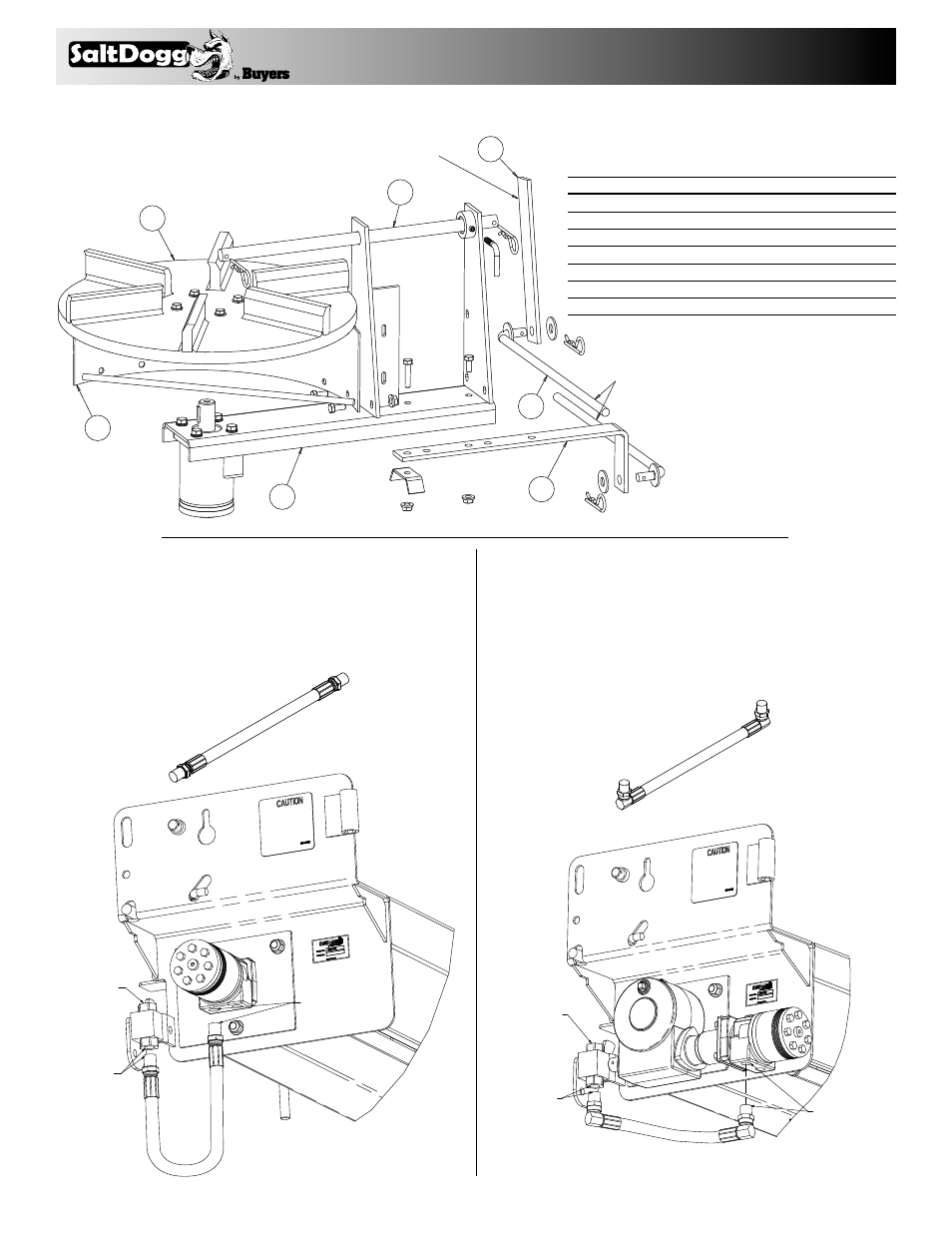

Parallel Linkage, Spinner Frame & Bar
Installation Drawings (cont.)
Bill of Materials
1 1 Spinner Frame Assy.
3001471
3006679
2 1 Spinner Shield
924F0015 3006659
3 1 Spinner disk Assy.
3001472
3001472
4 2 Linkage Rods, Welded
924F0012 924F0012
5 1 Hinge Rod
924F0018 3006646
6 1 Spinner Lug
924F0013 3006645
7 1 Bar
924F0014 924F0014
item qty. description
carbon
stainless
92420A & 92420SSA
Direct Drive Under Tailgate Spreaders
Using hose number 3008112, insert one end into
the bottom of the ball valve assembly. Insert the
other end into the LH port (when looking from rear)
of the hydraulic motor.
92430A & 92430SSA
5:1 Gearbox Under Tailgate Spreaders
Using hose number 3008113, insert one end into
the bottom of the ball valve assembly. Insert the
other end into the LH port (when looking from rear)
of the hydraulic motor.
Attach inlet
flow here
Insert one
into bottom
of ball valve
Insert other
into port on
hydraulic
end of hose
end of hose
motor
3008113
3008112
Attach inlet
flow here
Insert one
into bottom
of ball valve
Insert other end
of hose into port
on hydraulic motor
end of hose
