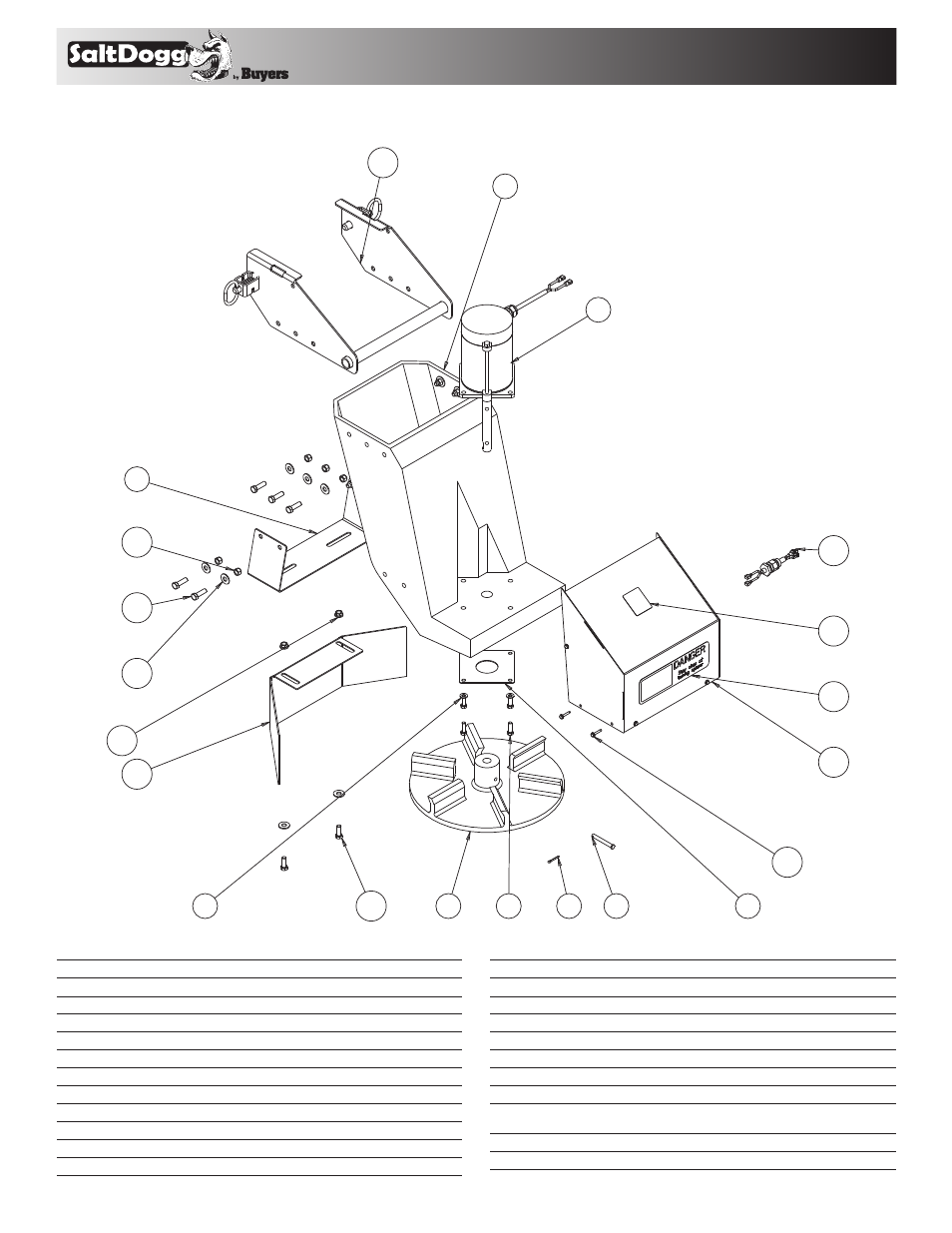

Chute Assembly
Bill of Materials
ITEM NO. PART NO. QTY. DESCRIPTION
1 3012374 1 Chute, SHPE4000
2 3014078 1 Motor 12VDC, .5 HP Spinner
3 3012802 1 Retainer, Motor, Chute
4 - 4 Screw, HEX HD CAP 5/16-18 x 1.0 SST
5 - 4 Washer, 5/16 SAE SST
6 3012393 1 Spinner, 14" Poly CW
7 3007113 1 Pin, Clevis, 5/16 x 2-1/2, .141 Hole, ZN
8 - 1 Cotter Pin, 1/8 x 1, ZN
9 3012397 1 Bracket, Shield Chute
10 - 10 Screw, HHC-3/8-16 x 1.25 SST
11 - 12 Washer, Flat 3/8 USS SST
1
2
3 4 5 6 7 8
9
10
11
12
13
14
15
16
17
18
19
20
21
ITEM NO. PART NO. QTY. DESCRIPTION
12 - 10 Nut, Nylock 3/8-16 x 7/16 SST
13 3012396 1 Shield Chute
14 - 2 Screw HHC 3/8-16 x 1, 304 SST
15 3001255 2 Nut, Hex Flange 3/8-16 SST
16 3019255 1 Chute Hanger Weldment
17 3012834 1 Cover Weldmentt, Chute
18 3006753 1 Wire Harness, Chute
19 - 8
Screw, Sheet Metal #12x1.0 Hex Washer
HD SST
20 3007844 1 Decal, "DANGER STAY CLEAR"
21 3002631 1 Label, "NO STEP"
