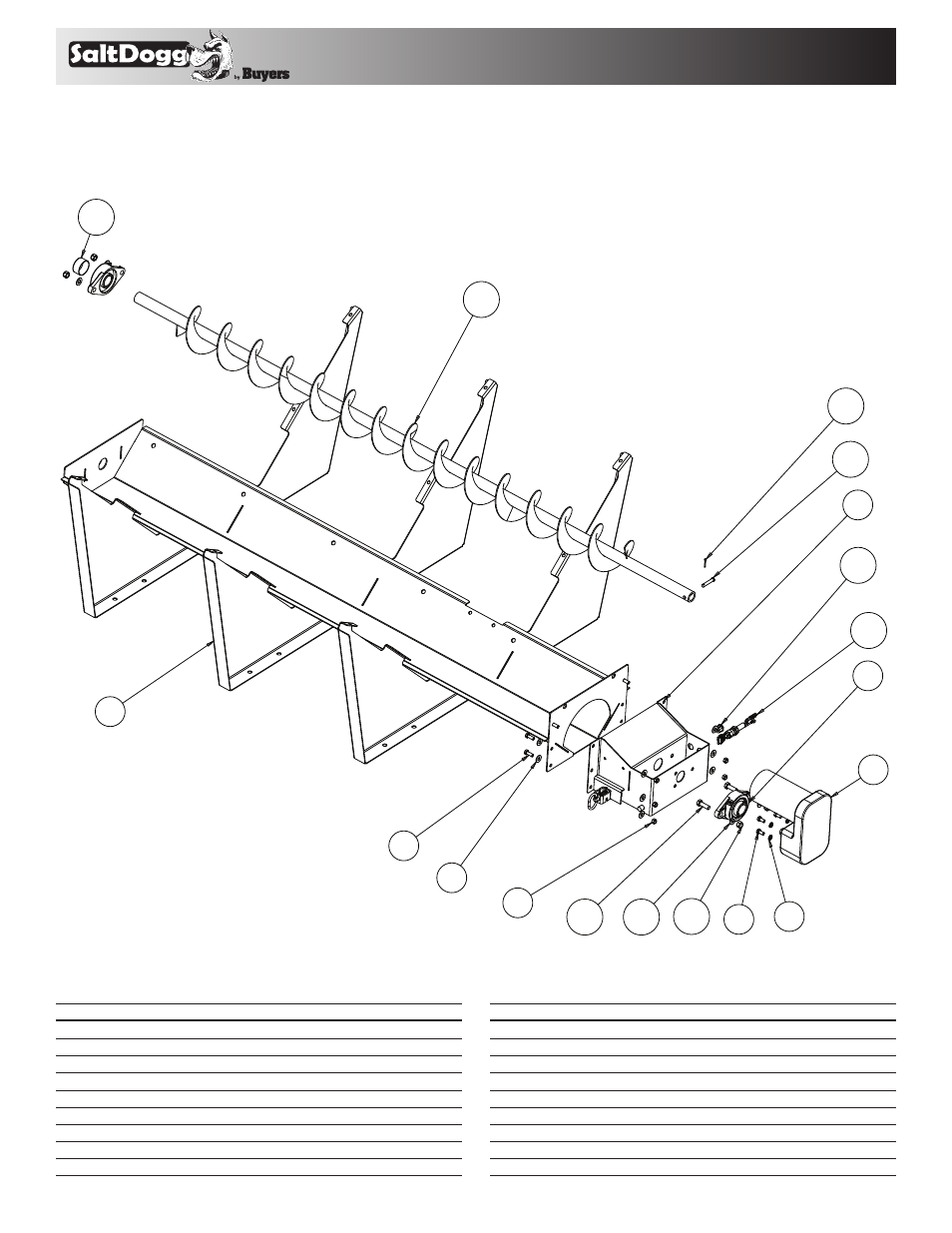

Repair Parts-Trough Assembly
Bill of Materials
1
3013270
1
Trough Weldment, SHPE4000
2
3012093
1
Bracket, Weldment Gear Motor
3
-
10
Washer, Flat 3/8 USS SST
4
-
4
Screw, HHC 3/8-16 x 1 304 SST
5
-
6
Nut, Nylock 3/8-16 x 7/16 SST
6
3012057
1
Gear Motor, Auger SHPE
7
-
3
Washer, Lock RHS - 3/8 SST
8
-
3
Screw, HHC - 3/8-16 x 3/4 SST
9
2F24SCR
2
Bearing Flange 2 Holes, 1.5 ID Set Screw
item
part no.
qty.
description
10
-
2
Screw, HHC - 1/2-13 x 1 SST
11
-
4
Washer, Flat 1/2 ID SST
12
-
4
Nut, Nylock 1/2-13 ZN
13 3012001
1
Auger SHPE4000
14
-
1
Pin, Clevis, 3/8 x 2, 1038 ST, YZN
15
-
1
Cotter Pin, 1/8 x 1 ZN
16 3006844
1
Wire Harness, Spreader
17 3007821
1
Strain Relief Bushing
18 3013541
1
Cap Vynil 2.0 ID 1.0 Lg
item
part no.
qty.
description
