Bill of Materials
ITEM PART NO. QTY. DESCRIPTION
1
3008001 1 HOPPER POLY 2 CU. YA.
3025166 1 HOPPER POLY 2 CU. YA., RED
3025168 1 HOPPER POLY 2 CU. YA., YELLOW
2 3011865 1 TROUGH ASSEMBLY, SHPE
3 3007115 14 WASHER, FLAT 3/8 X 1.5 X.048 SST
4 — 14 WASHER, LOCK RHS-3/8 SST
5 — 14 SCREW, HHC-3/8-16 X 3/4 SST
6 3006959 2 BAFFLE, SHPE1500
7 3007731 1 BRACKET VIBRATOR, LONG SST
8 — 2 NUT, NYLOCK 3/8-16 X 7/16 SST
9 3007821 1 STRAIN RELIEF BUSHING
10 3007236 1 COVER GEARMOTOR

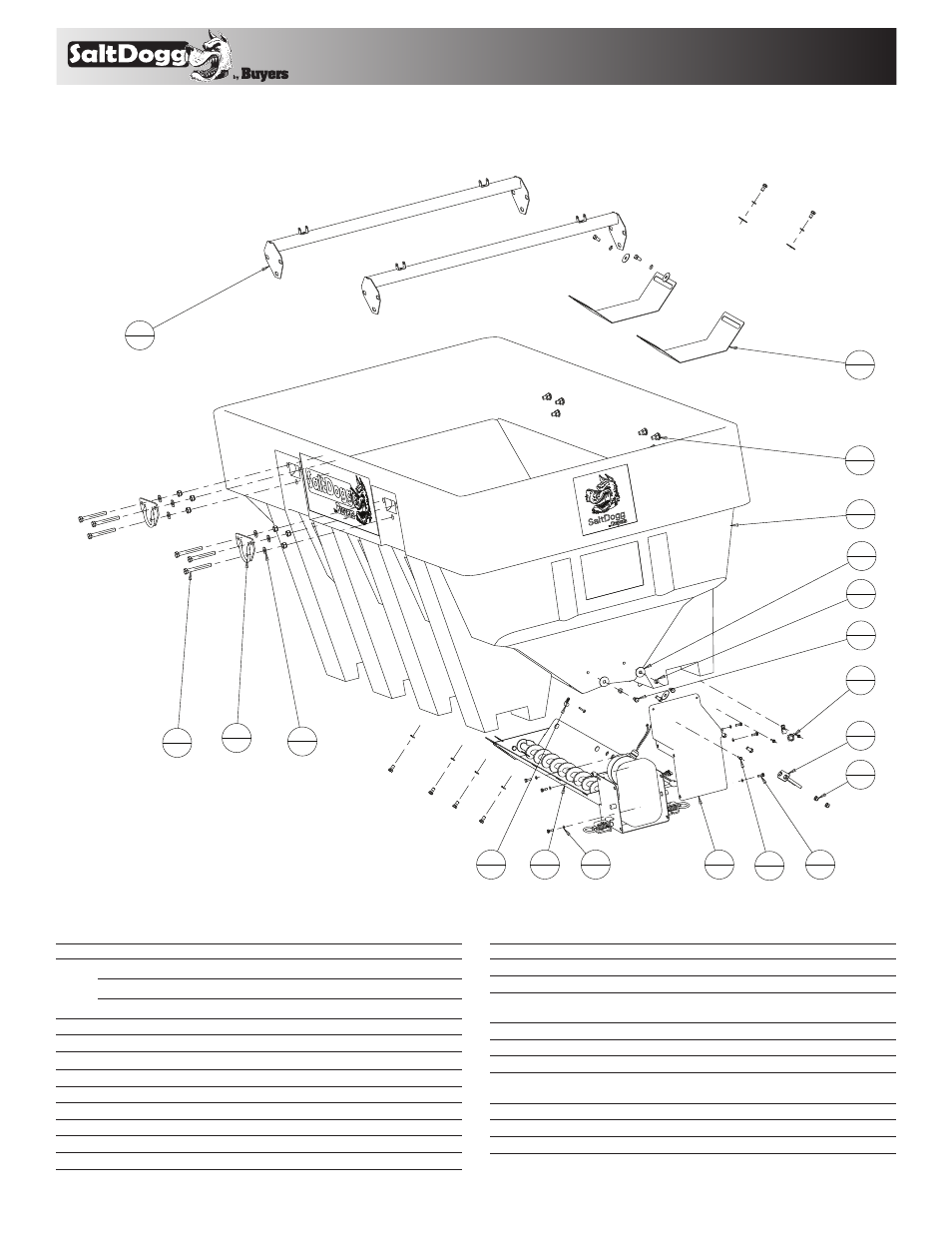

Repair Parts-Hopper Assembly
1
1
2
1
3
14
4
14
5
14
6
2
7
1
8
2
9
1
10
1
11
6
12
6
13
4
14
2
15
4
16
2
17
12
18
12
19
12
ITEM PART NO. QTY. DESCRIPTION
11 — 6 WASHER, 1/4 IN. SPRING LOCK SST
12 — 6 SCREW, CAP 1/4-20 X 3/4 SST
13 3007522 4 SCREW, SHEET MTL #12x1.0 HEX
WASHER HD SST
14 4375 2 CLAMP, HOSE .4375, 9/32 HOLE
15 3022220 4 TIE-DOWN WELDMENT
16 3022230 2 CROSS MEMBER
17 — 12 SCREW, HEX HEAD CAP 1/2-13 X 4.00
GR 5 ZN
18 — 12 WASHER, FLAT 1/2" SAE ZINC
19 — 12 NUT, NYLOCK 1/2-13 ZINC
3006589 1 LUBRICANT ANTISEIZE MOLY
