SaltDogg SHPE2000 Series Electric Drive Poly Hopper Spreader v.2 - Manual (Page 8)

8
TM
5
6
4
12
11
3
7
8 9
10
1
2a 2b 2c
2d 2e
2g
2
2f
2h
9049 Tyler Blvd. • Mentor, Ohio 44060
Phone (440) 974-8888 • Fax (440) 974-0165
Toll-Free Fax 800-841-8003 • saltdogg.com
3012897 Rev. A

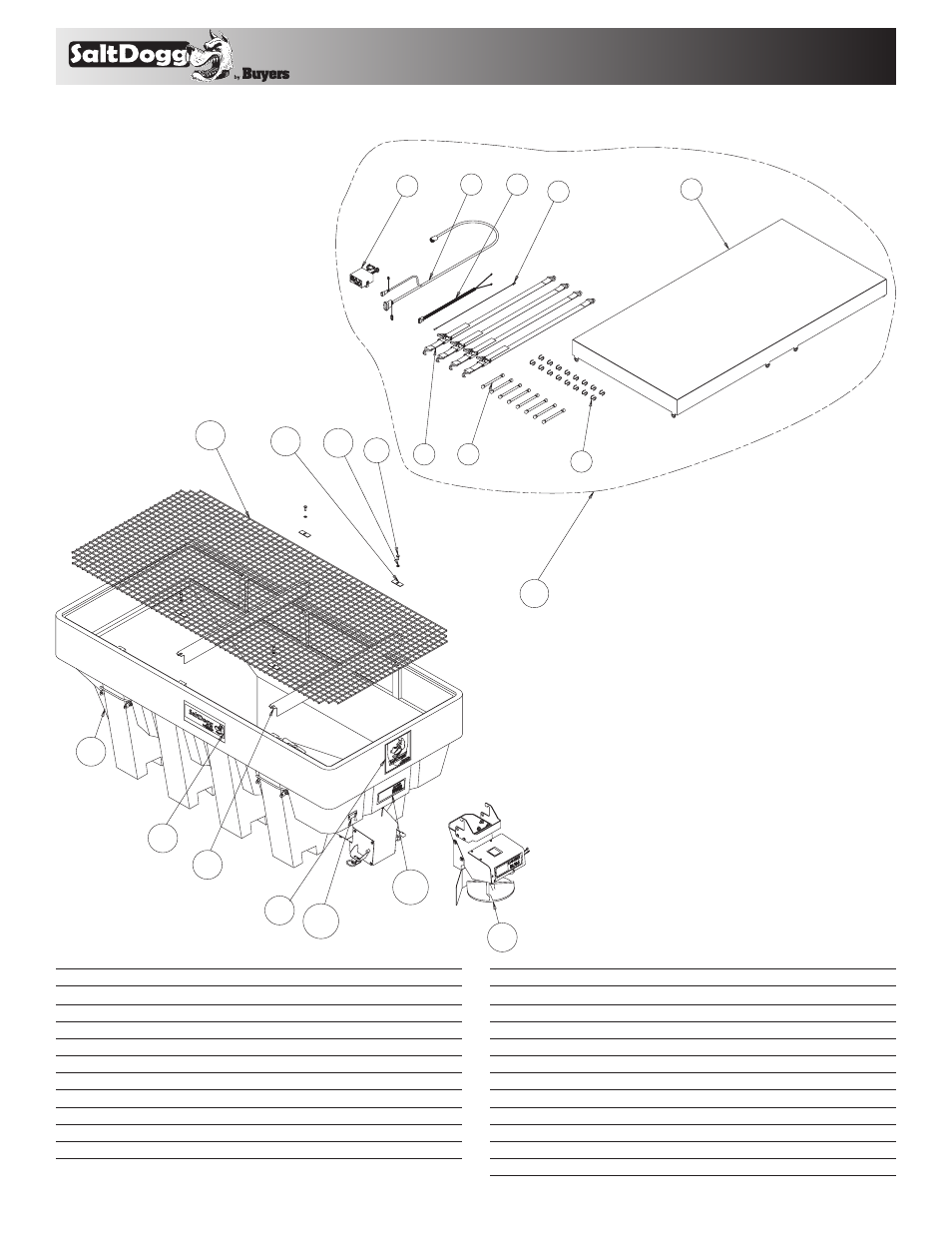

Bill of Materials
1 3008011 1 Hopper Poly 2 cu. yards Assembly
2 3008884 1 Accessories Box, SHPE2000
2a 3006620 1 Controller, Buyers Logo
2b 3006724 1 Wire Harness, Main
2c 3006842 1 Power Cable, Control Box
2d 1496505 1 Hold Down Kit, Spreader (4 Straps)
2e TS9 8 Strap, Rubber Tarp 9"
2f 9225 16 S-Hook, 2.5" ZN, Tarp Strap
2g 3008838 1 Tarp SHPE2000
2h 0203700 1 Wire Assembly, 36 Long
item part no. qty. description item part no. qty. description
3 3007412 1 Chute Poly Standard SHPE
3 3007527 1 Chute Poly Extended SHPE
4 3006839 1 Decal, SaltDogg, Rear
5 3006911 2 Decal, SaltDogg, Side
6 3008391 2 Support, Top Screen SST
7 3008390 1 Screen, SHPE2000
8 3008787 4 Retainer, Screen
9 — 4 Washer, Lock RHS - 3/8 SST
10 — 4 Screw, HHC 3/8 - 16 x 304 SST
11 9240132 1 Decal #2, Danger Before SVCE
12 — 2 Screw, Sheet MTL #12 x 3/4 Hex Washer HD SST
Repair Parts-Spreader
