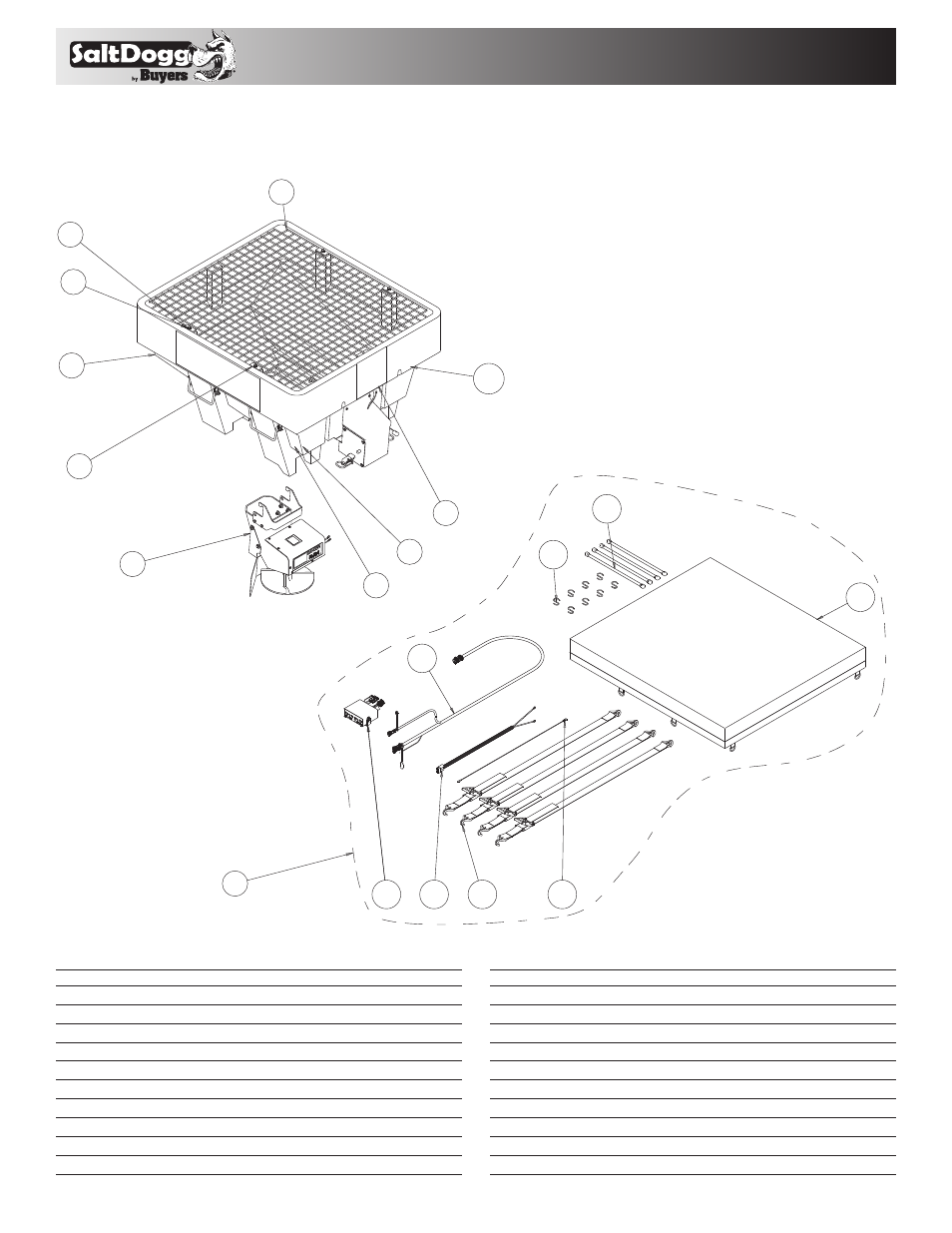

Repair Parts - Spreader Assembly
Bill of Materials
item part no. qty. description
1 3011878 1 Hopper Assembly, SHPE0750
2 3007412 1 Standard Chute, Poly SHPE1500
2 3007527 1 Extended Chute, Poly SHPE1500
3 3011382 1 Plate, Serial No. SHPE0750 Series
4 – 2 Screw, Sheet Mtl #12X1.0 Hex Washer HD SST
5 9240132 1 Decal #2, Danger Before SVCE
6 3011727 1 Screen, Flat SHPE0750
7 3008787 4 Retainer, Screen
8 – 4 Washer, Lock RHS-3/8 SST
9 – 4 Screw, HHC 3/8-16 X 1 304 SST
item part no. qty. description
10 3012898 1 Decal, Check Straps
11 3021239 1 Hardware Kit
12 3014199 1 Controller, SHPE, SaltDogg
13 3006724 1 Wire Harness, Main
14 3006842 1 Power Cable, Control Box
15 1496505 1 Hold Down Kit, Spreader (4 Straps)
16 3011370 1 Tarp SHPE0750
17 0203700 1 Wire Assembly, 36" Long
18 9225 8 S-Hook, 2.5" ZW, Tarp Strap
19 TS20 4 Strap, Rubber Tarp 20", (27" Max)
2
3
4
5
1
6
7
8
9
10
11
12
13
14 15
16
17
18
19
