Bill of materials, Tailgate auger tgs07 hopper assembly – SaltDogg TGS07YEL Salt Spreader User Manual
Page 7
7
TM
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
2
4
5
3
6
7
8

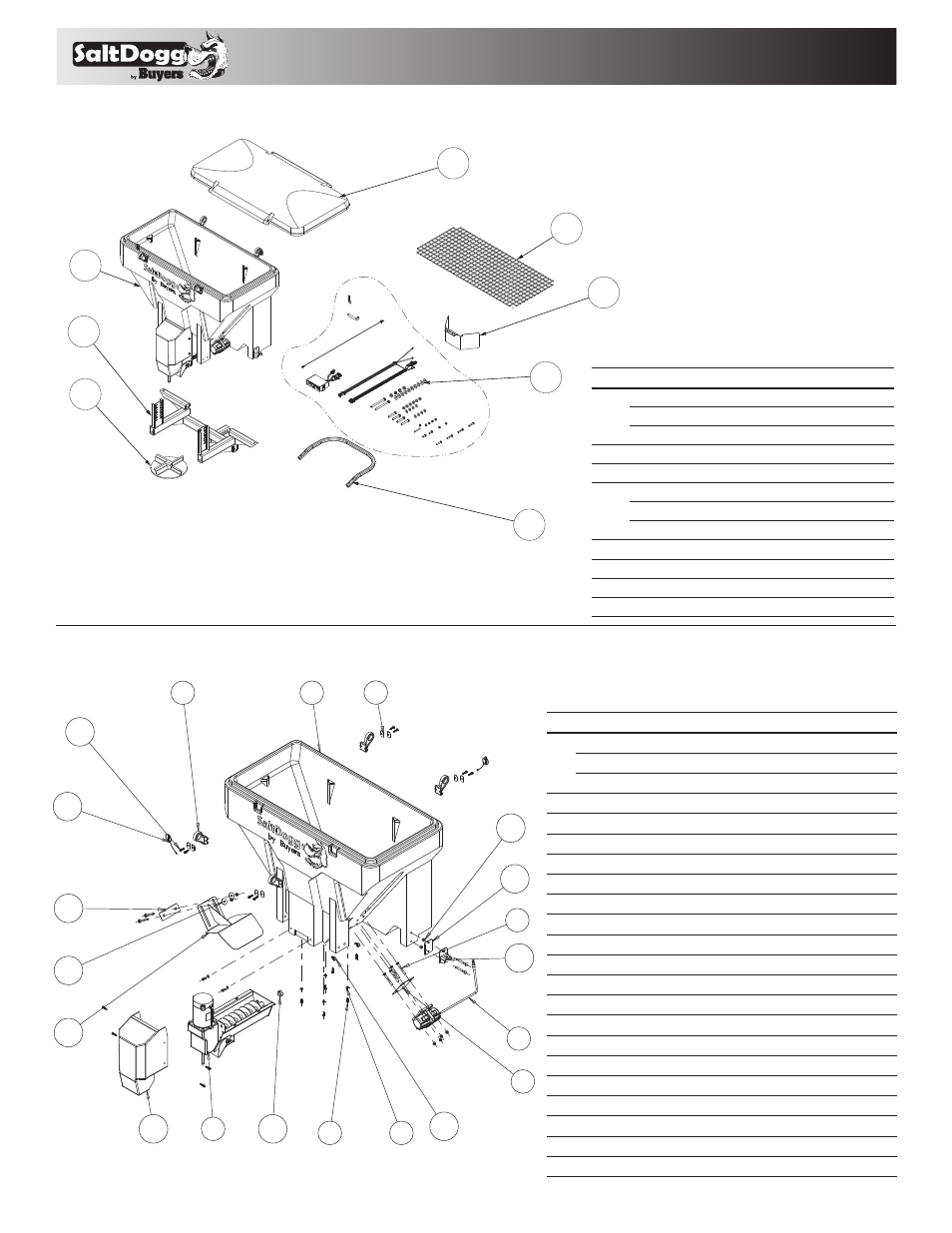

Tailgate Auger
TGS07 Hopper Assembly
ITEM
PART NO.
QTY. DESCRIPTION
1
3015380
1
HOPPER ASSEMBLY, TGS07
3026561
1
HOPPER ASSEMBLY, RED
3026563
1
HOPPER ASSEMBLY, YELLOW
2
3015859
1
FRAME, HITCH MOUNT
3
3020207
1
HARDWARE BOX TGS07
4
3015926
1
LID, TGS07
3026566
1
LID, RED
3026567
1
LID, YELLOW
5
3015707
1 SHIELD TGS07
6
3019561
1
SPINNER, 12 IN TGS
7
3018923
1
DISC PROTECTOR
8
3018781
1
SCREEN TGS07
Bill of Materials
ITEM
PART NO.
QTY. DESCRIPTION
1
3015379
1 HOPPER TGS07
3026560
1 HOPPER, RED
3026562
1 HOPPER, YELLOW
2
3015383
1 TROUGH ASSEMBLY TGS07
3
FWF031075006SS
6 WASHER, 5/16 SAE SST
4
3006721
6 SCREW, HEX HD, 5/16-18 X 3/4 GR5 S
5
3007416
1 VIBRATOR 200 LBS 12 VDC
6
3017030
1 RETAINER, VIBRATOR
7
3017028
10 BOLT, CRG, 3/8-16x3.25 SST
8
3016021
4 HINGE, LID TGS07
9
3016983
8 RETAINER, HINGE
10
3015925
14 SCREW #14X1.25 SST
11
3015694
1 MOTOR COVER TGS07
12
3016670
2 BRACKET DRAW, WELDMENT
13
3017029
2 RETAINER, DRAW BRACKET
14 FNE038016044SS 10 NUT, NYLOCK 3/8-16 X 7/16 SST
15
3016979
2 PIN, 3/16 LYNCH
16
4375
2 CLAMP, HOSE .4375, 9/32 HOLE
17
3017984
1 CAP ROUND 1.312 ID VINYL BLACK
18
3018773
1 BAFFLE WELDMENT TGS07
19
3018922
1 RETAINER, BAFFLE
20
3007115
2 WASHER, FLAT 3/8 X 1.5 X.048 SST
Bill of Materials
