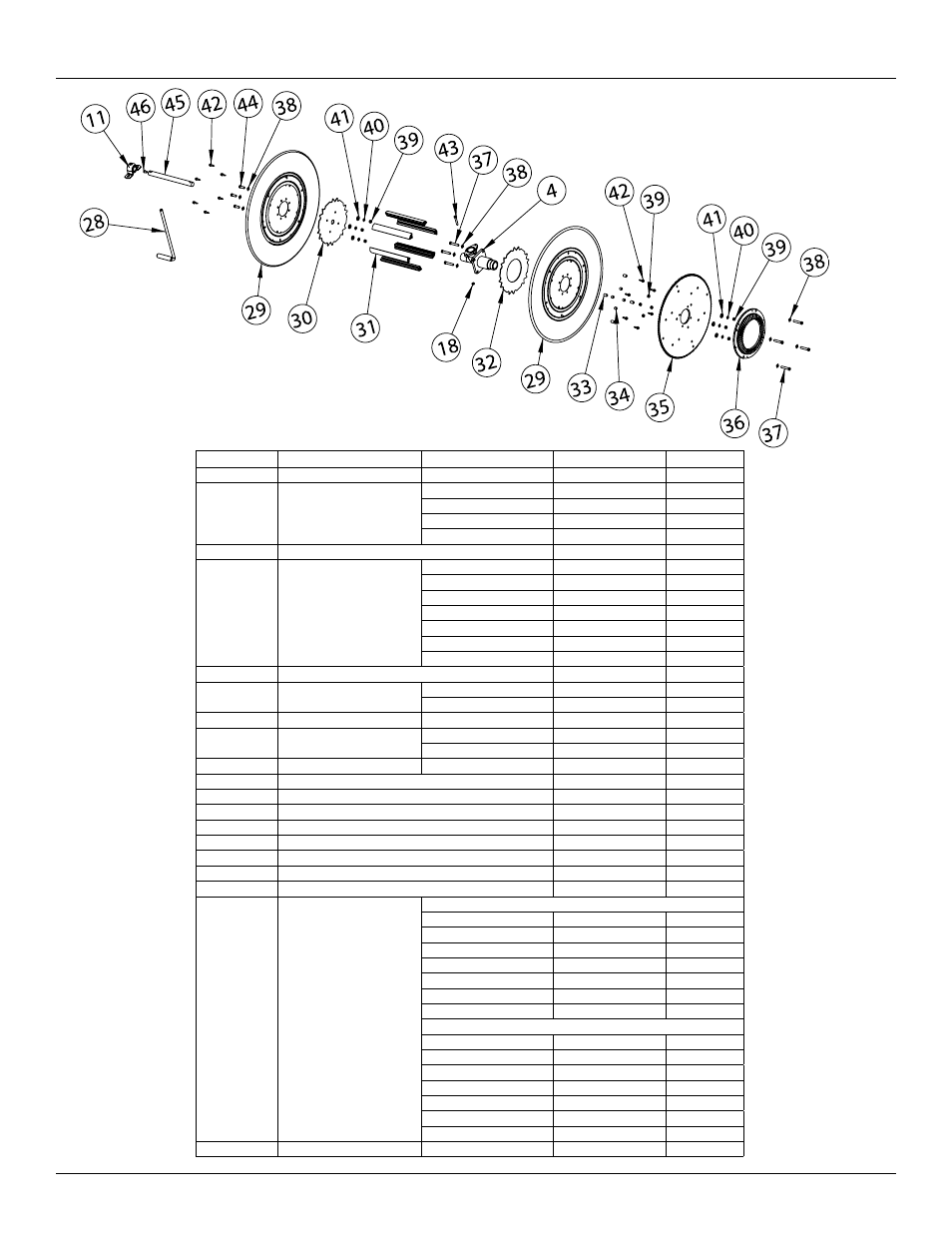

ITEM NO. DESCRIPTION MODEL NO. PART NO. QAUNTITY
28 Crank Handle Ass’y A4XXXXCG1LC S600489 1
29 Head
A4X1XXXXXCG1LC 316250-21 2
A4X2XXXXXCG1LC 316250-25 2
A4X3XXXXXCG1LC 316250-28 2
A4X4XXXXXCG1LC 316250-31 2
30 Reinforcement, Spool 262200 1
31 Spool Spacer
A4XXX08XX1LC 262060-8 6
A4XXX10XX1LC S262060-10 6
A4XXX13XX1LC 262060-13 6
A4XXX17XX1LC 262060-17 6
A4XXX19XX1LC S262060-19 6
A4XXX22XX1LC S262060-22 6
A4XXX32XX1LC 262060-32 6
32 Reinforcement, Spool 262272 1
33 Spacer
A4XXXXXEH1LC S390030-3 4
A4XXXXXDH1LC S390030-1 4
34 Spacer A4XXXXXEH1LC S390030-1 4
35 Gear
A4XXXXXEH1LC S316248-3.25-35 1
A4XXXXXDH1LC 262219-35 1
36 Bevel Gear A4XXXXXBG1LC 323358M-35 1
37 Screw, Hex Cap S347-69 12
38 Washer, Flat S350-41 8
39 Nut, Hex S338-6 16
40 Washer, Lock S339-616 12
41 Washer, Flat S350-6 12
42 Screw, Self Drilling S317-23 12
43 Screw, Hex Cap S2-59 1
44 Screw, Hex Cap S347-65 4
45 Shaft, Support
Handcrank Reels
A4XXX08DG1LC 262254-08 1
A4XXX10CG1LC 262254-10 1
A4XXX13CG1LC 262254-13 1
A4XXX17CG1LC 262254-17 1
A4XXX19CG1LC 262254-19 1
A4XXX22CG1LC 262254-22 1
A4XXX32CG1LC 262254-32 1
Motor and Bevel Drive Reels
A4XXX08XX1LC 262253-08 1
A4XXX10XX1LC S262253-10 1
A4XXX13XX1LC 262253-13 1
A4XXX17XX1LC 262253-17 1
A4XXX19XX1LC 262253-19 1
A4XXX22XX1LC S262253-22 1
A4XXX32XX1LC 262253-32 1
46 Screw, Set A4XXXXXCG1LC 300089 1
