Series 40 Hose Reels
www.reelcraft.com Page 3
Replacing the Swivel
CAUTION: Remove supply line pressure
before performing the following
procedure.
1. Remove three bolts (1) from inlet
portion of swivel. See figure 1.
2. Remove ring seal inside inlet.
3. Install new ring seal inside inlet.
4. Re-install three bolts (1) from step 1.
Replacing the Motor
CAUTION: Before replacing the motor,
remove electrical power/fluid pressure
from the reel.
1. Remove 4 bolts (1) securing motor (2)
to reel. See figure 2.
2. Remove motor from bracket.
3. Install new motor on bracket.
4. Re-install using 4 bolts (1) from step
Service Instructions
Replacing the Chain
CAUTION: Before replacing the chain,
remove electrical power/fluid pressure
from reel.
1. Loosen (do not remove) bolts (1)
securing motor (2) to reel.
2. Remove chain master link
3. Install replacement chain.
4. Adjust chain tension by moving motor
until proper tension is obtained.
Over-tensioning results in reduced
motor life. Adjust to allow between ¼”
and ½” play in chain.
Crank to Motor Conversion
It is possible to convert a manual driven
hose reel to a motor (electric, air, hydrau-
lic) driven type. Consult Reelcraft factory
for details.
Motor Relocation
It is possible to relocate motor to opposite
side/end of hose reel. Consult Reelcraft
factory for details.
Series
Fluid
Path
Flange Spool
Width
Spool
Diameter
Drive
Type
Drive
Position
Pressure Material
4 2 3 12 1 CG 1 L C
1 = 1” 1 = 21” 8”- 32” 1 = 11 1/4” CG = Handbook 1 = Back/Left L = 600PSI C = Carbon
2 = 1 1/4” 2 = 25” 2 = 15” BG = Bevel Crank 2 = Front/Left A = Aluminum
3 = 1 1/2” 3 = 28” DH = Gear Driven
3 = Back/
Right
D = Clear Base
4 = 31” EH = Chain Driven 4 = Front/Back

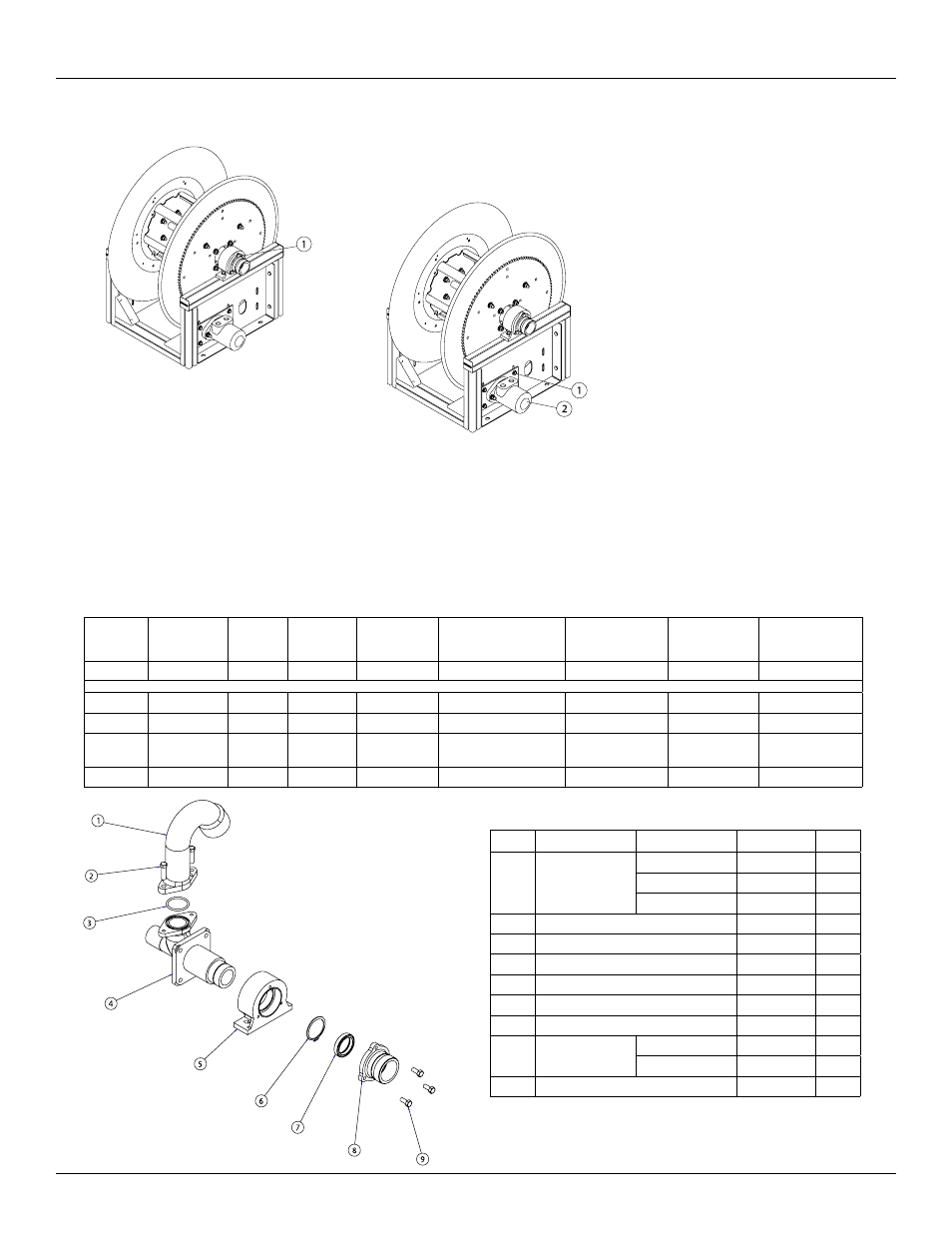

Figure 1
Figure 2
ITEM# DESCRIPTION FOR MODEL: PART NO. QTY
1 Gooseneck
A41XXXXXX1LC S261694-1 1
A42XXXXXX1LC S261694-2 1
A43XXXXXX1LC S261694-3 1
2 Screw, Hex Cap S347-66 2
3 O-ring S211-224 1
4 Spindle, Large Frame S262192 1
5 Bearing Housing Assembly S602240 1
6 Snap Ring S140-45 1
7 Face Seal Assembly S600947-1 1
8 Inlet
Straight S261692 1
90° S261700 1
9 Screw, Hex Cap S2-53 19
