Ramsey Winch H-930r DOW-LOK w/Air Shifter for Grant Wrecker - Manual (Page 15)

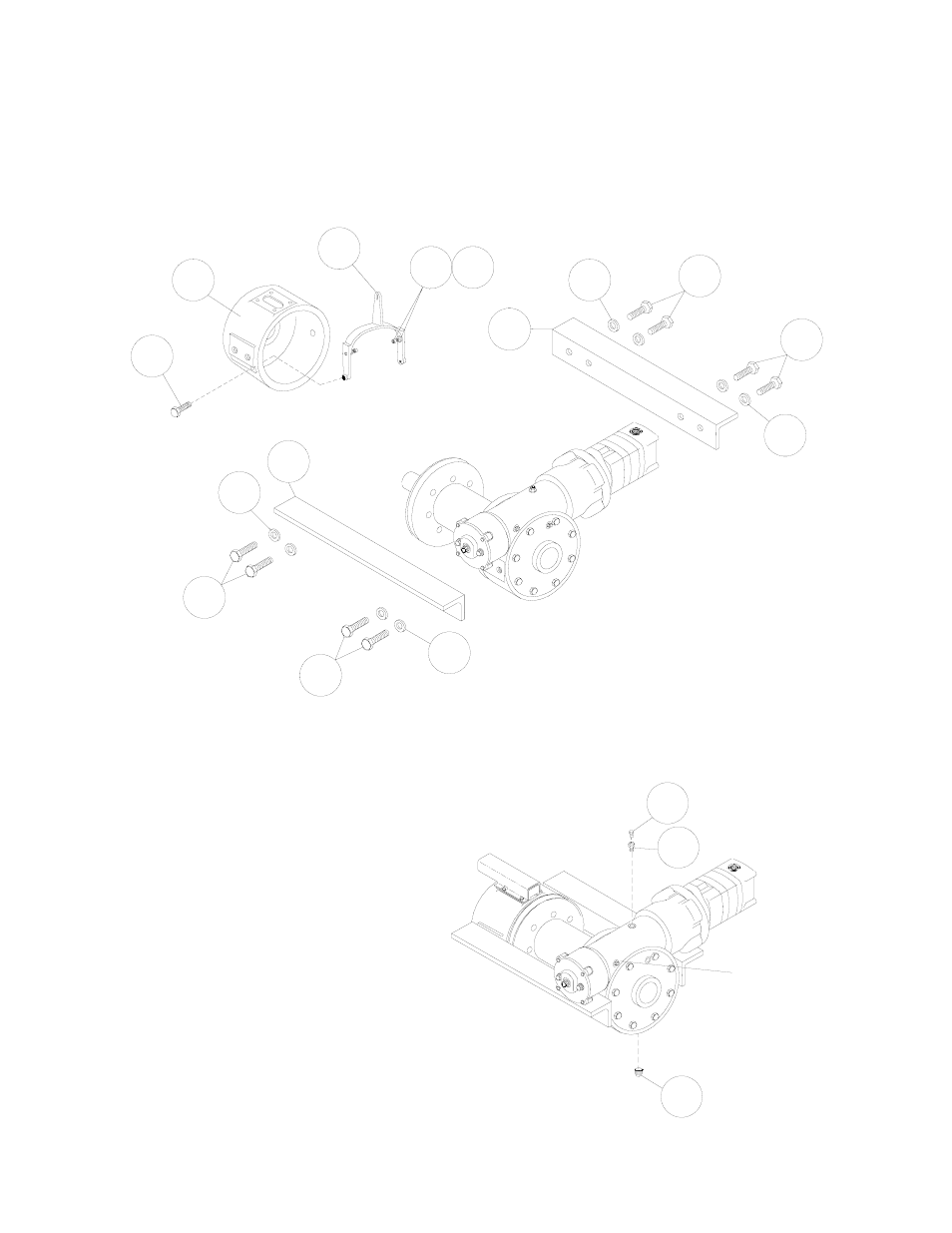

19. Set the yoke (item #30) so that the screw heads (item #52) engage the external groove in the locking ring.
Push the clutch housing (item #17) onto the drum shaft and latch the shifter assembly in the engaged “IN” posi-
tion. Insert the (2) capscrews (item #47) and securely tighten.
Apply Loc-tite PST #567 thread sealer to capscrews (item #49) to be installed in gear housing. Attach mounting
angles (items #3 & 4) to winch assembly using (4) capscrews (item #48) and lockwashers (item #65), at
clutch housing, and (4) capscrews (item #49) and lockwashers (item #65) at gear housing. Tighten capscrews
to 500 ft-lbs (678 Nm) each.
20. Apply Loc-tite PST #567 thread sealer to the
pipe plug (item #78). Insert plug into bottom of
gear housing. Remove reducer and relief fitting
(items #72 and #77) from top of gear housing.
Pour 10 1/4 pints of SAE 140 EP gear oil into
hole. Apply Loc-tite PST #567 thread sealer to
the reducer and relief fitting and replace. Oil level
can be checked at oil level plug.
48
65
47
4
65
65
30
17
49
65
49
3
57 52
48
13
Oil Level Plug
78
77
72
