15 OM-914225-0209-B
DISASSEMBLY OF OUTPUT CARRIER
Carrier assemblies may be purchased as a complete assembly (see pg. 20) or parts may be
purchased individually (see below). If purchasing individual parts, it will be necessary to
disassemble the gear carrier as outlined below.
1. Carefully drive roll pin #305 into carrier pin #304 so that it is captured within carrier pin #304
but not touching the opposite side of the output carrier #301.
2. Tap carrier pin #304 to remove it from the output carrier #301.
3. Slide the planet gear #301and the (2) thrust washers #302 from the carrier #306. Bearings
#305 may then be pressed out.
4. Remove the roll pin #305 from the carrier pin #304.
5. Repeat steps 1-4 for remaining gears.
6. Remove snap ring #309 from output shaft # 308 and remove output shaft #308.

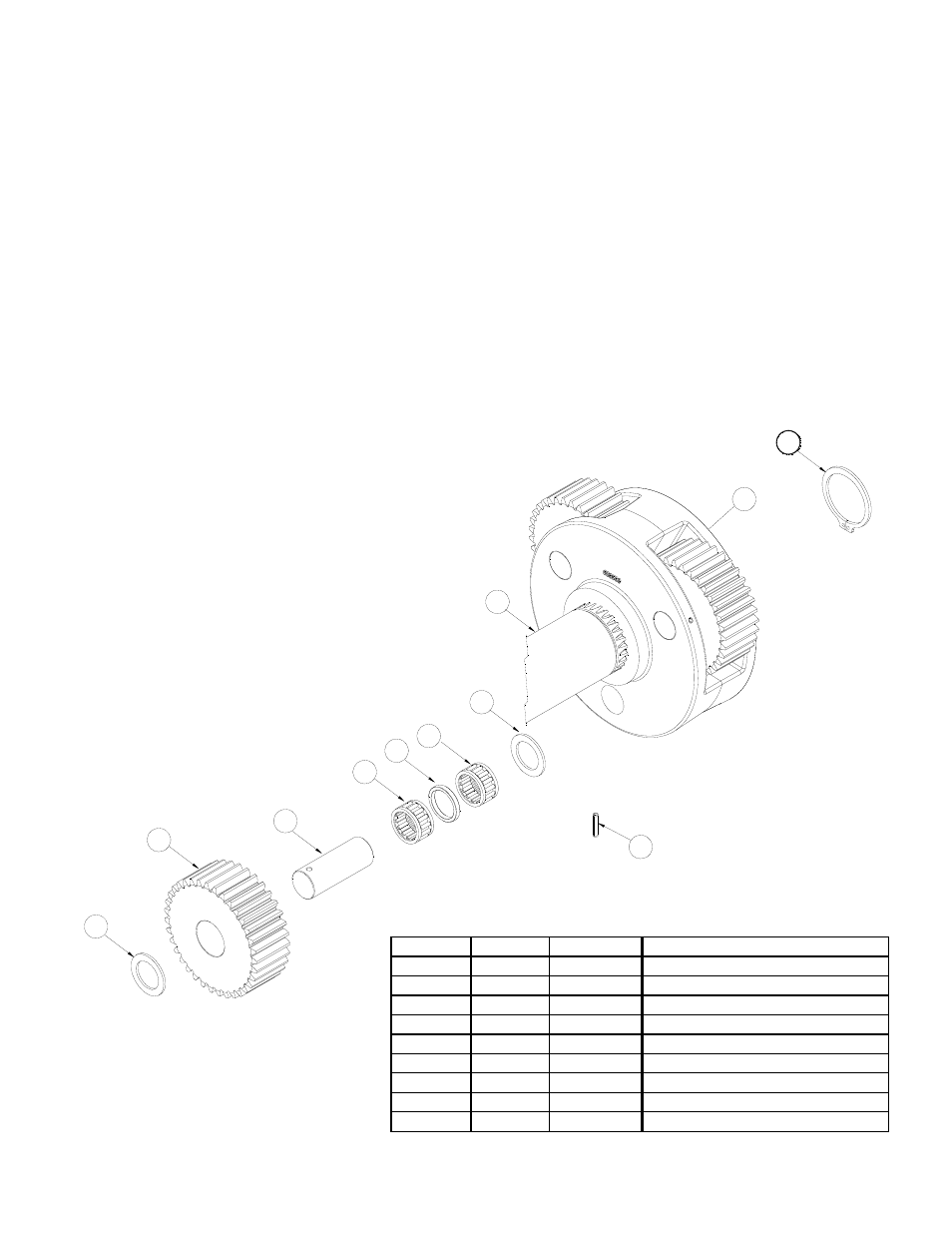

OUTPUT CARRIER
301
303
306
304
302
307
306
303
305
308
309
ITEM # QTY PART # DESCRIPTION
301 1 317025 OUTPUT CARRIER
302 3 334224 PLANET GEAR
303 6 518073 THRUST WASHER
304 3 470129 CARRIER PIN
305 3 470103 ROLL PIN 1/4 DIA X 1 1/4 LG
306 6 402143 BEARING-NEEDLE ROLLER
307 3 362316 SPACER
308 1 357534 OUTPUT SHAFT
309 1 490067 SNAP RING
