Ramsey Winch 20K POWERMASTER - Manual (Page 15)

13 OM-914209-0508-A

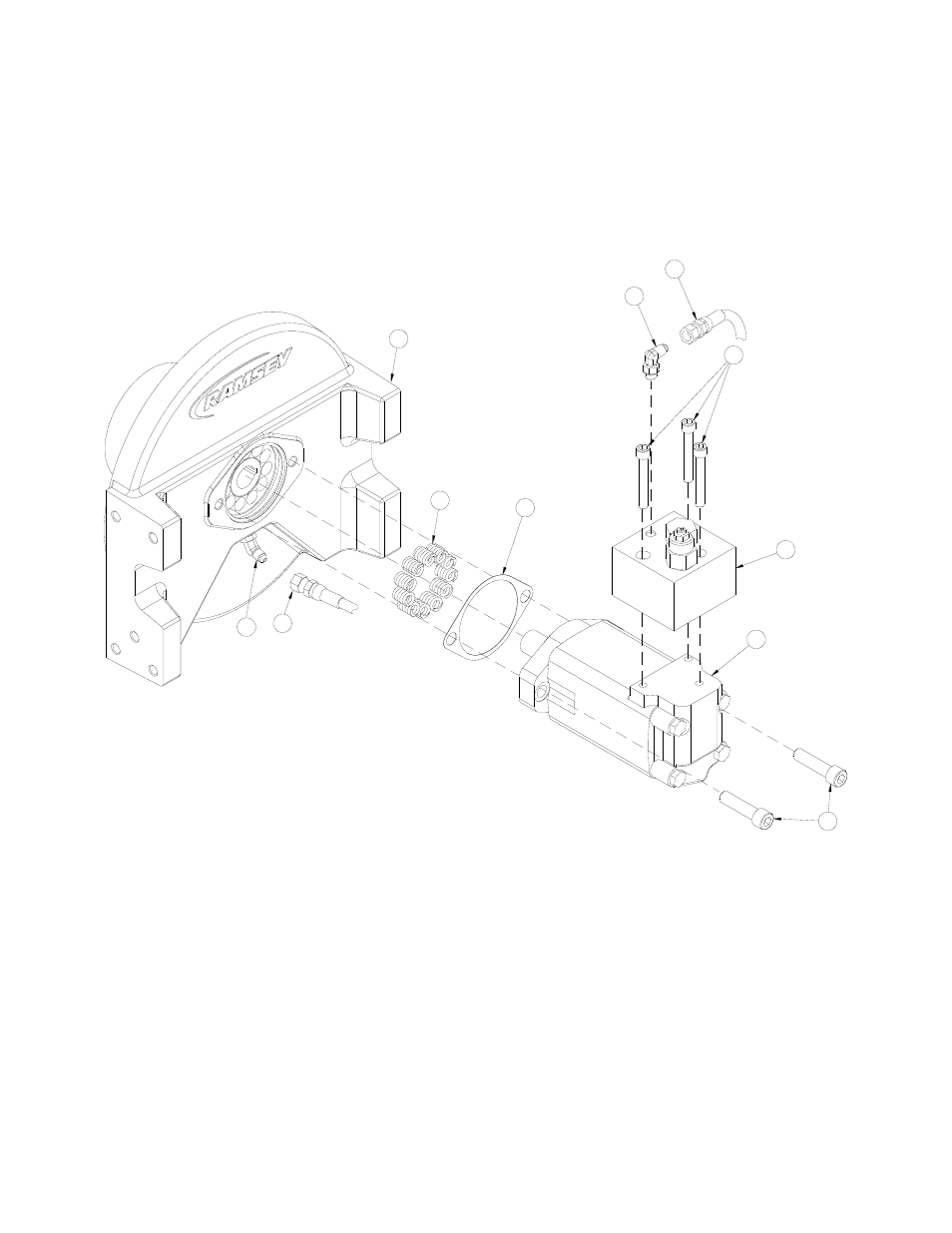

11. To remove motor #45 from motor end bearing #3, first detach hydraulic brake release hose
assembly #70 from elbow fitting #40. Loosen (2) ½-13 capscrews #32. Remove motor gasket
#42, and (11) brake springs #69.
To remove motor control valve #71, loosen (3) 3/8-16 NC capscrews #31, lift motor control
valve #71 from motor #45.
Note: Do not run winch with hydraulic brake release hose assembly disconnected.
TORQUE CHART
SIZE TORQUE VALUE
1/4-20 76 IN LBS
3/4-16 223 FT LBS
3/8-16 23 FT LBS
1/2-13 57 FT LBS
SIZE TORQUE VALUE
1/2-13 80 FT LBS
5/8-11 159 FT LBS
GRADE 5
GRADE 8
70
41
70
3
32
45
71
69
42
31
40
TO ITEM 40
TO ITEM 41
