16. Remove the clutch cylinder #407 by removing the (2) cotter keys #404 and (2) pins #406 from
either end of the air cylinder #407.
17. The clutch cylinder support bracket #9 can be removed by removing the four bolts #35 and
nuts #41 attaching it to the mounting angles.
18. Remove the clutch yoke #29 by removing center pivot bolt #34 and nut #41.
41
35
41
34
35
41
29*
1
204
206
207
206
209 204
202
9

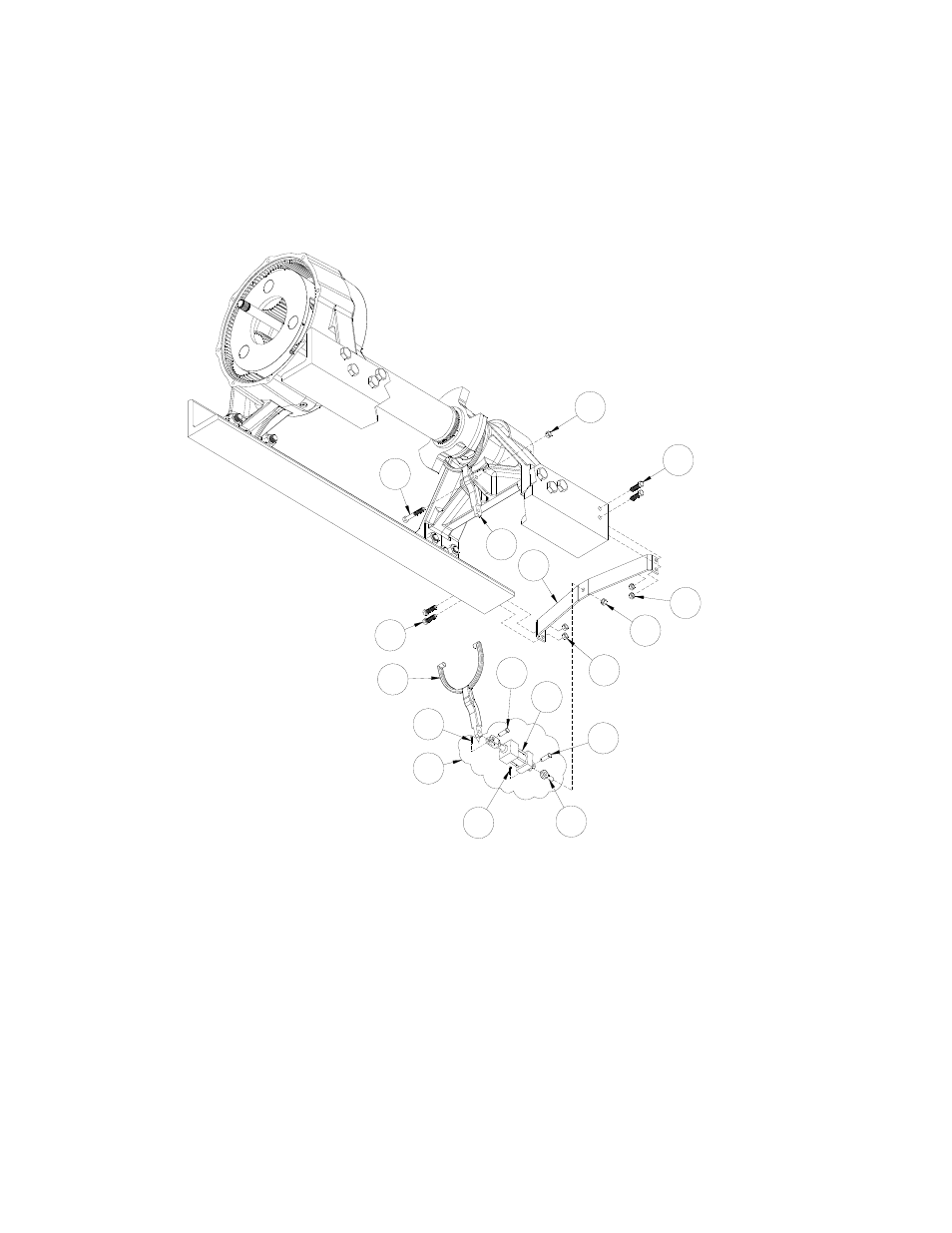

*CLUTCH YOKE #29 SHOWN REMOVED
AND PARTIALLY INSTALLED
FOR CLARITY
29*
10
